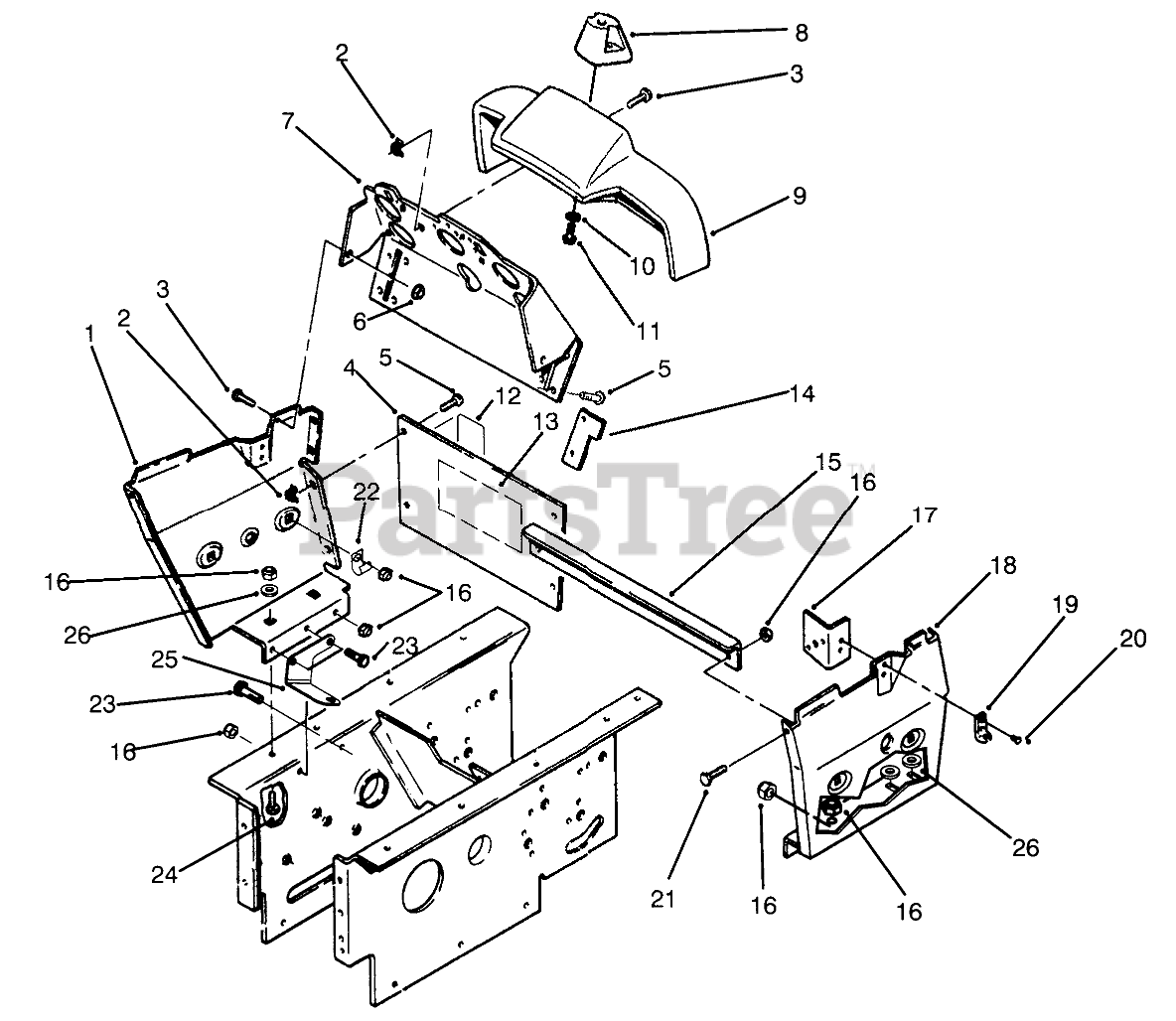

73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) DASH AND SIDE PANELS ASSEMBLY Parts Diagram

Garden Tractor

DASH AND SIDE PANELS ASSEMBLY Parts Diagram

  • Title

1

Toro 113962

Panel-RH
(Superseded to 113962-03)

$96.99

$

In Stock, only 1 left!

0

2

Toro 32115-5

NUT-RETAINED

$6.49

$

Usually ships in 3-6 days

0

3

Toro 910839

Screw
(Superseded to 9108392)

$

$

Not available

4

Toro 92-7295

Plate-Hoodstand, Rear (Incl. Ref. #13)

$

$

Not available

5

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

6

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

7

Toro 117267

ASM-Panel
(Superseded to 117267-03)

$

$

Not available

8

Toro 118410

COVER-STEERING SHAFT

$

$

Not available

9

Toro 115620

COVER-CONSOLE 5 GAGE

$183.99

$

Usually ships in 3-6 days

0

10

Toro 92-0270

SWIVEL JACK

$

$

Currently unavailable

11

Toro 118780

SCREW-#6 PLASTITE

$

$

Not available

12

Toro 111960

DECAL PTO CLUTCH

$14.99

$

Usually ships in 3-6 days

0

13

Toro 92-9838

DECAL - DANGER

$

$

Not available

14

Toro 114641

STOP-CHOKE

$

$

Not available

15

Toro 113932

STIFFENER-PANEL B

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

17

Toro 114628

BRACKET-SWITCH SU

$

$

Not available

18

Toro 79-4890

Panel-LH
(Superseded to 79-4890-03)

$

$

Not available

19

Toro 117343

KEEPER-LATCH

$4.49

$

In Stock, only 2 left!

0

20

Toro 117433

RIVET-POP

$

$

Not available

21

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

25

Toro 78-1540

Bracket-Control
(Superseded to 78-1540-03)

$

$

Not available

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
