73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) BRAKE PEDAL & LINKAGE ASSEMBLY Parts Diagram

Garden Tractor

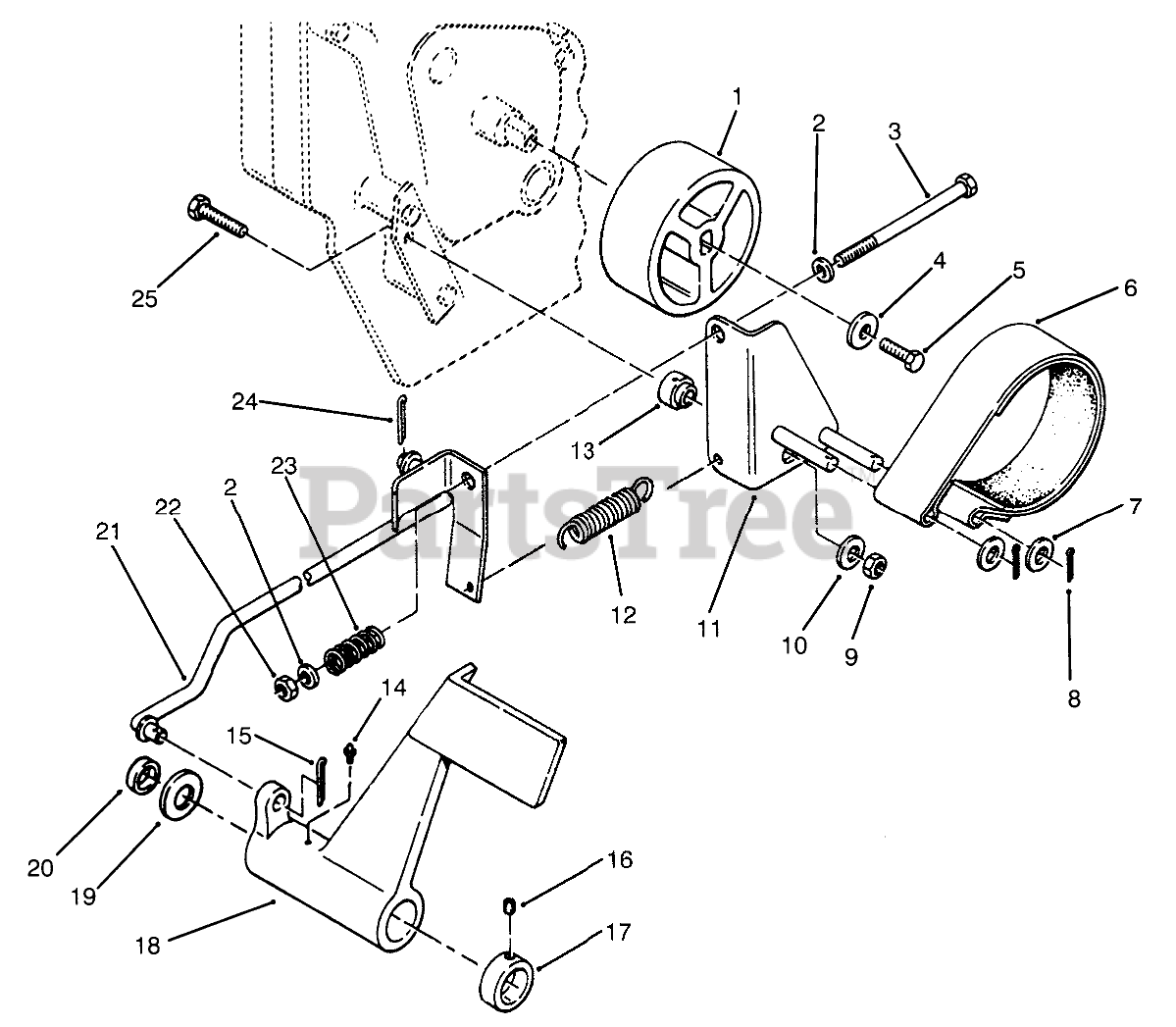

BRAKE PEDAL & LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 106719

DRUM-BRAKE

$109.99

$

Usually ships in 3-6 days

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

4

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

5

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

6

Toro 109371

ASSY-BRAKE BAND

$174.99

$

Usually ships in 3-6 days

0

7

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

10

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

11

Toro 78-7740

WA-BRAKE PIVOT B

$

$

Not available

12

Toro 103125

SPRING

$9.99

$

In Stock, only 3 left!

0

13

Toro 109356

BUSHING-BRAKE PIVOT

$

$

Not available

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

16

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

17

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

18

Toro 79-1350

Pedal-Brake
(Superseded to 94-3707-01)

$

$

Not available

19

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

20

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

21

Toro 109372

ASY BRAK RD WAR

$

$

Not available

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

23

Toro 108680

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

24

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
