73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) BLOWER HOUSING AND GOVERNOR Parts Diagram

Garden Tractor

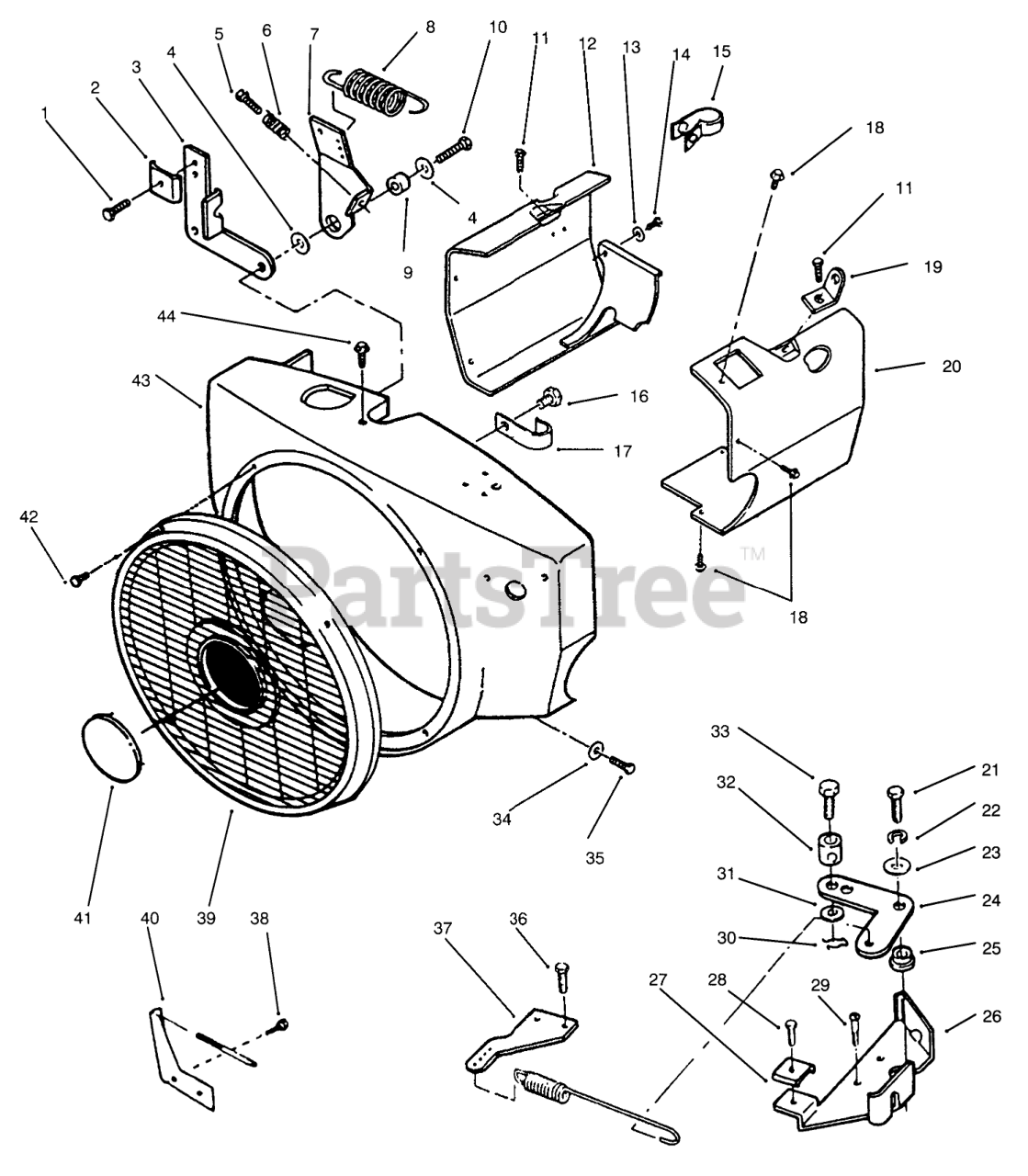

BLOWER HOUSING AND GOVERNOR Parts Diagram

  • Title
1

Toro 72-3900

SCREW-TAPPING

$

$

Not available

2

$

$

Not available

3

Toro NN10508

Bracket
(Superseded to 57-9150)

$

$

Not available

4

Toro 59-0830

WASHER-FLAT

$

$

Not available

5

Toro 59-1030

SCREW-TAP

$

$

Not available

6

Toro 59-0430

SPRING

$

$

Not available

7

Toro 79-6370

GOVERNOR-CONT ARM

$

$

Not available

8

Toro 57-9100

SPRING

$

$

Not available

9

Toro 57-9120

BUSHING

$

$

Not available

11

Toro 82-1600

SCREW-HWH

$

$

Not available

12

Toro 92-0920

LH AIR CYLINDER HSG

$

$

Not available

13

Toro 59-0830

WASHER-FLAT

$

$

Not available

14

Toro 59-0980

SCREW-HH

$

$

Not available

15

Toro 59-0580

WIRE CLAMP

$

$

Not available

16

Toro 82-1540

SCREW-HWH

$

$

Not available

17

Toro 71-6220

CLIP-WIRE

$

$

Not available

18

Toro 59-1080

SCREW-HWH

$

$

Not available

19

Toro 71-6080

BRACKET-LIFTING

$

$

Not available

20

Toro 92-0921

RH AIR CYLINDER HSG

$

$

Not available

21

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

22

Toro 82-1620

WASHER-LOCK, SPRING

$

$

Not available

23

Toro 59-0830

WASHER-FLAT

$

$

Not available

24

Toro 201256

Governor Control Arm
(Superseded to 79-6410)

$

$

Not available

25

Toro 79-6400

BUSHING-GOV CONTROL

$

$

Not available

26

Toro 79-6390

BRKT-GOVERNOR CONTRL

$

$

Not available

27

$

$

Not available

28

Toro 59-1010

SCREW-HWH

$

$

Not available

29

Toro 201327

HEX HD CAP SCREW

$

$

Not available

30

Toro 59-0720

PIN-COTTER

$

$

Not available

31

Washer

$

$

Not available

32

Toro 57-9120

BUSHING

$

$

Not available

33

Toro 72-3890

SCREW

$

$

Not available

34

Toro 59-0820

WASHER-FLAT

$

$

Not available

35

Toro 59-0980

SCREW-HH

$

$

Not available

36

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

37

Toro 79-6420

ADAPTER-GOV ARM

$

$

Not available

38

Toro 59-1100

SCREW-HWH

$

$

Not available

39

Toro 82-0620

GUARD-STATIONARY

$

$

Not available

40

Toro NN10832

BRACKET

$

$

Not available

41

Toro 118530

NAME-PLATE TORO LOGO

$16.99

$

Usually ships in 3-6 days

0

42

Toro 82-1590

SCREW-PAN HEAD

$

$

Not available

43

Toro NN10769

BLOWER-HOUSING

$

$

Not available

44

Toro 59-0970

HEX HD CAPSCREW

$

$

Not available
