73520 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000177) (1995) BELT GUARD AND FOOTREST ASSEMBLY Parts Diagram

Garden Tractor

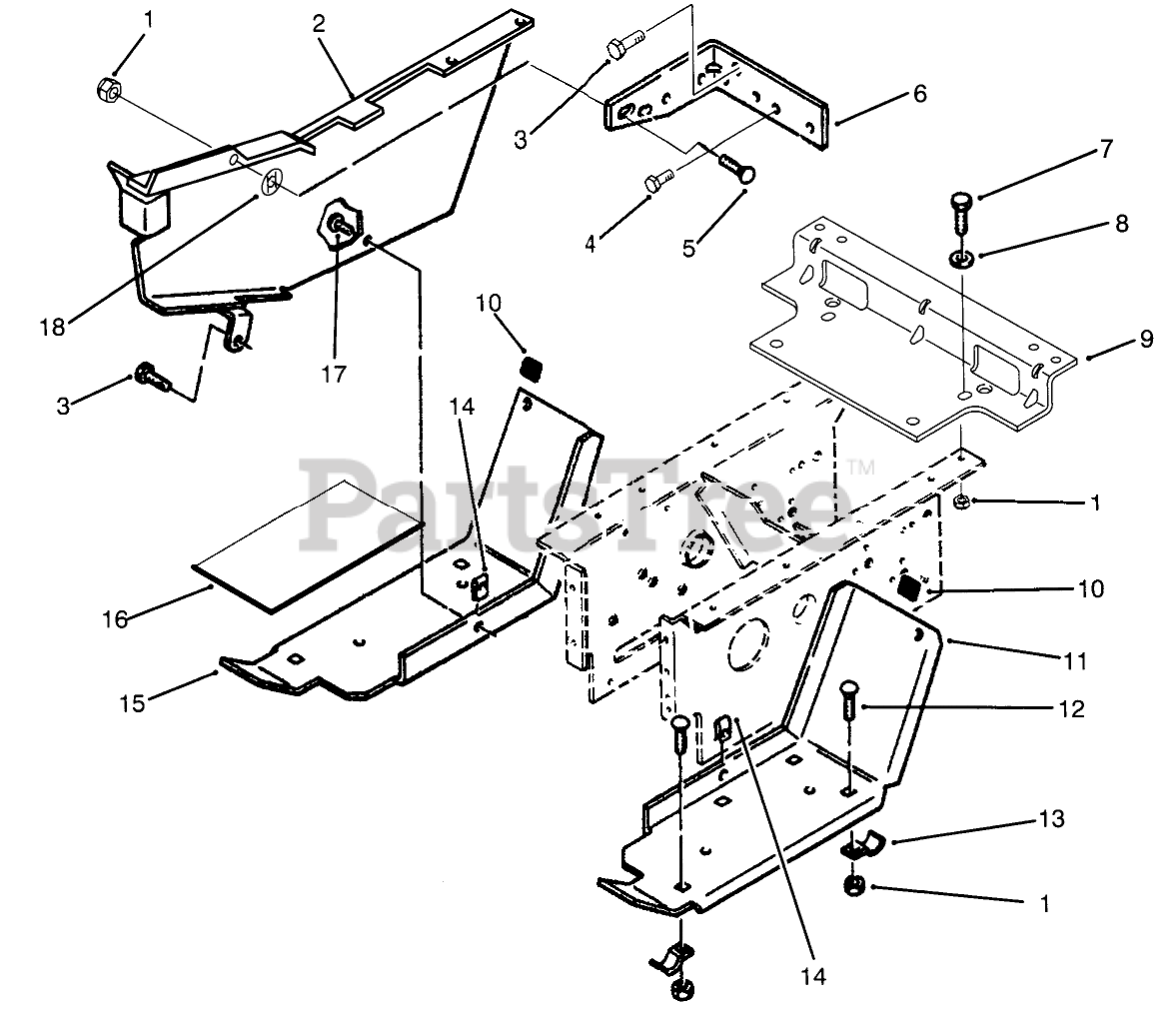

BELT GUARD AND FOOTREST ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 92-1527

GUARD - BELT WA R

$

$

Not available

3

Toro 926694

SCREW

$

$

Not available

4

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 109554

BRACKET-BELTB

$

$

Not available

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 113023

Bracket-Fender

$

$

Not available

10

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

11

Toro 106223

FOOTREST LH R

$

$

Not available

12

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

13

Toro 7456

BRACKET

$

$

Not available

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

16

Toro 110636

PAD FOOTREST

$

$

Not available

17

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

18

Toro 108457

NUT-PUSH

$

$

Not available
