73520 (520-H) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) THROTTLE, CHOKE AND FUEL CONTROLS Parts Diagram

Garden Tractor

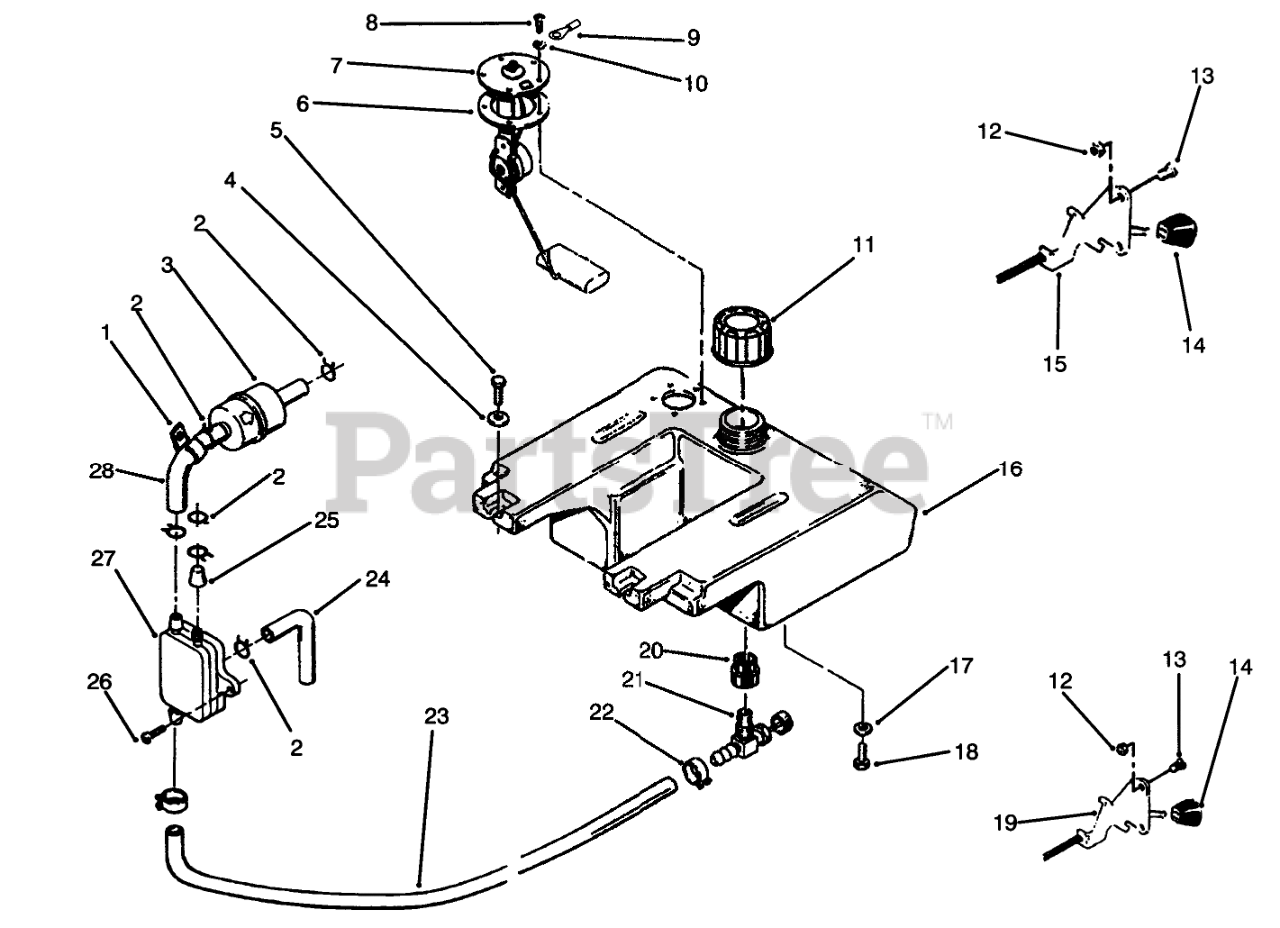

THROTTLE, CHOKE AND FUEL CONTROLS Parts Diagram

  • Title
1

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

2

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

3

Toro 71-5960

FILTER-FUEL

$32.99

$

In Stock, Qty 7

0

4

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

5

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

6

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 2 left!

0

7

Toro 113358

SENDER-FUEL LEVEL

$

$

Not available

8

Toro 910807

Screw
(Superseded to 3250-31)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 79-3180

TERMINAL-GROUND

$

$

Not available

10

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

11

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

12

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

13

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

14

$5.99

$

In Stock, only 2 left!

0

15

Toro 115392

CONTROL-THROTTLE

$112.99

$

In Stock, only 3 left!

0

16

Toro 114012

Tank-Fuel (Incl. Ref. #20-21)

$

$

Not available

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 9

0

19

Toro 114027

CONTROL-CHOKE

$

$

Not available

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

21

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

22

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

23

Toro 110521

FUEL HOSE 75" OF 6554

$

$

Not available

24

Toro NN10302

Hose
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

25

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

26

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

27

Toro 57-9080

PUMP-FUEL

$

$

Not available

28

Toro 92-5868

FUEL HOSE

$

$

Not available

Toro 79-4100

CAP-RUBBER

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0
