73520 (520-H) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) STARTER Parts Diagram

Garden Tractor

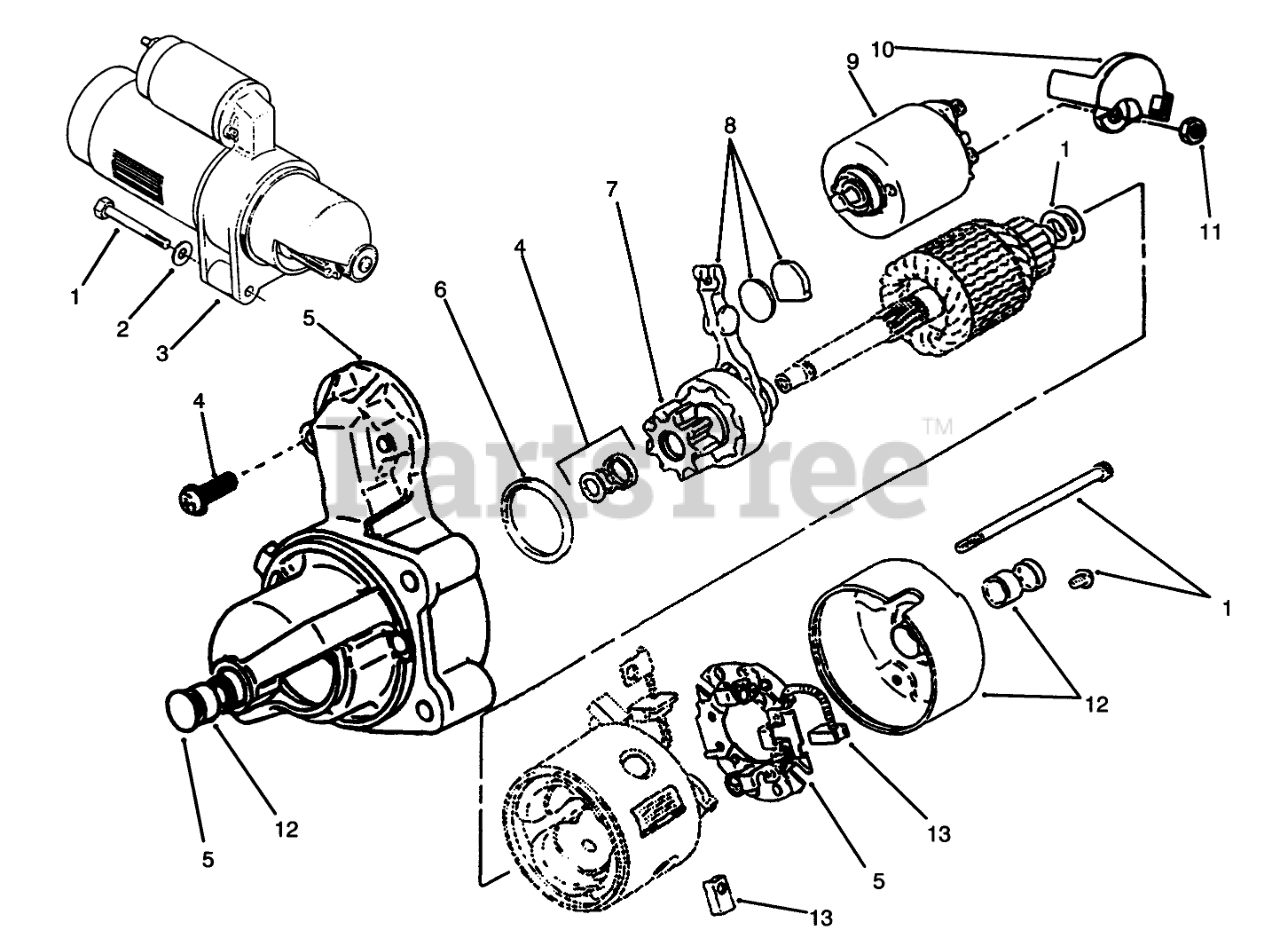

STARTER Parts Diagram

  • Title

1

Toro 79-6580

SCREW

$

$

Not available

2

Toro 57-9770

WASHER

$

$

Not available

3

Toro 71-6040

STARTER
(Superseded to 112-7023)

$441.99

$

Usually ships in 3-6 days

0

4

Toro 62-2760

Kit-Hardware, Starter (Includes (2) Solenoid Mtg Screws, 2 Thru Bolts, Armature Shims, Pinion Collar, & Retaining Ring)

$

$

Not available

5

Toro NN10929

Kit-Mounting Bracket (Incl. Ref. #13)

$528.99

$

Usually ships in 3-6 days

0

6

Toro NN10886

DUST-SEAL KIT

$

$

Not available

7

Toro 72-3940

Assembly-Clutch, Starter (Includes Pinion Gear)

$

$

Not available

8

Toro 62-2770

Kit-Shift Lever, Starter (Includes Lever, Wear Plate & Rubber Plug)

$

$

Not available

9

Toro 72-3930

Kit-Solenoid, Starter (Includes Solenoid & Spring Plunger)

$

$

Not available

10

Toro NN10930

Cap-Starter Solenoid
(Superseded to 82-1720)

$

$

Not available

11

Toro 82-1350

WASHER-FLAT

$

$

Not available

12

Toro 62-2760

Kit-Bushing, Starter (Incl. Rear Cap with Bushing & Front Bushing)

$

$

Not available

13

Toro 62-2740

Kit-Brush, Starter (Includes (2) Negative & (1)Positive Brushes)

$

$

Not available
