73520 (520-H) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

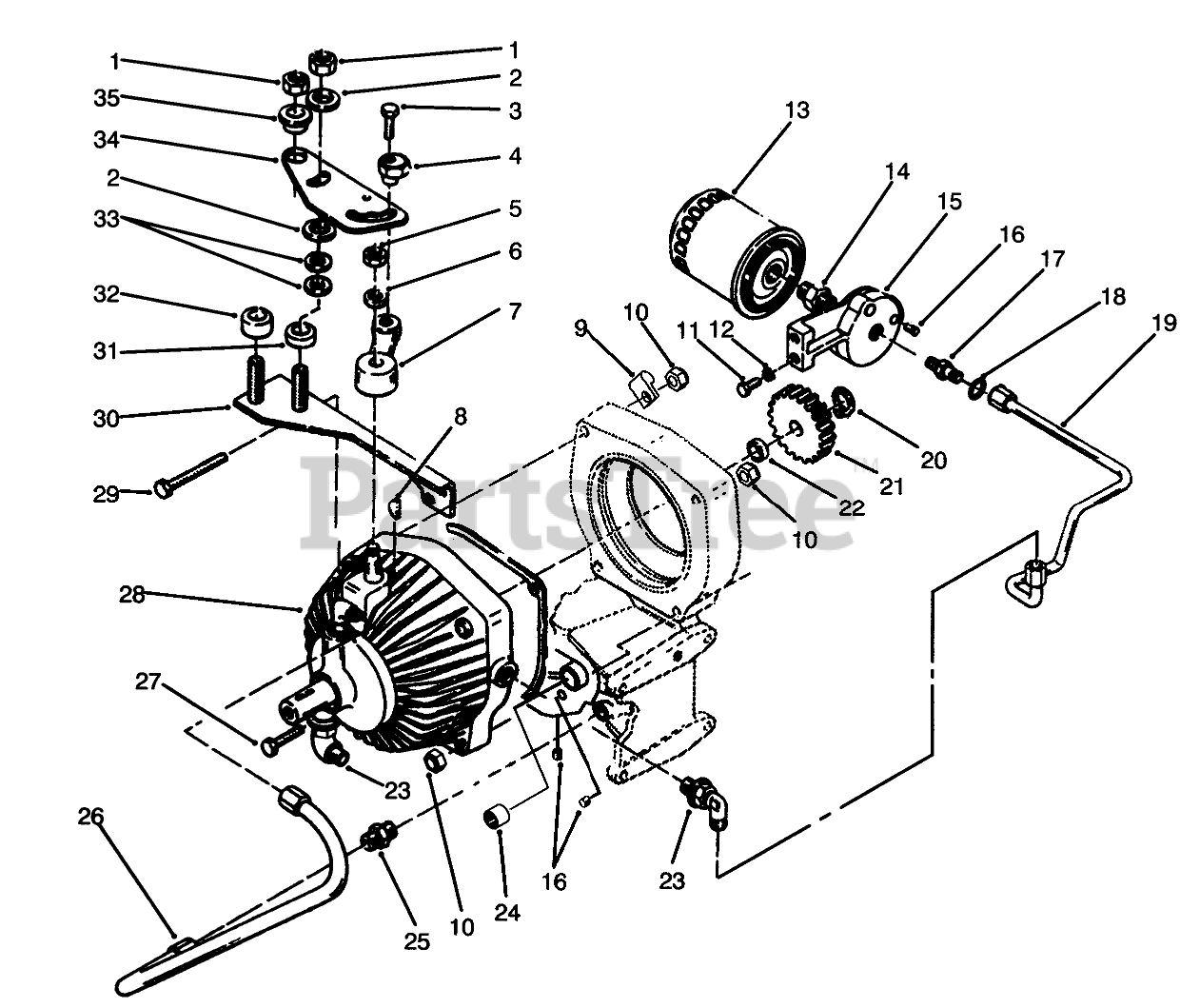

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 108881

NUT

$6.49

$

In Stock, Qty 13

0

2

Toro 100305

FRICTION WASHER

$6.49

$

In Stock, only 2 left!

0

3

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

4

Toro 106661

CAM

$

$

Not available

5

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 108325

ARM-SPEED CONTROLB
(Superseded to 108325-03)

$82.99

$

Usually ships in 3-6 days

0

8

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

9

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 79-5270

OIL FILTER ASM

$20.99

$

In Stock, Qty 6

0

14

Toro 5991

FITTING

$

$

Not available

15

Toro 108323

BASE-FILTER

$

$

Not available

16

Toro 281-10

PLUG

$19.99

$

Usually ships in 3-6 days

0

17

Toro 102628

FITTING

$

$

Not available

18

Toro 973370

0-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

19

Toro 79-5020

ASS'Y-TUBE FILTER

$

$

Not available

20

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, Qty 18

0

21

Toro 109751

GEAR 20 TEETH DRIVE

$

$

Not available

22

Toro 108366

SPACER GEAR

$

$

Not available

23

Toro 108365

ELBOW
(Superseded to 103-1802)

$25.99

$

In Stock, only 2 left!

0

24

Toro 1532

BEARING-NEEDLE

$63.99

$

In Stock, only 3 left!

0

25

Toro 108364

FITTING-TUBE

$

$

Not available

26

Toro 111217

ASSY-TUBE SUCTION

$

$

Not available

27

Toro 908040

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

28

Toro 108368

Pump & Motor
(Superseded to 92-9848)

$

$

Not available

29

Toro 323-25

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

30

Toro 108329

ASSY-PLATE B

$

$

Not available

31

Toro 108327

SPACER-FRICTION

$2.99

$

Usually ships in 3-6 days

0

32

Toro 108326

SPACER-PIVOT

$24.99

$

Usually ships in 3-6 days

0

33

Toro 100365

WASHER-SPRING DISC

$

$

Not available

34

Toro 109333

ASM-REAR LIFT R
(Superseded to 109333-01)

$

$

Not available

35

Toro 100309

CAM-SPACER

$10.99

$

In Stock, only 1 left!

0
