73520 (520-H) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) HYDRAULIC SYSTEM Parts Diagram

Garden Tractor

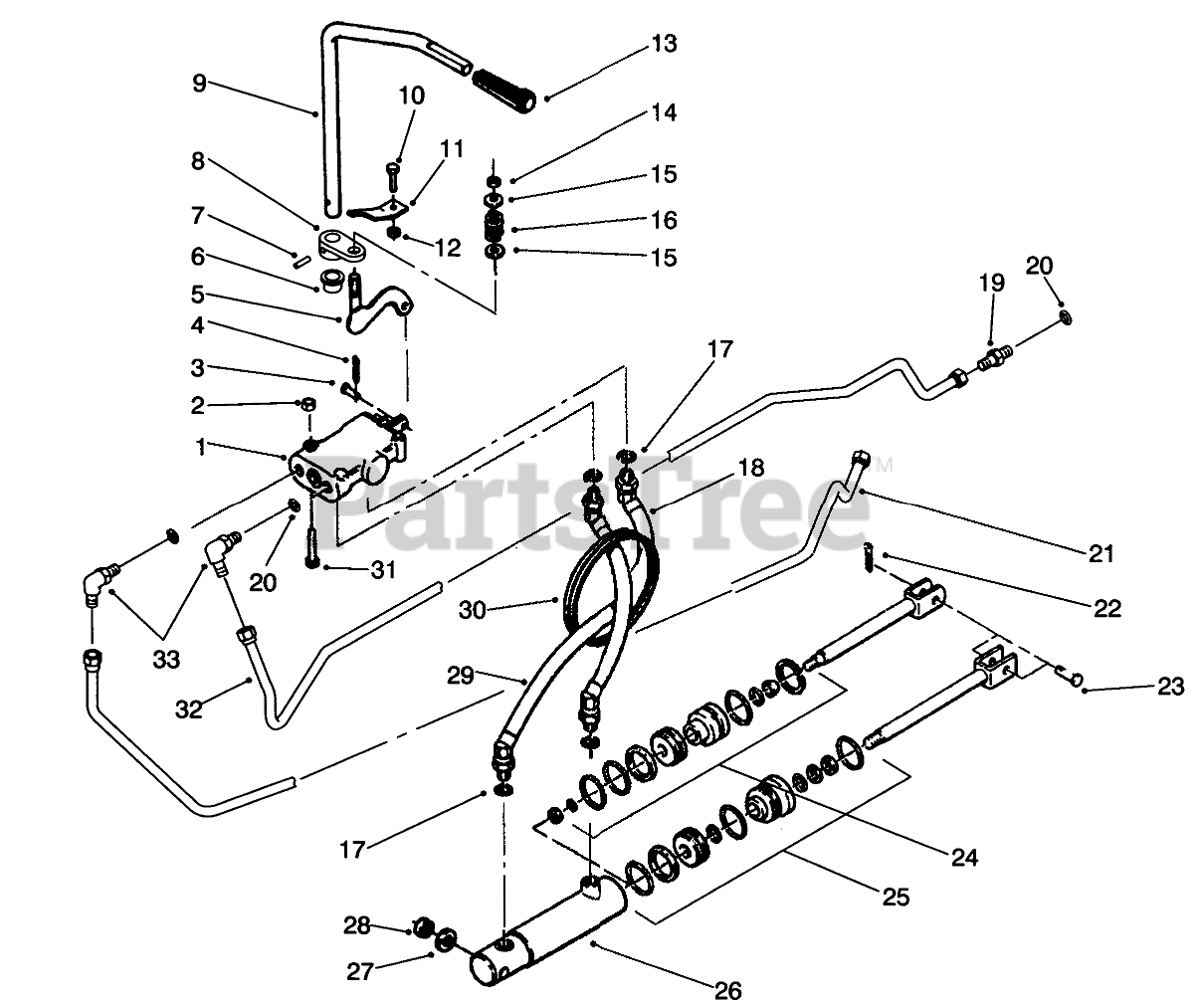

HYDRAULIC SYSTEM Parts Diagram

  • Title
1

Toro 114000

Valve- Hydraulic (Incl.Ref.#3 -4)

$

$

Not available

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

4

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

5

Toro 78-5640

WLDMT-LIFT BAR

$

$

Not available

6

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 12

0

7

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

8

Toro 116302

ARM-CONTROL

$

$

Not available

9

Toro 117328

ROD-LIFT CONTROL

$

$

Not available

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 116305

BRACKET-CONTROL R B

$7.99

$

Usually ships in 3-6 days

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 116634

KNOB-HYDRAULIC LIFT
(Superseded to 94-6694)

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

17

Toro 973310

O RING

$5.99

$

In Stock, only 1 left!

0

18

Toro 110125

Hose ASM-Hydraulic
(Superseded to 99-5373)

$188.99

$

Usually ships in 3-6 days

0

19

Toro 102628

Fitting-Straight Adapter (Incl. Ref. #20)

$

$

Not available

20

Toro 973370

0-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

21

Toro 86-9280

TUBE-HYD PRESSURE

$138.99

$

Usually ships in 3-6 days

0

22

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Toro 932997

CLEVIS PIN

$

$

Not available

24

Toro 101699

S/A O-RING&GASKET AS

$159.99

$

Usually ships in 3-6 days

0

25

Toro 109088

S/A 108872 HYD CYL

$

$

Not available

26

Toro 119340

Cylinder-Hydraulic (Incl. Ref.#24-25)

$

$

Not available

27

Toro 920232

WASHER
(Superseded to 9202324)

$1.99

$

In Stock, only 3 left!

0

28

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

29

Toro 110124

Hose ASM-Hydraulic
(Superseded to 99-5372)

$188.99

$

Usually ships in 3-6 days

0

30

Toro 106267

GROMMET

$

$

Not available

31

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 86-9290

TUBE-HYD RETURN

$

$

Not available

33

Toro 108365

Fitting-90deg. (Incl. Ref. #20)
(Superseded to 103-1802)

$23.99

$

In Stock, only 2 left!

0

Toro 109081

S/A 110068 VALVE

Note: Not illustrated

$

$

Not available

Toro 100571

PLASTIC TIE

Note: Not illustrated

$

$

Not available
