73520 (520-H) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) ENGINE AND EXHAUST Parts Diagram

Garden Tractor

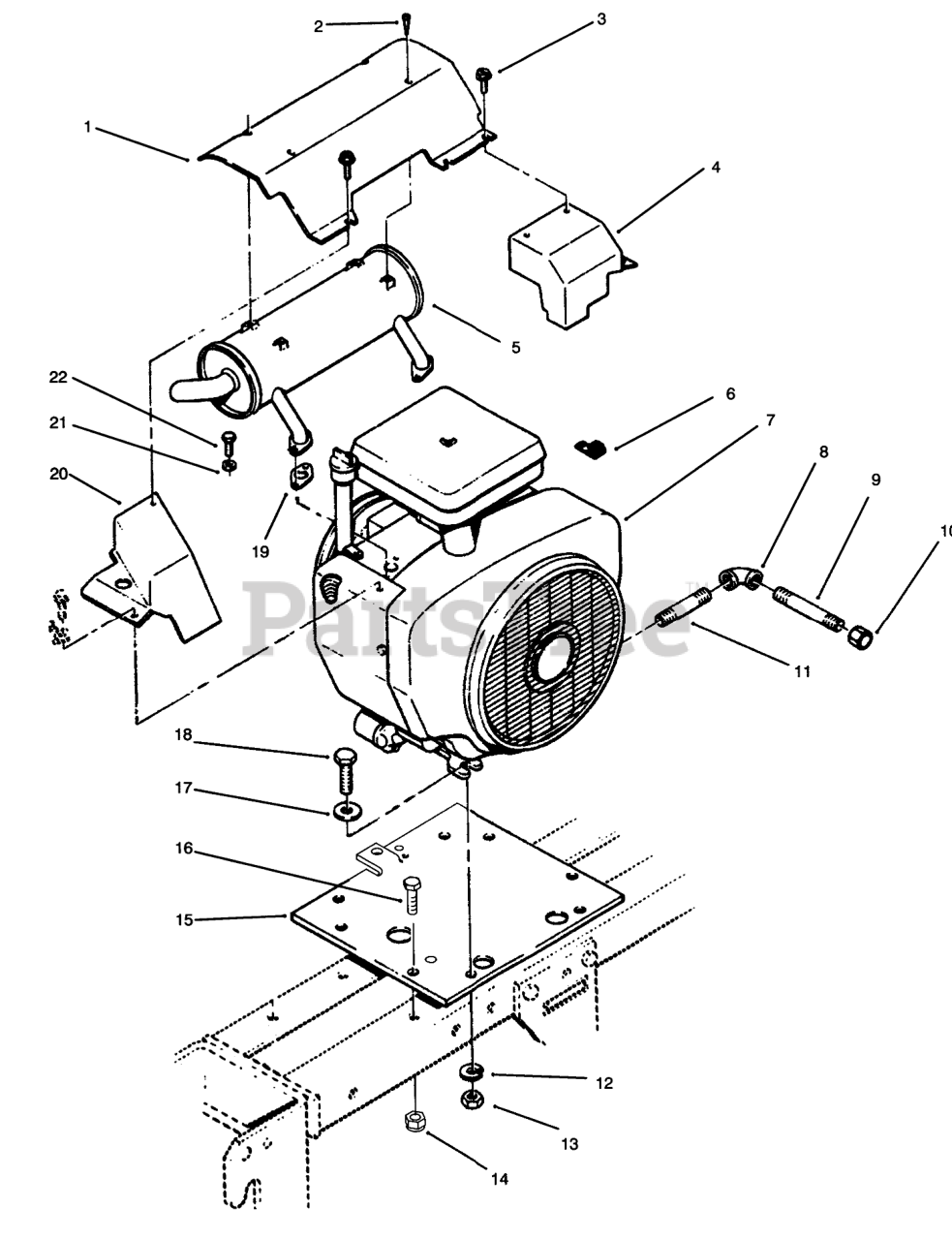

ENGINE AND EXHAUST Parts Diagram

  • Title

1

Toro 114217

Air Deflector
(Superseded to 94-1803)

$

$

Not available

2

Toro 910331

Screw
(Superseded to 9103312)

$2.49

$

In Stock, Qty 6

0

3

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

4

Toro 114216

RH Exhaust Cover
(Superseded to 114216-03)

$

$

Not available

5

Toro 116470

MUFFLER-EXHAUST

$

$

Not available

6

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

7

Toro 79-5220

Engine-20HP
(Superseded to 95-7691)

$

$

Not available

8

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

9

Toro 114763

PIPE-NIPPLE 3/8 X 4"

$15.99

$

In Stock, only 1 left!

0

10

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

11

Toro 114636

Pipe
(Superseded to 289-45)

$23.99

$

Usually ships in 3-6 days

0

12

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 116609

PLATE-ENGINE B

$129.99

$

Usually ships in 3-6 days

0

16

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 579210

Gasket-Exhaust

$

$

Currently unavailable

20

Toro 114215

LH Exhaust Cover
(Superseded to 114215-03)

$

$

Not available

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
