73520 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) HYDROSTATIC LIFT LINKAGE Parts Diagram

Garden Tractor

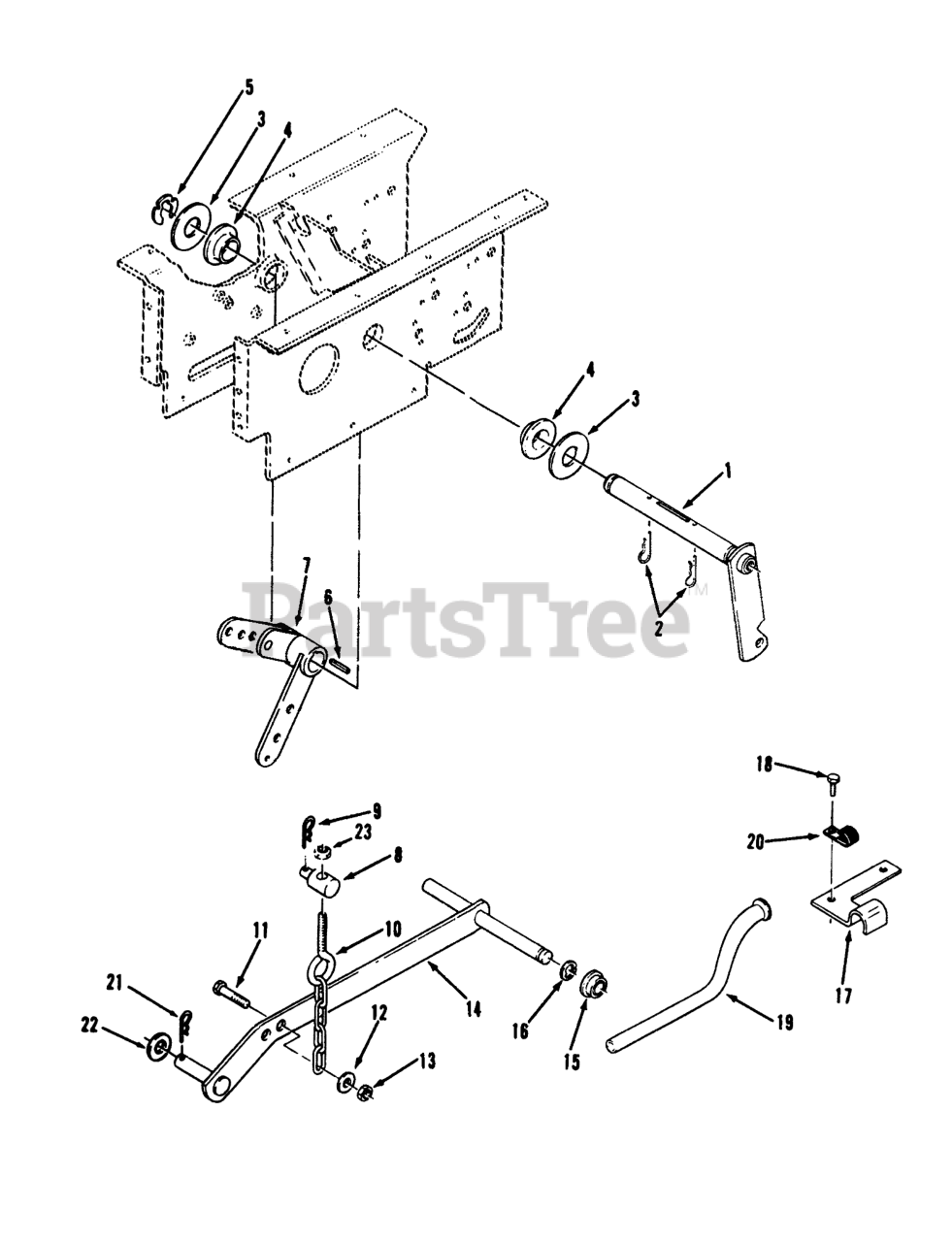

HYDROSTATIC LIFT LINKAGE Parts Diagram

  • Title

1

Toro 121100

WLDMT-LIFT ARM

$

$

Not available

2

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.49

$

In Stock, Qty 5

0

3

Toro 3256-30

WASHER-FLAT

$

$

Not available

4

Toro 106269

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

5

Toro 32121-91

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

6

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

7

Toro 78-1550

LIFT LEVER ASM

$112.99

$

In Stock, only 1 left!

0

8

Toro 79-5720

TRUNNION

$90.99

$

Usually ships in 3-6 days

0

9

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

10

Toro 106522

CHAIN-LIFT

$36.99

$

In Stock, only 1 left!

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 113445

Bar-Lift
(Superseded to 113445-03)

$134.99

$

Usually ships in 3-6 days

0

15

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

16

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

17

Toro 108903

CLAMP-CONDUIT R
(Superseded to 108903-01)

$16.99

$

Usually ships in 3-6 days

0

18

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

19

Toro 108315

TUBE-CONDUIT R
(Superseded to 108315-01)

$59.99

$

Usually ships in 3-6 days

0

20

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

21

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
