73520 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) FRONT AXLE AND STEERING Parts Diagram

Garden Tractor

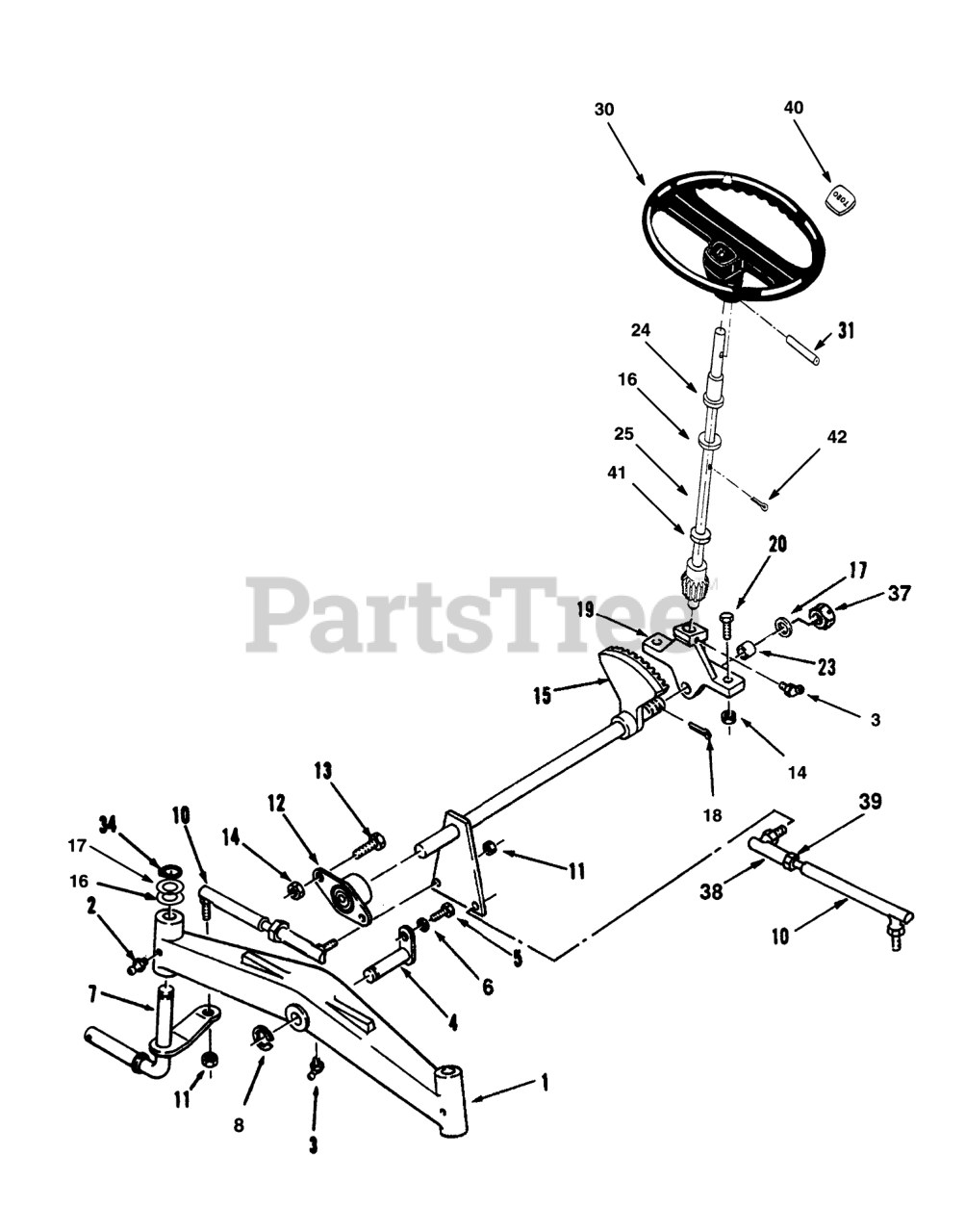

FRONT AXLE AND STEERING Parts Diagram

  • Title

1

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

4

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

5

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 113381

LH SPINDLE ASM
(Superseded to 113381-01)

$112.99

$

Usually ships in 3-6 days

0

Toro 113382

RH SPINDLE WA
(Superseded to 113382-01)

Note: Not illustrated

$108.99

$

In Stock, only 1 left!

0

8

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

10

Toro 78-2900

Tie Rod Assembly (Includes Item 38 & 39)

$76.99

$

In Stock, only 2 left!

0

11

Toro 9156934

NUT HEX 3/8-24 E.S.

$1.99

$

In Stock, Qty 5

0

12

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 2 left!

0

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

15

Toro 78-2880

Shaft
(Superseded to 78-2880-03)

$249.99

$

Usually ships in 3-6 days

0

16

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

18

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

19

Toro 88-2710

Support-Steering
(Superseded to 88-2710-03)

$

$

Not available

20

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

24

Toro 109189

BEARING-FLANGED

$3.49

$

In Stock, Qty 20+

0

25

Toro 92-3129

STEERING SHAFT WA

$

$

Not available

30

Toro 76-1420

Steering Wheel (Incl. Ref. #40)

$217.99

$

Usually ships in 3-6 days

0

31

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

34

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

37

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

38

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

39

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

40

Toro 78-0370

STRG-WHL INSERT TORO

$

$

Not available

41

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

42

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0
