73520 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) ENGINE CYLINDER BLOCK Parts Diagram

Garden Tractor

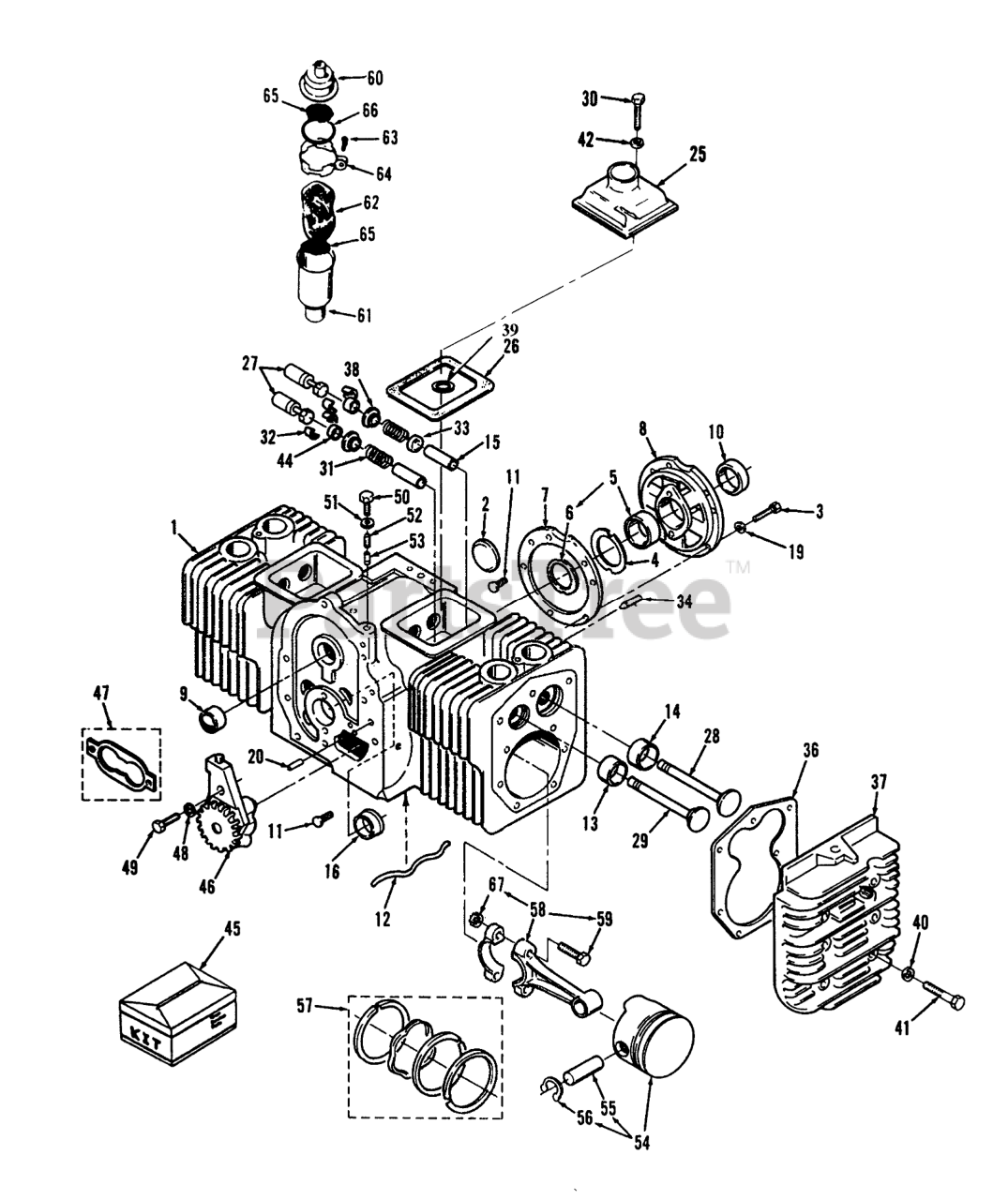

ENGINE CYLINDER BLOCK Parts Diagram

  • Title

1

Toro 92-0900

CYLINDER BLOCK

$

$

Not available

2

Toro NN10536

Plug
(Superseded to 57-9690)

$8.49

$

Usually ships in 3-6 days

0

3

Toro NN10442

Bolt 3/8-16x 1-1/4
(Superseded to 59-0880)

$

$

Not available

4

Toro 57-8170

SHIM

$8.49

$

Usually ships in 3-6 days

0

5

Bearing-Crankshaft, Rear (Includes Thrust Washer)

$

$

Not available

Toro 57-8050

BEARING KIT (STANDARD SLEEVE)

$236.99

$

Usually ships in 3-6 days

0

Toro 59-0020

BEARING-CRANKSHAFT (.002)

$

$

Not available

Toro 57-8060

BEARING KIT (.010)

$

$

Not available

Toro 59-0030

BEARING-CRANKSHAFT (.020)

$

$

Not available

Toro 59-0040

BEARING-CRANKSHAFT (.030)

$

$

Not available

6

Toro NN10476

Thrust Washer
(Superseded to 57-8160)

$

$

Not available

7

Toro 57-8010

GASKET

$28.99

$

In Stock, only 2 left!

0

8

Toro 82-0020

PLATE-BEARING, REAR

$

$

Not available

9

Toro NN10001

Camshaft Brg
(Superseded to 57-8000)

$153.99

$

Usually ships in 3-6 days

0

10

Toro NN10321

Oil Seal
(Superseded to 57-9590)

$41.99

$

In Stock, only 2 left!

0

11

Toro NN10334

Screw
(Superseded to 59-0730)

$

$

Not available

12

Toro NN10139

Oil Tube
(Superseded to 59-0290)

$

$

Not available

13

Insert-Valve Seat, Exhaust

$

$

Not available

Toro NN10054

Standard
(Superseded to 59-0100)

$

$

Not available

Toro NN10055

.002" Oversize
(Superseded to 59-0110)

$

$

Not available

Toro NN10056

.005" Oversize
(Superseded to 59-0120)

$

$

Not available

Toro NN10057

.010" Oversize
(Superseded to 59-0130)

$

$

Not available

Toro NN10058

.025" Oversize
(Superseded to 79-6220)

$

$

Not available

14

Insert-Valve Seat, Intake

$

$

Not available

Toro NN10035

Standard
(Superseded to 59-0050)

$

$

Not available

Toro NN10036

002" Oversize

$

$

Not available

Toro NN10037

005" Oversize

$

$

Not available

Toro NN10038

010" Oversize
(Superseded to 59-0080)

$

$

Not available

Toro NN10039

025" Oversize

$

$

Not available

15

Toro NN10479

Guide-ExhaustValve
(Superseded to 71-6250)

$

$

Not available

Toro NN10478

Guide-Intake Valve
(Superseded to 71-6260)

$

$

Not available

16

Bearing-Crankshaft, Front, Flanged

$

$

Not available

Toro NN10003

Standard
(Superseded to 57-8030)

$

$

Not available

Toro NN10004

.002" Undersize
(Superseded to 57-9360)

$

$

Not available

Toro NN10005

.010" Undersize
(Superseded to 57-8030)

$

$

Not available

Toro NN10006

.020" Undersize
(Superseded to 57-9800)

$

$

Not available

Toro NN10007

.030" Under
(Superseded to 59-0010)

$

$

Not available

19

Toro 82-1640

Washer
(Superseded to 325-35)

$11.99

$

Usually ships in 3-6 days

0

Toro 82-1310

WASHER-FLAT

$

$

Not available

20

Toro NN10336

Pin
(Superseded to 59-0750)

$7.99

$

Usually ships in 3-6 days

0

25

Toro 92-0910

Cover-Valve
(Superseded to NN10821)

$

$

Not available

26

Toro 57-8280

GASKET

$11.99

$

In Stock, only 1 left!

0

27

Tappet-Valve

$

$

Not available

Toro NN10129

Tappet
(Superseded to 57-8450)

$

$

Not available

Toro 59-0260

TAPPET .002 OS

$

$

Not available

Toro 59-0270

.005" Oversize
(Superseded to 59-0260)

$

$

Not available

28

Toro NN10075

Intake Valve
(Superseded to 71-5770)

$

$

Not available

29

Toro NN10076

Exhaust Valve
(Superseded to 71-5780)

$

$

Not available

30

Toro NN10370

HHCS 1/4-20 X 1 3/4

$

$

Not available

31

Toro NN10077

Spring
(Superseded to 71-5790)

$

$

Not available

32

Toro NN10082

VALVE SPRING LOCK

$

$

Not available

33

Toro NN10326

Seal
(Superseded to 71-6180)

$18.99

$

Usually ships in 3-6 days

0

34

Toro NN10385

Screw
(Superseded to 3247-4)

$5.99

$

Usually ships in 3-6 days

0

36

Toro NN10070

Gasket
(Superseded to 57-8330)

$

$

Not available

37

Toro 79-6280

HOUSING CYL RH

$

$

Not available

Toro NN10080

Right Side
(Superseded to 59-0180)

$

$

Not available

Toro NN10079

Side-Left
(Superseded to 71-5810)

$609.99

$

Usually ships in 3-6 days

0

38

Toro NN10078

Washer
(Superseded to 71-5800)

$

$

Not available

39

Toro NN10356

Washer
(Superseded to 59-0820)

$

$

Not available

40

Toro NN10363

Washer
(Superseded to 57-9770)

$

$

Not available

41

Toro NN10381

Bolt
(Superseded to 71-6270)

$

$

Not available

42

Toro NN10359

Washer
(Superseded to 57-9740)

$

$

Not available

44

Toro 71-5830

VALVE CAP

$

$

Not available

45

Kit-Gasket

$

$

Not available

Toro 71-6290

ENGINE GASKET KIT

$

$

Not available

Toro 57-9370

GASKET KIT

$

$

Not available

46

Toro NN10136

Oil Pump
(Superseded to 57-8480)

$

$

Not available

47

Toro 57-8460

GASKET KIT

$

$

Not available

48

Toro NN10542

Washer
(Superseded to 82-1340)

$

$

Not available

49

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

50

Toro NN10383

Bolt
(Superseded to 59-0910)

$

$

Not available

51

Toro NN10361

Washer
(Superseded to 57-9760)

$

$

Not available

52

Toro NN10133

Spring
(Superseded to 59-0280)

$

$

Not available

53

Toro NN10135

Piunger
(Superseded to 57-8470)

$

$

Not available

54

Piston (Includes Pin & Retaining Rings)

$

$

Not available

Toro 92-0901

Standard
(Superseded to 82-1800)

$

$

Not available

Toro 92-0902

PISTON .010

$

$

Not available

Toro 92-0903

PISTON .020

$

$

Not available

Toro 92-0904

PISTON .030

$

$

Not available

55

Toro NN10100

Pin-Piston
(Superseded to 71-6310)

$

$

Not available

56

Toro NN10345

Retaining Ring
(Superseded to 57-9720)

$

$

Not available

57

Kit-Ring, Piston

$

$

Not available

Toro 92-0905

RING/PISTON KIT

$

$

Not available

Toro 92-0906

RING/PISTON KIT .050

$

$

Not available

Toro 92-0907

RING/PISTON KIT .010

$

$

Not available

Toro 92-0908

RING/PISTON KIT .020

$

$

Not available

Toro 92-0909

RING/PISTON KIT .030

$

$

Not available

58

Rod-Connecting (Includes Bolt & Nut)

$

$

Not available

Toro NN10125

CONNECTING ROD W/NUT

$

$

Not available

Toro NN10126

CONNECTING ROD W/NUT

$

$

Not available

Toro NN10127

CONNECTING ROD W/NUT

$

$

Not available

Toro NN10128

CONNECTING ROD W/NUT

$

$

Not available

59

Toro NN10120

Rod Bolt
(Superseded to 57-8410)

$

$

Not available

60

Toro 82-0550

BREATHER-CAP AND VALVE

$

$

Not available

61

Toro 82-0540

TUBE-BREATHER

$

$

Not available

62

Toro 57-8580

FILTER

$6.99

$

Usually ships in 3-6 days

0

63

Toro 82-1480

SCREW-TAPPING, ROUND HEAD

$

$

Not available

64

Toro 82-0530

Clamp

$

$

Not available

65

Toro 82-0560

SCREEN-BREATHER TUBE

$

$

Not available

66

Toro 82-0570

SEAL - O-RING

$7.49

$

Usually ships in 3-6 days

0

67

Toro NN10428

Nut
(Superseded to 57-9790)

$

$

Not available
