73520 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) CARBURETOR COMPONENTS-GASOLINE Parts Diagram

Garden Tractor

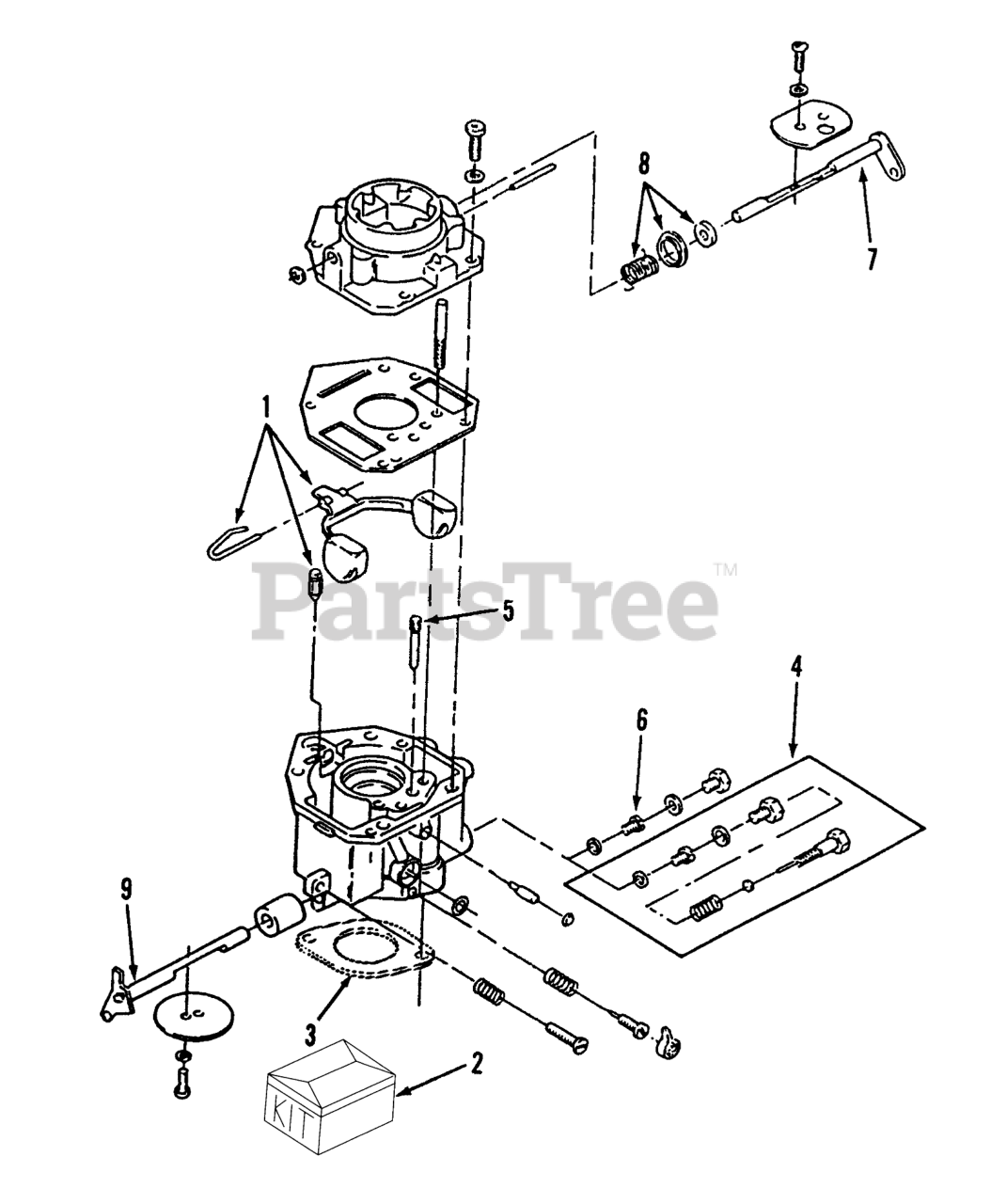

CARBURETOR COMPONENTS-GASOLINE Parts Diagram

  • Title

1

Toro NN10209

Kit-Float (Includes Float, Pin, & Valve)
(Superseded to 62-2800)

$164.99

$

Usually ships in 3-6 days

0

2

Toro 82-0780

Kit-Repair (Includes Screw & Plug Package, Gasket Package, Float Valve, Idle Adjust Needle & Spring, Mounting Gaskets, & Idle Limit Cap)

$716.99

$

Usually ships in 3-6 days

0

3

Toro 82-0580

Oil Fill Tube
(Superseded to 92-0947)

$

$

Not available

4

Toro NN10858

FIXED-JET

$

$

Not available

5

Toro NN10859

IDLE-JET

$

$

Not available

6

Toro 57-9050

POWER JET

$

$

Not available

7

Toro NN10207

Kit-Shaft, Choke (Includes Choke Valve, Valve Setscrew, & Air Filter)
(Superseded to 72-3860)

$

$

Not available

8

Toro NN10208

Kit-Lever, Choke (Includes Choke Lever Ring, Choke Spring, & Choke Collar)
(Superseded to 72-3870)

$

$

Not available

9

Toro NN10811

Kit-Shaft, Throttle (Includes Valve Setscrew, Air Filter, & Throttle Valve)

$

$

Not available
