73517 (110-506R033) - MTD Walk-Behind Mower (1990) (Ace Hardware) Parts03 Parts Diagram

Walk-Behind Mower

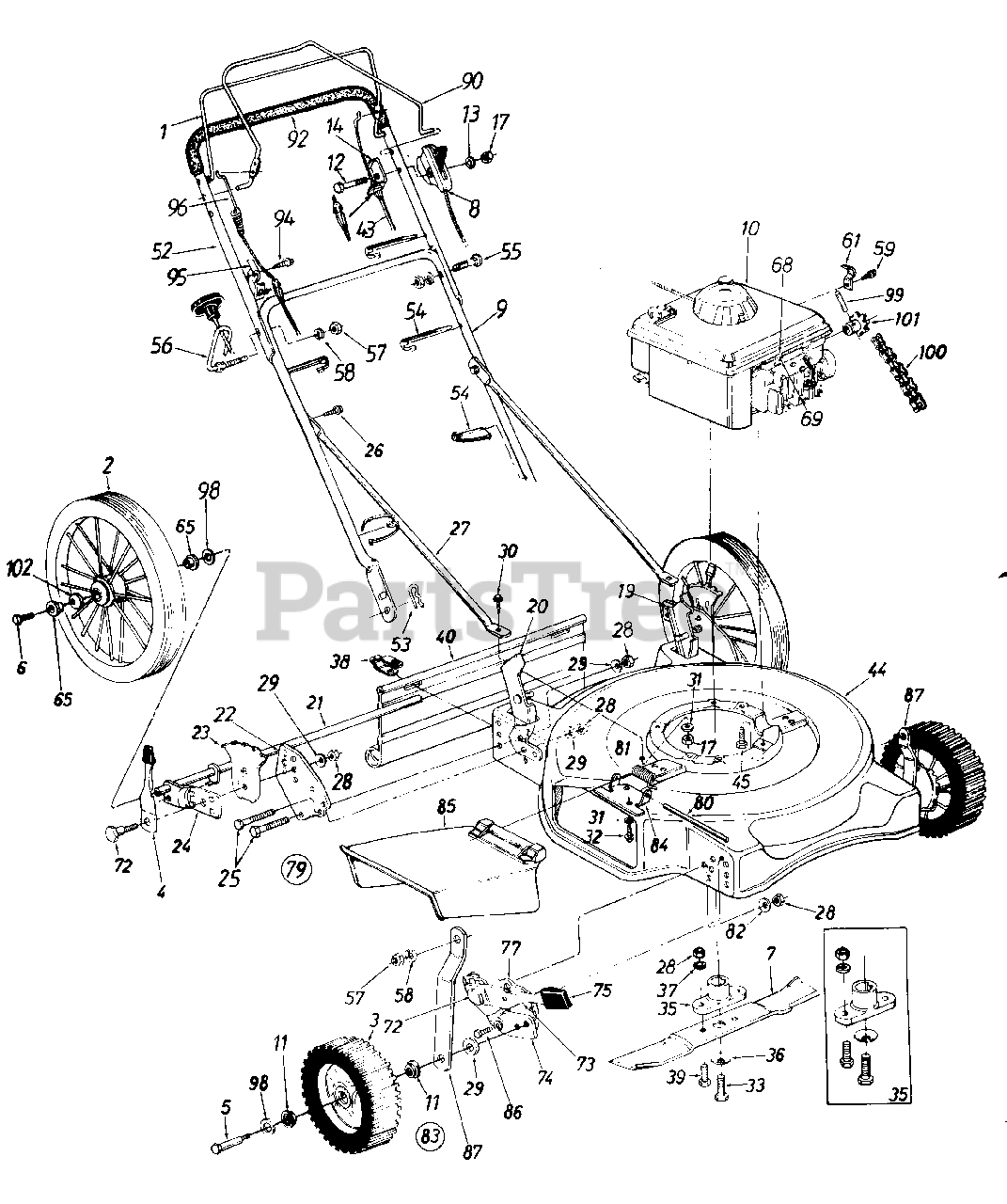

Parts03 Parts Diagram

  • Title

1

MTD 747-0748

Control Handle Ass'y.

$

$

Not available

2

MTD 734-0244

Rear Wheel Ass'y.-Comp. 14.0 x 1.75

$

$

Not available

3

MTD 734-0538

Front Wheel Ass'y.-Comp. 8.0 x 1.75

$

$

Not available

4

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

5

MTD 738-0144

Front Axle Bolt
(Superseded to 938-0144)

$

$

Not available

6

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

7

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

8

MTD 746-0811

Throttle Control Ass'y. Comp.- 51 .62"
(Superseded to 746-0800A)

$61.99

$

Usually ships in 3-6 days

0

9

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

10

4 H.P. Engine-See Breakdown

$

$

Not available

11

MTD 741-0262

Flange Brg. 1/2" I.D.

$8.49

$

Usually ships in 3-6 days

0

12

MTD 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, only 2 left!

0

13

MTD 736-0175

Spr. Wash. .265" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

14

MTD 17173

Cable Mtg. Bracket

$

$

Not available

17

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

19

MTD 17189

Handle Mount Brkt.-L.H.

$

$

Not available

20

MTD 17188

Handle Mount Brkt.-R.H.

$

$

Not available

21

MTD 738-0767

Rear Axle Ass'y.

$

$

Not available

22

MTD 16645C

Mounting Plate

$

$

Not available

23

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

24

Order Height Adj. Ass'y. Comp.

Note: (Ref. 79)

$

$

Not available

25

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

26

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/1 6 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 749-0771

Strut Bar 22.95" Lg.

$

$

Not available

28

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

29

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

31

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg .

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5)

$3.99

$

In Stock, only 1 left!

0

35

MTD 753-0484

Blade Adapter Kit

Note: (Incl. Ref. Nos. 28, 33, 35, 36, 37, 39)

$23.99

$

In Stock, only 1 left!

0

36

MTD 736-0452

Bell-Wash..39" I.D.

$4.99

$

In Stock, Qty 7

0

37

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

38

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

39

MTD 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

40

MTD 731-1026

Rear Flap Ass'y.

$

$

Not available

43

MTD 746-0550

Control Cable-39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

44

MTD 17046

22" Deck Ass'y.
(Superseded to 97046)

$197.99

$

Usually ships in 3-6 days

0

45

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

52

MTD 749-0756

Upper Handle
(Superseded to 749-0756A)

$

$

Not available

53

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

55

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

56

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

57

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

59

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

61

MTD 12894A

Casing Clamp

$

$

Not available

65

MTD 748-0147

Flange Bearing

$

$

Not available

68

MTD 751-0463

Casing Clamp

$

$

Not available

69

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

72

MTD 738-0507B

Shoulder Bolt .50" Dia.

$4.49

$

In Stock, only 4 left!

0

73

MTD 732-0417A

Spring Lever

$

$

Not available

74

MTD 14765

Pivot Bar-R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar-L.H.

$19.99

$

Usually ships in 3-6 days

0

75

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

77

MTD 14764C

Index Plate

$8.49

$

Usually ships in 3-6 days

0

79

MTD 16900

Rear Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

Note: (Incl. Ref. Nos. 4, 23, 24, 72)

$65.99

$

In Stock, Qty 7

0

MTD 16901

Rear Height Adj. Ass'y. Comp.-L.H.

Note: (Not Shown-Incl. Ref. Nos. 4, 23, 24, 72)

$

$

Not available

80

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

81

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

82

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

83

MTD 16106

Front Height Adj. Ass'y. Comp.-R.H.

Note: (Incl. Ref. Nos. 72, 73, 74, 75, 77)

$

$

Not available

MTD 16107

Front Height Adj. Ass'y. Comp.-L.H.

$

$

Not available

84

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

85

MTD 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

86

MTD 710-0892

Hex Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

87

MTD 16532A

Link
(Superseded to 16532B-0637)

$

$

Not available

90

MTD 747-0749

S.P. Bail Ass'y.
(Superseded to 747-0749A)

$

$

Not available

92

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

94

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

95

MTD 16309A

Cable Mounting Brkt.

$

$

Not available

96

MTD 746-0626

Drive Cable
(Superseded to 946-0626)

$68.99

$

Usually ships in 3-6 days

0

98

MTD 736-0192

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, Qty 8

0

99

MTD 715-0247

Spring Pin 3/16" Dia.
(Superseded to 915-0247)

$

$

Not available

100

MTD 713-0311

#48 Chain 1/2" Pitch 50 Links
(Superseded to 913-0311)

Note: (Endless)

$31.99

$

Usually ships in 3-6 days

0

101

MTD 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

102

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0
