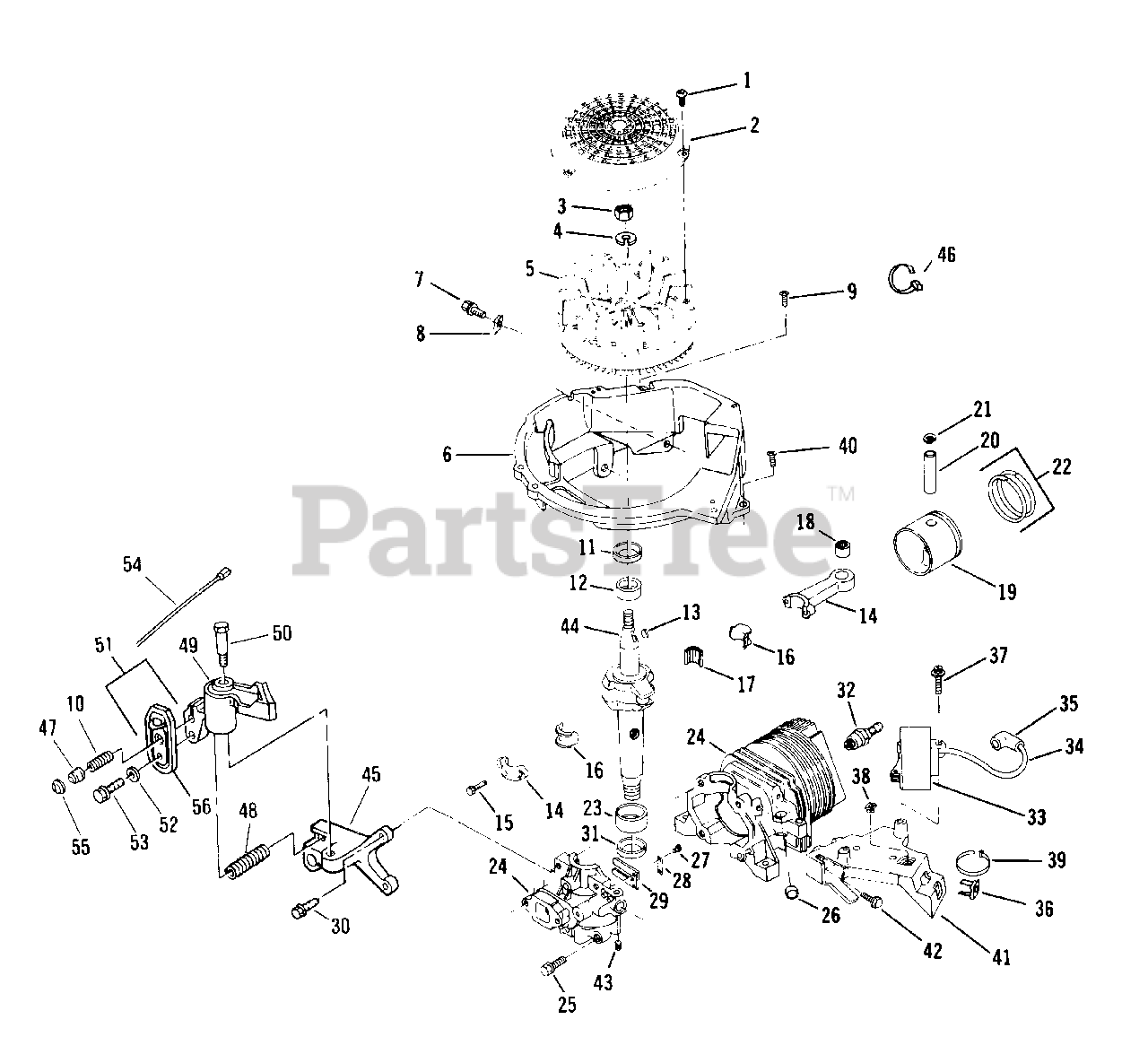

7351 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) ENGINE GROUP MODELS: 7351 Parts Diagram

Walk-Behind Mower

ENGINE GROUP MODELS: 7351 Parts Diagram

  • Title

1

Lawn-Boy 606537

Screw-Flywheel Screen

Note: Used on MODELS 5254 and 7073.

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 611375

Screen-Flywheel

Note: Used on MODELS 5254 and 7073.

$

$

Not available

2

Lawn-Boy 610745

Screen-Flywheel

Note: Used on MODELS 5254 and 7073.

$

$

Not available

3

Lawn-Boy 130743

Nut-Flywheel

Note: Used on MODELS 5254 and 7073.

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 303807

Lockwasher

Note: Used on MODELS 5254 and 7073.

$

$

Not available

5

Lawn-Boy 683580

Flywheel Assembly

Note: Used on MODELS 5254 and 7073.

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 611190

Base-Shroud

Note: Used on MODELS 5254 and 7073.

$

$

Not available

7

Lawn-Boy 609947

Screw

Note: Used on MODELS 5254 and 7073.

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611191

Clip-"J"

Note: Used on MODELS 5254 and 7073.

$

$

Not available

9

Lawn-Boy 609808

Screw

Note: Used on MODELS 5254 and 7073. Used on MODELS 4262 and 7351.

$11.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611214

Spring-Cable Retainer

Note: Used on MODELS 5254 and 7073.

$9.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 611396

Oil Seal-Upper

Note: Used on MODELS 5254 and 7073.

$6.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 681830

Bearing-Main-Upper

Note: Used on MODELS 5254 and 7073.

$41.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 607199

Key-Flywheel

Note: Used on MODELS 5254 and 7073.

$5.49

$

In Stock, Qty 9

0

Lawn-Boy 682677

Piston and Connecting Rod Asy.
(Superseded to 92-4925)

Note: Used on MODELS 5254 and 7073.

$

$

Not available

14

Lawn-Boy 682970

Connecting Rod Assembly
(Superseded to 92-4921)

Note: Used on MODELS 5254 and 7073.

$241.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 611393

Screw-Cap

Note: Used on MODELS 5254 and 7073.

$22.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 677982

Liner Split

Note: Used on MODELS 5254 and 7073.

$46.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 683911

Needle Bearing Set

Note: Used on MODELS 5254 and 7073.

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 679144

Bearing Assembly

Note: Used on MODELS 5254 and 7073.

$

$

Not available

19

Lawn-Boy 682986

Piston and Ring Set
(Superseded to 92-4923)

Note: Used on MODELS 5254 and 7073.

$

$

Not available

20

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Used on MODELS 5254 and 7073.

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 303712

Retaining Ring

Note: Used on MODELS 5254 and 7073.

$3.49

$

In Stock, Qty 11

0

22

Lawn-Boy 681737

Ring Set

Note: Used on MODELS 5254 and 7073.

$

$

Not available

23

Lawn-Boy 681831

Bearing-Main-Lower

Note: Used on MODELS 5254 and 7073.

$24.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 683702

Cylinder and Crankcase Cover Asy

Note: Used on MODELS 5254 and 7073.

$

$

Not available

Lawn-Boy 610372

Sealant

Note: Used on MODELS 5254 and 7073.

$27.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 609918

Screw-Cover to Crankcase

Note: Used on MODELS 5254 and 7073.

$3.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609123

Plug

Note: Used on MODELS 5254 and 7073.

$3.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612872

Screw-Reed to C'case Cover

Note: Used on MODELS 5254 and 7073.

$2.49

$

In Stock, Qty 5

0

28

Lawn-Boy 602587

Plate-Reed Hold Down

Note: Used on MODELS 5254 and 7073.

$3.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 602588

Reed

Note: Used on MODELS 5254 and 7073.

$

$

Not available

30

Lawn-Boy 609545

Screw-Brake Mounting Bkt.

Note: Used on MODELS 5254 and 7073.

$

$

Not available

31

Lawn-Boy 611396

Oil Seal-Lower

Note: Used on MODELS 5254 and 7073.

$6.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 605885

Spark Plug
(Superseded to 614009)

Note: Used on MODELS 5254 and 7073.

$5.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 683215

C.D. Ignition Module and Lead Asy
(Superseded to 100-2948)

Note: Used on MODELS 5254 and 7073.

$125.99

$

In Stock, only 1 left!

0

Lawn-Boy 318535

Adhesive

Note: Used on MODELS 5254 and 7073.

$

$

Currently unavailable

34

Lawn-Boy 681678

High Tension Lead & Lwr. Asy.

Note: Used on MODELS 5254 and 7073.

$24.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 510231

Spring Terminal
(Superseded to 684698)

Note: Used on MODELS 5254 and 7073.

$7.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 605120

Grommet

Note: Used on MODELS 5254 and 7073. Used on MODELS 5254 and 7073.

$4.49

$

In Stock, Qty 9

0

36

Lawn-Boy 611380

Grommet

Note: Used on MODELS 5254 and 7073. Used on MODELS 4264 and 7073.

$

$

Not available

37

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

Note: Used on MODELS 5254 and 7073.

$2.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 605120

Grommet-C.D. Bracket

Note: Used on MODELS 5254 and 7073.

$4.49

$

In Stock, Qty 9

0

39

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Used on MODELS 5254 and 7073.

$1.49

$

In Stock, Qty 6

0

40

Lawn-Boy 609808

Screw-Shroud Base to C.D. Brkt.

Note: Used on MODELS 5254 and 7073.

$11.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 613073

Bracket-C.D. Mounting

Note: Used on MODELS 5254 and 7073.

$

$

Not available

42

Lawn-Boy 307028

Screw
(Superseded to 614343)

Note: Used on MODELS 5254 and 7073.

$3.49

$

In Stock, only 4 left!

0

43

Lawn-Boy 611073

Set Screw-Starter Assembly
(Superseded to 3274-10)

Note: Used on MODELS 5254 and 7073.

$9.99

$

In Stock, Qty 13

0

44

Lawn-Boy 609421

Crankshaft
(Superseded to 94-5713)

Note: Used on MODELS 5254 and 7073.

$292.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 611192

Bracket-Brake

Note: Used on MODELS 5254 and 7073.

$129.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 317893

Tie Strap

Note: Used on MODELS 5254 and 7073.

$

$

Not available

47

Lawn-Boy 611509

Actuator-Brake Lever

Note: Used on MODELS 5254 and 7073.

$5.49

$

In Stock, only 3 left!

0

48

Lawn-Boy 611211

Spring-Brake

Note: Used on MODELS 5254 and 7073.

$15.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 682683

Brake Assembly

Note: Used on MODELS 5254 and 7073.

$

$

Not available

50

Lawn-Boy 611212

Bolt-Shoulder
(Superseded to 613529)

Note: Used on MODELS 5254 and 7073.

$13.99

$

Usually ships in 3-6 days

0

51

Lawn-Boy 683968

Switch Assembly
(Superseded to 93-4307)

Note: Used on MODELS 5254 and 7073.

$50.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 602945

Washer

Note: Used on MODELS 5254 and 7073.

$

$

Not available

53

Lawn-Boy 609760

Screw

Note: Used on MODELS 5254 and 7073.

$

$

Not available

54

Lawn-Boy 683821

Lead Assembly

Note: Used on MODELS 5254 and 7073.

$

$

Not available

55

Lawn-Boy 611213

Retainer

Note: Used on MODELS 5254 and 7073.

$2.49

$

In Stock, only 4 left!

0

56

Lawn-Boy 683819

Case Assembly-Only
(Superseded to 93-4301)

Note: Used on MODELS 5254 and 7073.

$16.99

$

Usually ships in 3-6 days

0
