7351 - Lawn-Boy Walk-Behind Mower (SN: F00000001 - F99999999) (1987) Engne Group Models: 4262 Parts Diagram

Walk-Behind Mower

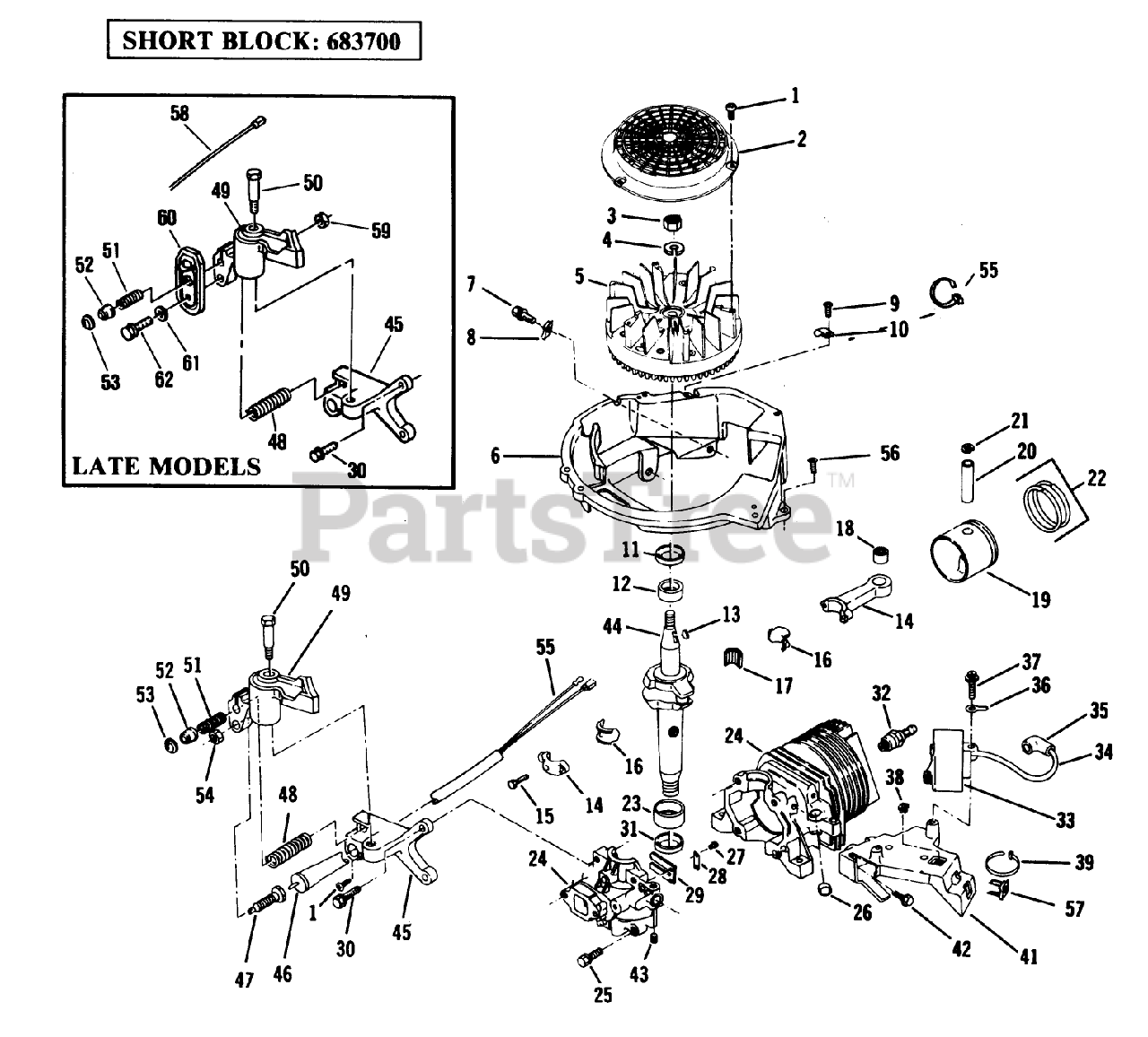

Engne Group Models: 4262 Parts Diagram

  • Title

1

Lawn-Boy 606537

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 611375

SCREEN F'WHEEL S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611375

SCREEN F'WHEEL S

Note: Used on Models 5254 and 7351.

$

$

Not available

2

Lawn-Boy 610745

DISCONTINUED

Note: Used on Models 4262, and 7073.

$

$

Not available

2

Lawn-Boy 610745

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 130743

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 303807

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 683580

FLYWHEEL ASSY F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 611190

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 609947

SCREW-SEMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611191

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 609808

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 609808

SCREW F

Note: Used on MODELS 4262 and 7351.

$11.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611081

DISCONTINUED

Note: Used on MODELS 4262 and 7351.

$

$

Not available

10

Lawn-Boy 611081

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 605020

See Supercession: 611396
(Superseded to 611396)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 681830

BEARING V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 607199

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

Lawn-Boy 682677

DISCONTINUED
(Superseded to 92-4925)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 682970

NEEDS DESCRIPTION
(Superseded to 92-4921)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 611393

SCREW-HSH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 677982

LINER ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 677963

See Supercession: 683911
(Superseded to 683911)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 679144

BEARING AY F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 682986

DISCONTINUED
(Superseded to 92-4923)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 606608

See Supercession: 94-5774
(Superseded to 94-5774)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 303712

RING-RETAINING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 11

0

22

Lawn-Boy 681737

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 681831

BEARING V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 683702

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 610372

SEALER-LOCTITE (6 ML TUBE)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 609918

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609123

PLUG-CORE VF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 303761

See Supercession: 612872
(Superseded to 612872)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

28

Lawn-Boy 602587

PLATE-BACKUP, REED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 602588

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 609545

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 611396

SEAL-OIL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 605885

See Supercession: 614009
(Superseded to 614009)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 683215

See Supercession: 100-2948
(Superseded to 100-2948)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$125.99

$

In Stock, only 1 left!

0

Lawn-Boy 318535

Adhesive

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

34

Lawn-Boy 681678

HT LEAD&COVER XEV

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 510231

See Supercession: 684698
(Superseded to 684698)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 609651

TERMINAL S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 605120

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 9

0

39

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

41

Lawn-Boy 609120

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 307028

See Supercession: 614343
(Superseded to 614343)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

43

Lawn-Boy 611073

See Supercession: 3274-10
(Superseded to 3274-10)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 13

0

44

Lawn-Boy 610747

See Supercession: 94-5713
(Superseded to 94-5713)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$292.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 611192

BRACKET-BRAKE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$129.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 683596

See Supercession: 93-4307
(Superseded to 93-4307)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$50.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 611510

PLUNGER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611211

SPRING-BRAKE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 682683

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 611212

See Supercession: 613529
(Superseded to 613529)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$13.99

$

Usually ships in 3-6 days

0

51

Lawn-Boy 611214

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, only 1 left!

0

52

Lawn-Boy 611509

ACTUATOR-LEVER, BRAKE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

53

Lawn-Boy 611213

RETAINER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

54

Lawn-Boy 130728

See Supercession: 700755
(Superseded to 700755)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 317893

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 317893

DISCONTINUED

Note: Used on Model 4262.

$

$

Not available

56

Lawn-Boy 609808

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 605120

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 9

0

57

Lawn-Boy 605120

NUT-CLIP

Note: Used on Models 4262, 5254, and 7073.

$4.49

$

In Stock, Qty 9

0

57

Lawn-Boy 611380

NUT-CLIP

Note: Used on Models 4262 and 7073.

$

$

Not available

57

Lawn-Boy 611380

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 683821

WIRE LEAD AY F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611258

NUT C/LOCK E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

60

Lawn-Boy 683820

See Supercession: 93-4307
(Superseded to 93-4307)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$50.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 609892

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
