73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) WHEEL ASSEMBLIES Parts Diagram

Garden Tractor

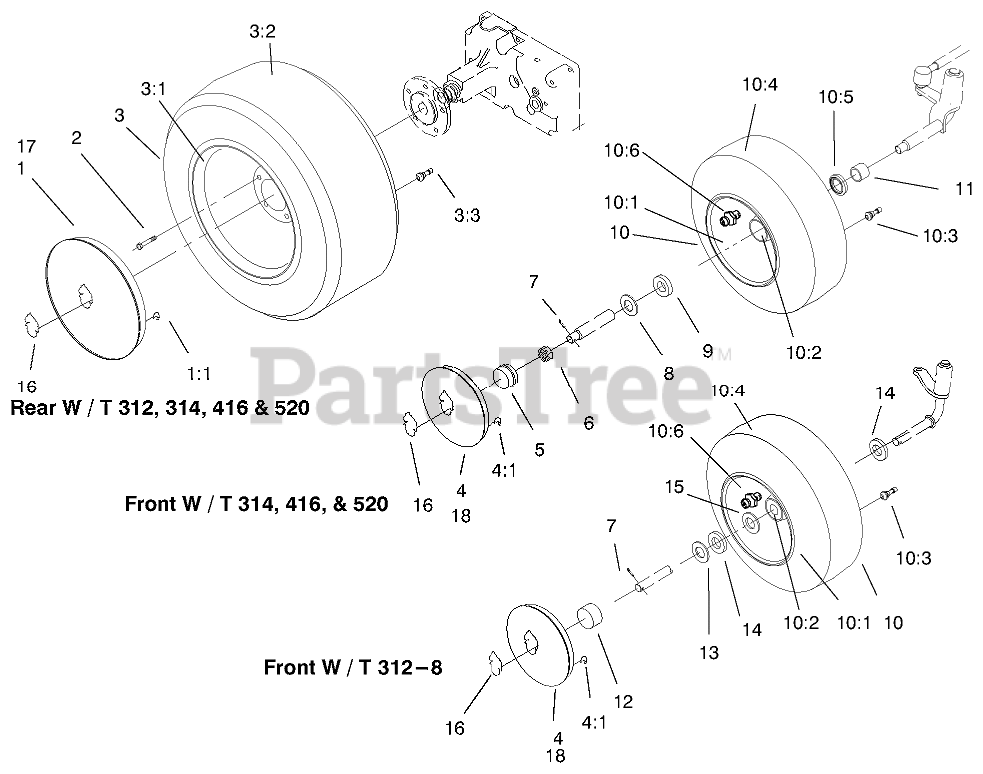

WHEEL ASSEMBLIES Parts Diagram

  • Title
1

Toro 94-3731

HUBCAP - 12"

$

$

Not available

1:1

Toro 94-9729

CLIP - HUBCAP

$

$

Not available

2

Toro 83-2720

BOLT-LUG

$4.99

$

In Stock, only 4 left!

0

3

ASM-Wheel & Tire

$

$

Not available

3:1

Toro 110680

RIM ASM

$

$

Not available

3:2

Toro 116971

TIRE 23 X 10.50-12

$

$

Not available

3:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

4

Toro 94-3730

HUBCAP - 8"

$

$

Not available

4:1

Toro 94-9729

CLIP - HUBCAP

$

$

Not available

5

Toro 112825

DUST CAP

$

$

Not available

6

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

7

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

8

Toro 9202254

WASHER

$3.99

$

In Stock, only 2 left!

0

9

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

10

Toro 93-9806

ASSY-WHEEL & TIRE

$

$

Not available

10:1

Toro 116867

TIRE-16 X 7.50 TURF

$

$

Not available

10:3

Toro 112821

Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 11

0

10:3

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

10:4

Toro 117288

ASM-Wheel w/Zerk

$

$

Currently unavailable

10:4

Toro 93-9807

SEAL-OIL

$27.99

$

In Stock, only 3 left!

0

10:5

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

11

Toro 112824

SPACER

$

$

Not available

16

Toro 94-3736

LOGO - HORSEHEAD

$

$

Not available

17

Toro 94-3718

HUBCAP ASM - 12", YGT (HORSEHEAD LOGO)

$

$

Not available

17:1

Toro 94-3731

HUBCAP - 12"

$

$

Not available

17:2

Toro 94-3736

LOGO - HORSEHEAD

$

$

Not available

18

Toro 94-3717

SILVER HUB CAP/LOGO ASM

$

$

Not available

Toro 100079

TUBE

Note: Optional equipment

$

$

Not available

Toro 7007

TUBE-INNER
(Superseded to 231-90)

Note: Optional equipment

$

$

Not available

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

Note: Optional equipment

$

$

Not available

Toro 112819

TUBE-INNER

Note: Optional equipment

$46.99

$

Usually ships in 3-6 days

0

18:1

Toro 94-3730

HUBCAP - 8"

$

$

Not available

18:2

Toro 94-3736

LOGO - HORSEHEAD

$

$

Not available
