73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HYDRO DRIVE, PARKING BRAKE Parts Diagram

Garden Tractor

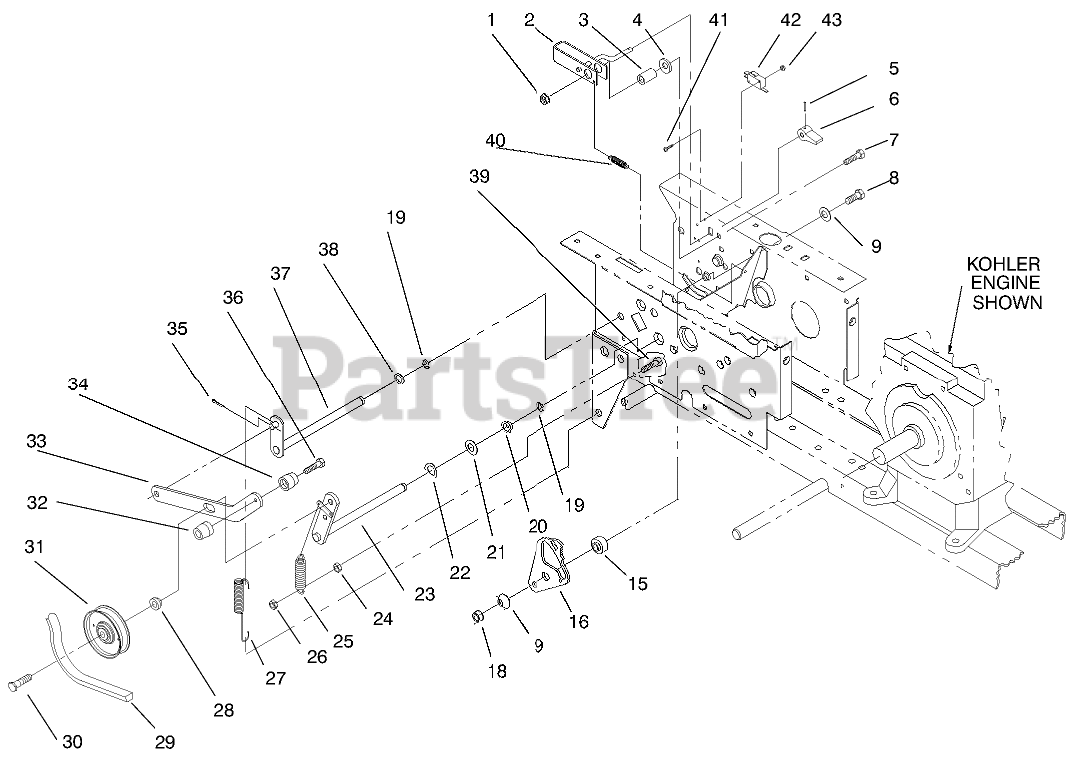

HYDRO DRIVE, PARKING BRAKE Parts Diagram

  • Title

1

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Toro 78-8500-03

WLMT-BRAK (BLACK)

$

$

Not available

3

Toro 102025

SPACER

$

$

Not available

4

Toro 9202414

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

5

Toro 933135

PIN-SPIROL 3/32X5/8

$

$

Not available

6

Toro 118860

KNOB-PARKING BRAKE

$

$

Not available

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Toro 94-6688

SPACER-CAM PLATE

$

$

Not available

16

Toro 108716

Cam Plate
(Superseded to 108716-03)

$

$

Not available

18

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

19

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

20

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

21

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

22

Toro 114823

CURVED-SPRING WASHER

$9.49

$

Usually ships in 3-6 days

0

23

Toro 78-6020

WLDMT-IDLER ARM

$

$

Not available

24

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

25

Toro 107938

SPRING-EXTENSION

$13.99

$

In Stock, only 4 left!

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 114895

BELT-V

$69.99

$

In Stock, only 1 left!

0

30

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 112791

PULLEY-IDLER

$91.99

$

In Stock, only 4 left!

0

39

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 83-2820

EXTENSION-SPRING

$

$

Not available

41

Toro 9109484

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

42

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

43

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0
