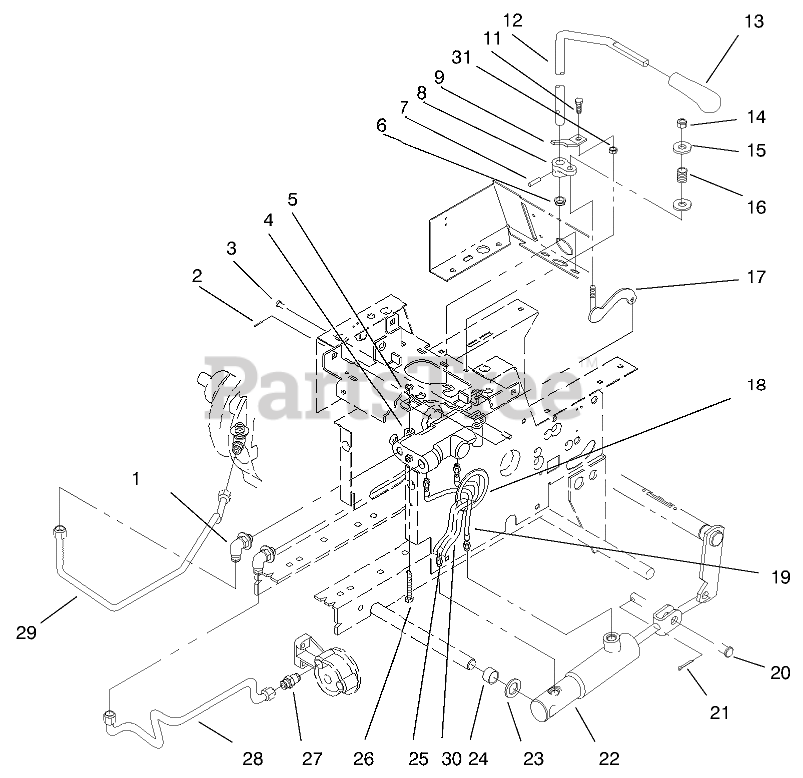

73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HYDRAULIC LIFT SYSTEM Parts Diagram

Garden Tractor

HYDRAULIC LIFT SYSTEM Parts Diagram

  • Title

1

Toro 108365

ELBOW
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

2

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

3

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

4

Toro 114000

ASS'Y-VALVE

$

$

Not available

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

7

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

8

Toro 116302

ARM-CONTROL

$

$

Not available

9

Toro 116305-03

Bracket-Control

$

$

Currently unavailable

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 117328

ROD-LIFT CONTROL

$

$

Not available

13

Toro 94-6694

KNOB, LIFT CONTROL

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

17

Toro 78-5640

WLDMT-LIFT BAR

$

$

Not available

18

Toro 106267

GROMMET

$

$

Not available

19

Toro 94-6697

9"ASM HYDRA HOSE

$112.99

$

Usually ships in 3-6 days

0

20

Toro 9329974

Pin-Clevis

$

$

Currently unavailable

21

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

22

Toro 119340

ASS'Y-CYLINDER

$

$

Not available

23

Toro 9202324

Washer

$1.99

$

In Stock, only 3 left!

0

24

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

25

Toro 94-6698

12"ASM HYDRAL HOSE

$118.99

$

Usually ships in 3-6 days

0

26

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 102628

FITTING

$

$

Not available

28

Toro 94-1802

TUBE-HYDRAULIC

$

$

Not available

31

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

32

Toro 94-6699

ADAPTOR - HOSE, 45 DEGREE

$

$

Not available
