73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) FRAME FRONT AXLE Parts Diagram

Garden Tractor

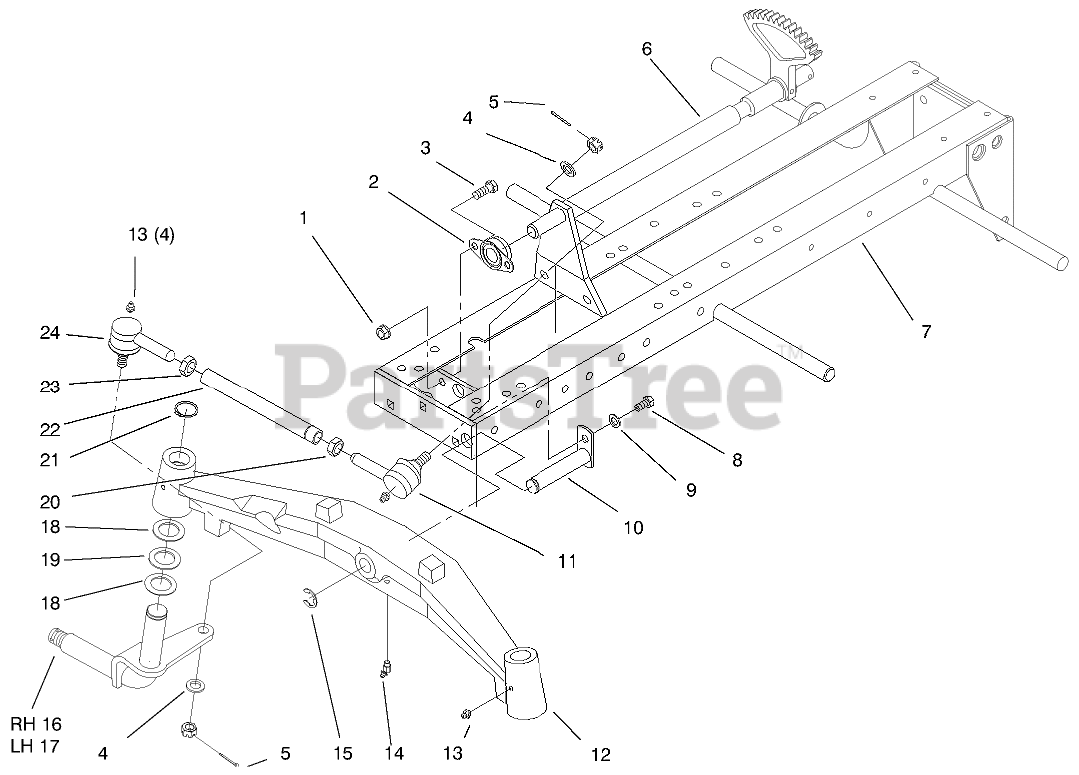

FRAME FRONT AXLE Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 6472

BEARING-FLANGED

$24.99

$

In Stock, only 4 left!

0

3

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 9202424

Spacer
(Superseded to 920242)

$6.49

$

Usually ships in 3-6 days

0

5

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

6

Toro 78-1490-03

WLMT-SHFT LW (BLACK)

$

$

Not available

7

Toro 94-6674-01

WA FRAME (RED)

$1057.99

$

Usually ships in 3-6 days

0

8

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

9

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 6216

PIN AND PLATE ASM

$51.99

$

Usually ships in 3-6 days

0

11

Toro 112772-01

Balljoint-RH Thread

$

$

Currently unavailable

12

Toro 116823-01

AXLE FRONT (RED)

$

$

Not available

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

15

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

16

Toro 112764-01

R.H. SPINDLE WA (RED)

$

$

Not available

17

Toro 112765-01

L.H. SPINDLE WA (RED)

$

$

Not available

18

Toro 9548

WASHER-THRUST

$

$

Not available

19

Toro 9865

BEARING-THRUST
(Superseded to 252-66)

$12.99

$

In Stock, only 2 left!

0

20

Toro 3220-11

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

21

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

22

Toro 112773-01

TUBE +1 (RED)

$

$

Not available

23

Toro 112775

NUT-HEX JAM 9/16-18

$

$

Not available

24

Toro 112771-01

Balljoint-LH Thread

$

$

Currently unavailable
