73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) ENGINE WIRE HARNESS Parts Diagram

Garden Tractor

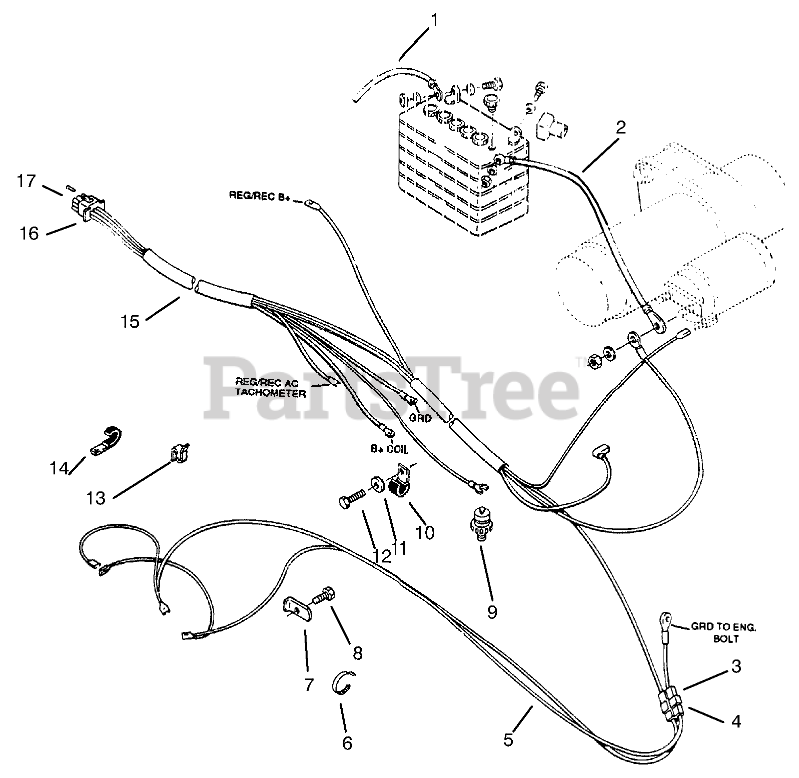

ENGINE WIRE HARNESS Parts Diagram

  • Title

1

Cable-Battery-

$

$

Not available

2

Cable-Battery (+)

$

$

Not available

3

Toro NN10278

MALE CONNECTOR

$

$

Not available

4

Toro 109357

CONNECTOR BODY

$

$

Not available

5

Toro 114052

HARNESS-HEADLIGHT

$

$

Not available

6

Toro 100571

PLASTIC TIE

$

$

Not available

7

Toro 109459

LOCK-HEADLIGHT

$7.99

$

In Stock, Qty 7

0

8

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

9

Toro 94-1845

SWITCH - OIL PRESSURE

$

$

Not available

10

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

11

Toro NN10425

LOCKWASHER 1/4 IT

$

$

Not available

12

Toro 82-1540

SCREW-HWH

$

$

Not available

13

Toro 3023

SPEED CLIP

$

$

Not available

14

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

15

Toro 94-1846

HARNESS - ENGINE WIRE

$

$

Not available

15

Harness-Eng Wiring P220G I/19055H

$

$

Not available

16

Toro NN10281

CONNECTOR CAP

$

$

Not available

17

Toro NN10279

CONTACT SOCKET

$8.49

$

In Stock, only 2 left!

0
