73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) BATTERY ASSEMBLY Parts Diagram

Garden Tractor

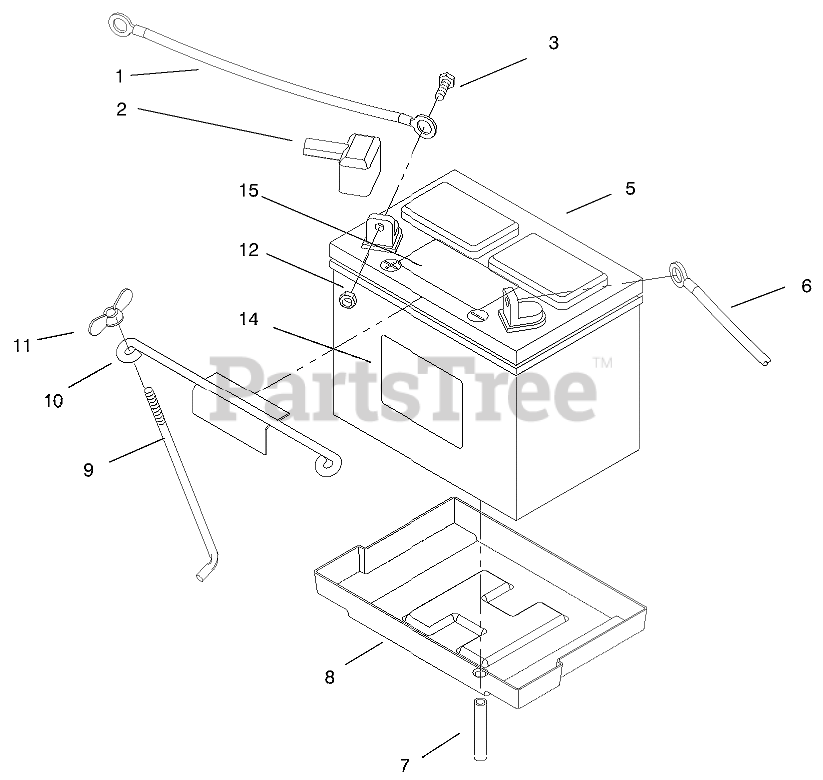

BATTERY ASSEMBLY Parts Diagram

  • Title
1

Toro 113925

ASS'Y-WIRE

$86.99

$

Usually ships in 3-6 days

0

2

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 9108074

Screw

$

$

Currently unavailable

5

Toro 115877

Battery
(Superseded to 104-8162)

$

$

Not available

6

Toro 114210

ASS'Y-WIRE

$60.99

$

Usually ships in 3-6 days

0

7

Toro 114720

TUBE-21" BATTERY DRAIN

$7.99

$

Usually ships in 3-6 days

0

8

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

9

Toro 113969

HOOK-BATTERY RETAIN

$16.99

$

In Stock, only 2 left!

0

10

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 4 left!

0

11

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0
