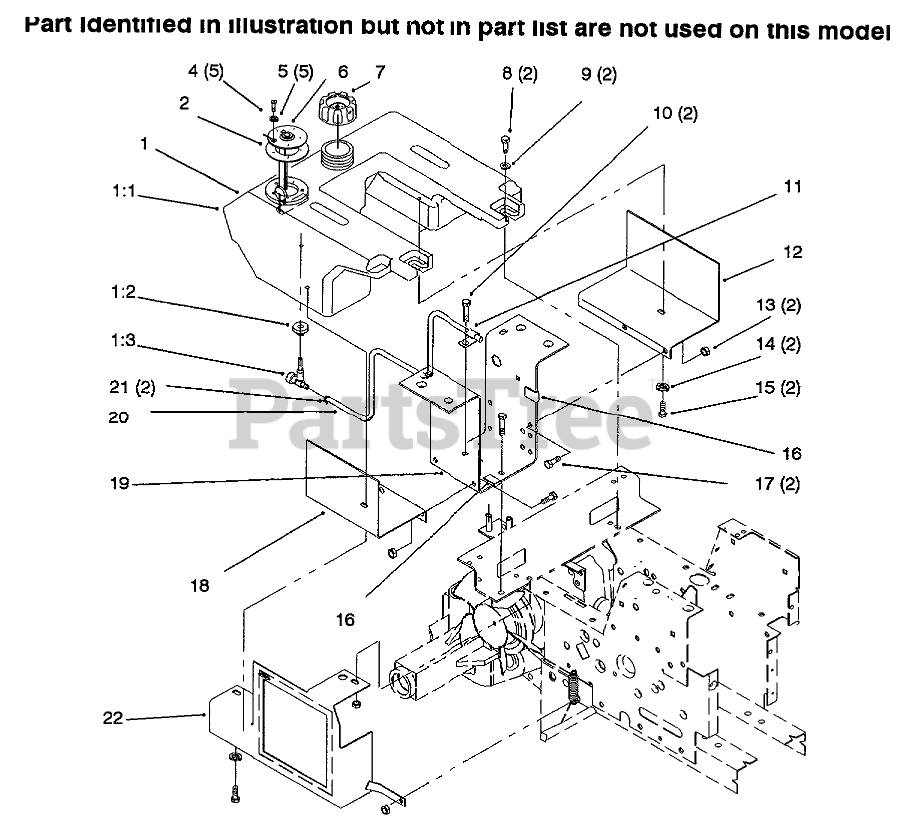

73502 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) FUEL TANK Parts Diagram

Garden Tractor

FUEL TANK Parts Diagram

  • Title

1

Toro 114012

FUEL TANK

$

$

Not available

2

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 1 left!

0

4

Toro 9108074

Screw

$

$

Currently unavailable

5

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

6

Toro 113358

SENDER-FUEL LEVEL

$

$

Not available

7

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

8

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

12

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$38.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

16

Toro 519337

CLIP-CABLE

$

$

Not available

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$53.99

$

Usually ships in 3-6 days

0

19

Toro 79-4990

Bracket-Fender
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0

20

Toro 92-9513

Line-Fuel 47"
(Superseded to 110-7502)

$51.99

$

Usually ships in 3-6 days

0

21

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0
