73501 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) GEARCASE & IGNITION CONTROLS Parts Diagram

Garden Tractor

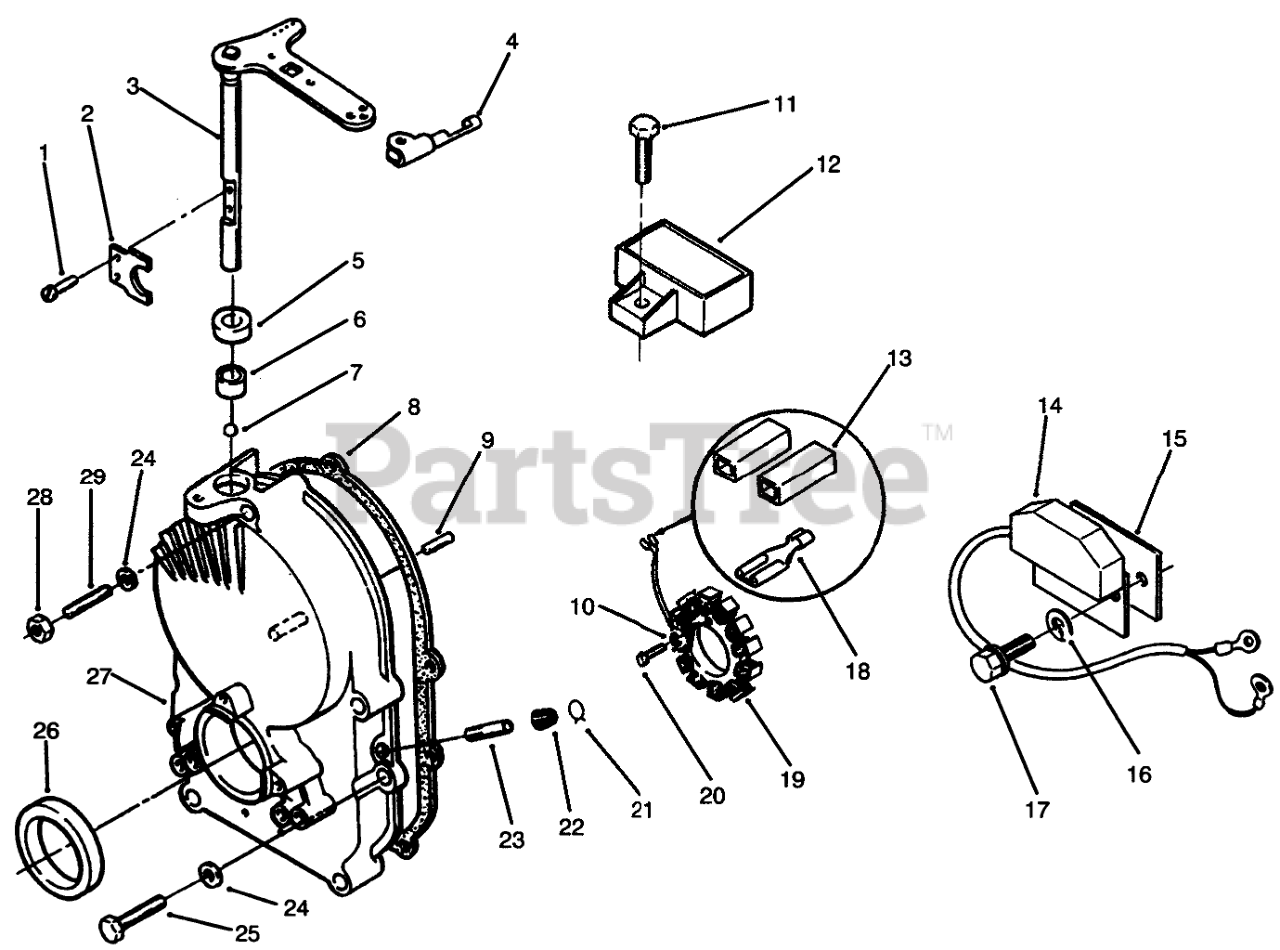

GEARCASE & IGNITION CONTROLS Parts Diagram

  • Title

1

Toro 59-0950

SCREW-PAN HD

$

$

Not available

2

Toro 59-0420

YOKE

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

$200.99

$

Usually ships in 3-6 days

0

4

Toro 57-9730

CLIP

$19.99

$

Usually ships in 3-6 days

0

5

Toro 57-9570

SEAL

$

$

Not available

6

Toro 57-9650

BEARING

$

$

Not available

7

Toro 57-9630

BALL

$

$

Not available

8

Toro NN10895

Gasket
(Superseded to 71-6360)

$

$

Not available

9

Toro 59-0740

PIN-DOWEL

$6.49

$

In Stock, only 1 left!

0

10

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 59-1080

SCREW-HWH

$

$

Not available

12

Toro 57-9430

REGULATOR
(Superseded to 117-2742)

$271.99

$

In Stock, only 2 left!

0

13

Toro 82-1000

Body-Terminal Conn. Kit (Incl. Ref. #18)

$

$

Not available

14

Toro 71-6380

CONTROL-IGNITION

$457.99

$

Usually ships in 3-6 days

0

15

Toro 71-6410

INSULATOR-IGN MODULE

$12.99

$

Usually ships in 3-6 days

0

16

Toro 82-1660

WASHER-LOCK

$

$

Not available

17

Toro NN10394

Bolt
(Superseded to 71-6400)

$

$

Not available

18

Toro 59-0590

TERMINAL

$

$

Not available

19

Toro 92-0967

Stator (Incl. Ref. #18)

$394.99

$

Usually ships in 3-6 days

0

20

Toro 82-1500

Screw-HH
(Superseded to 71-6390)

$

$

Not available

21

Toro 57-9550

CLAMP

$

$

Not available

22

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

23

Toro 59-0360

TUBE-PORT, VACUUM

$

$

Not available

24

Toro 57-9750

WASHER

$

$

Not available

25

Toro NN10545

HEX-HEAD CAP SCREW

$

$

Not available

26

Toro 57-9580

SEAL

$

$

Not available

27

Toro NN10825

Kit-Gearcase (Incl. Ref. #1-3, 5-7, 9, 21-23 & 26)

$

$

Not available

28

Toro 59-1130

NUT-GEAR COVER

$

$

Not available

29

Toro 59-0790

STUD-GEAR COVER

$

$

Not available
