73501 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) FRONT AXLE AND STEERING Parts Diagram

Garden Tractor

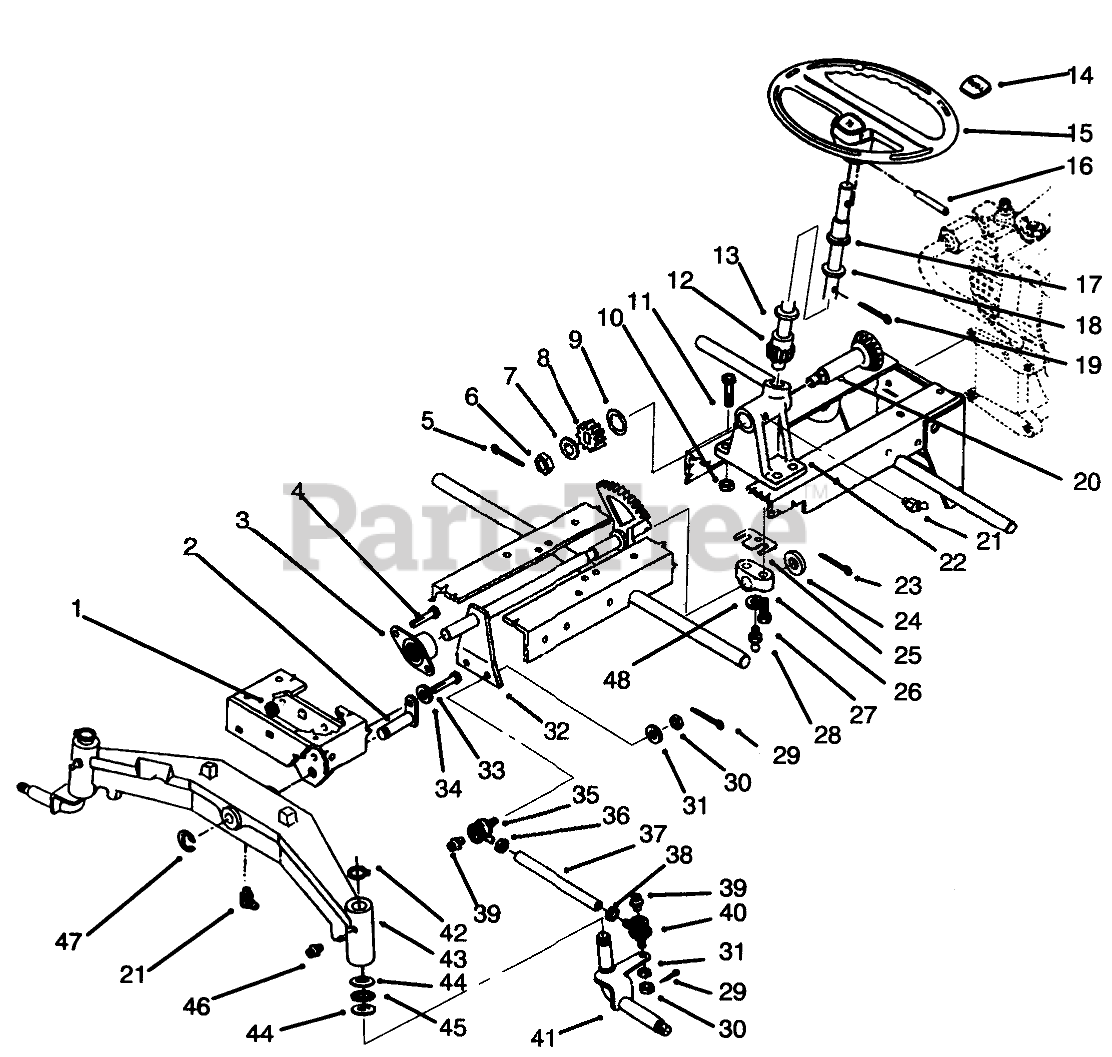

FRONT AXLE AND STEERING Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 6216

PIN AND PLATE ASM

$44.99

$

Usually ships in 3-6 days

0

3

Toro 6472

BEARING-FLANGED

$21.99

$

In Stock, only 2 left!

0

4

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

6

Toro 9150324

NUT-1/2X20
(Superseded to 32136-3)

$1.99

$

Usually ships in 3-6 days

0

7

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 78-1481

PINION-SPUR

$

$

Not available

9

Toro 9202624

WASHER

$8.99

$

Usually ships in 3-6 days

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 92-0995

WLDMT-STRG SHAFT

$370.99

$

Usually ships in 3-6 days

0

13

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

14

Toro 78-0370

STRG-WHL INSERT TORO

$

$

Not available

15

Toro 76-1420

Steering Wheel (Incl. Ref. #14)

$217.99

$

Usually ships in 3-6 days

0

16

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

17

Toro 109189

BEARING-FLANGED

$2.99

$

In Stock, Qty 20+

0

18

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

19

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

20

Toro 78-1450

WLDMT-C SHAFT

$

$

Not available

21

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

22

Toro 78-1411

Steering Support
(Superseded to 78-1411-03)

$

$

Not available

23

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, Qty 5

0

24

Toro 9202164

WSHR-.765X1.125X.060

$3.49

$

Usually ships in 3-6 days

0

25

Toro 78-1531

SHIM-.010

$

$

Not available

26

Toro 88-3240

BLOCK-BEARING

$

$

Not available

27

Toro 9080376

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

28

Toro 302-16

ZERK FITTING

$8.49

$

Usually ships in 3-6 days

0

29

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

30

Toro 915031

NUT

$1.49

$

Usually ships in 3-6 days

0

31

Toro 9202424

Spacer
(Superseded to 920242)

$6.49

$

Usually ships in 3-6 days

0

32

Toro 78-1490

Shaft
(Superseded to 78-1490-03)

$

$

Not available

33

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

34

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

35

Toro 112772

Tie Rod End-Thread RH (Incl. Ref. #30)
(Superseded to 112772-03)

$73.99

$

In Stock, only 1 left!

0

36

Toro 3220-11

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

37

Toro 112773

Tube
(Superseded to 112773-01)

$

$

Not available

38

Toro 112775

NUT-HEX JAM 9/16-18

$

$

Not available

39

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

40

Toro 112771

Tie Rod End-Thread LH (Incl. Ret. #30)
(Superseded to 112771-03)

$73.99

$

In Stock, only 1 left!

0

41

Toro 112764

Spindle
(Superseded to 112764-01)

$

$

Not available

Toro 112765

Spindle
(Superseded to 112765-01)

Note: Not illustrated

$

$

Not available

42

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

43

Toro 116823

Axle-Front
(Superseded to 116823-01)

$

$

Not available

44

Toro 9548

WASHER-THRUST

$

$

Not available

45

Toro 9865

BEARING-THRUST
(Superseded to 252-66)

$12.99

$

In Stock, only 2 left!

0

46

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

47

Toro 5618

E-RING

$0.99

$

In Stock, Qty 11

0

48

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0
