73501 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

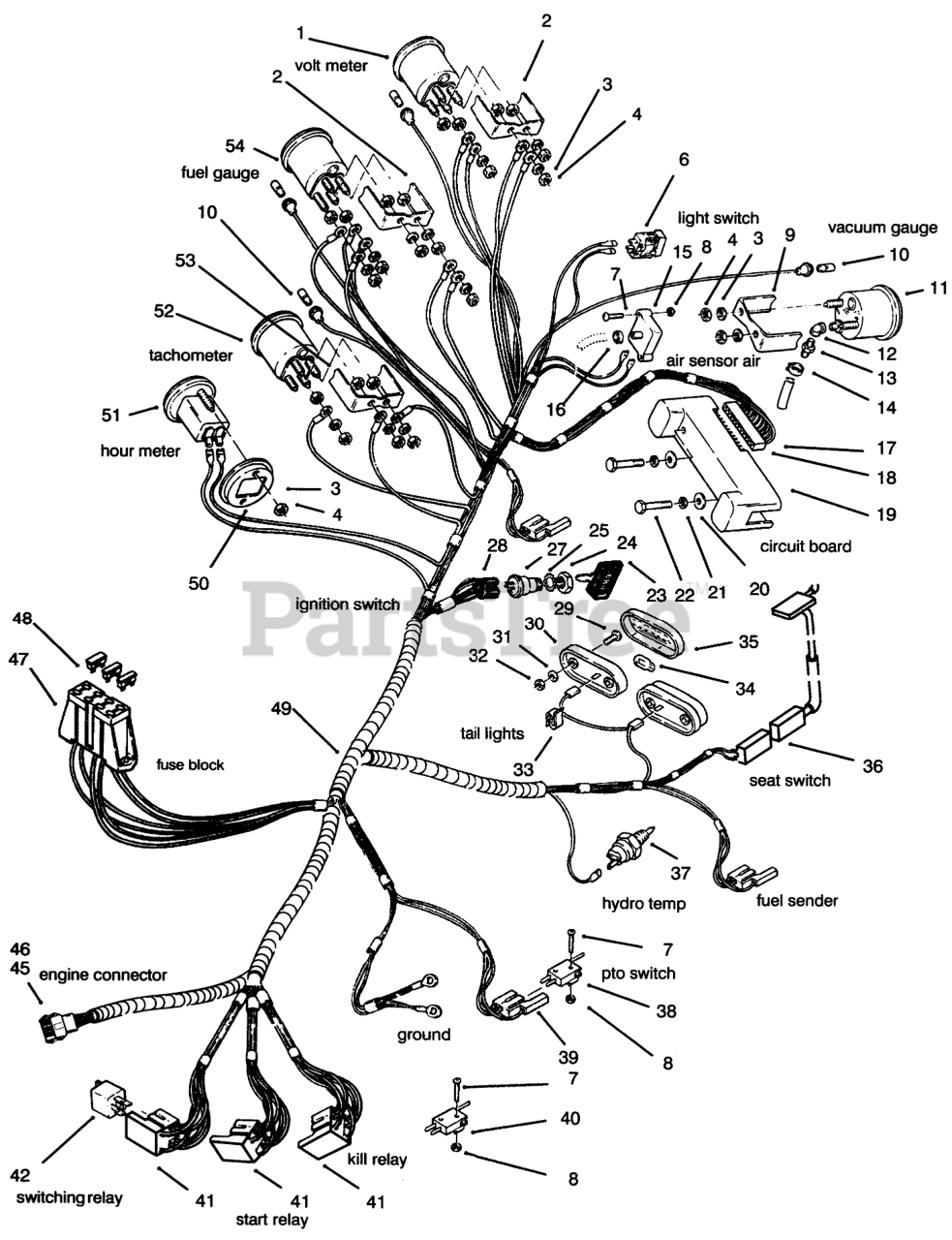

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 78-0030

Voltmeter (Incl. Ref. #2-4)
(Superseded to 17-8049)

$

$

Not available

2

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

3

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6

Toro 92-9844

SWITCH-HEADLIGHT
(Superseded to 107-9238)

$60.99

$

Usually ships in 3-6 days

0

7

Toro 9109482

Screw

$

$

Currently unavailable

8

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

9

Toro 78-0100

Bracket-Mounting

$

$

Currently unavailable

10

Toro 79-0450

LAMP-MINIATURE GE 53X

$

$

Not available

11

Toro 79-2660

Gauge-Vacuum (Incl. Ref. #3-4 & 9)

$

$

Not available

12

Toro 943021

ELBOW

$

$

Not available

13

Toro 105076

FITTING STRAIGHT

$

$

Not available

14

Toro 950154

Clamp

$

$

Not available

15

Toro 114270

SENSOR-AIR CLEANER

$

$

Not available

16

Toro 114767

CLAMP-HOSE 5/16"

$

$

Not available

17

Toro 114633

Terminal

$

$

Currently unavailable

18

Toro 114632

Connector-Male

$

$

Currently unavailable

19

Toro 79-2130

CIRCUIT-BRD 8 LIGHT

$

$

Not available

20

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

22

Toro 9107834

Screw

$

$

Currently unavailable

23

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, only 1 left!

0

24

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

25

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

27

Toro 111216

Switch-Ignition (Incl. Ref. #24-25)
(Superseded to 103990)

$28.99

$

In Stock, only 4 left!

0

28

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

29

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

30

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

31

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

33

Toro 3023

SPEED CLIP

$

$

Not available

34

Toro 109045

LIGHT BULB

$

$

Not available

35

Toro 112564

LENS-TAIL LIGHT

$9.99

$

In Stock, Qty 5

0

36

Toro 38-1420

SWITCH-SEAT

$

$

Not available

37

Toro 113193

SENSOR-HYDRO OIL HOT

$

$

Not available

38

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

39

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

40

Toro 115230

SWITCH - CLUTCH

$34.99

$

Usually ships in 3-6 days

0

41

Connector-Relay

$

$

Not available

42

Toro 116397

RELAY

$40.99

$

In Stock, only 1 left!

0

47

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$22.99

$

In Stock, only 1 left!

0

48

Toro 114594

FUSE-10 AMP

$

$

Not available

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

49

Toro 79-3630

WIRING-HARNESS & DIA

$

$

Not available

50

Toro 78-3320

CLAMP-HOUR METER

$11.99

$

Usually ships in 3-6 days

0

51

Toro 78-0020

Hourmeter (Incl. Ref. #3-4 & 49)
(Superseded to 66-2950)

$

$

Not available

52

Toro 78-0060

Tachometer (Incl. Ref. #1, 3-4 & 52)

$

$

Not available

53

Toro 78-0090

BRACKET - GAUGE MOUNT

$

$

Not available

54

Toro 78-0040

Gauge-Fuel (Incl. Ref. #2-4)
(Superseded to 95-3830)

$215.99

$

Usually ships in 3-6 days

0

Toro 117257

TIE-WRAP SNAP IN

Note: Not illustrated

$

$

Not available
