73501 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) AIR CLEANER Parts Diagram

Garden Tractor

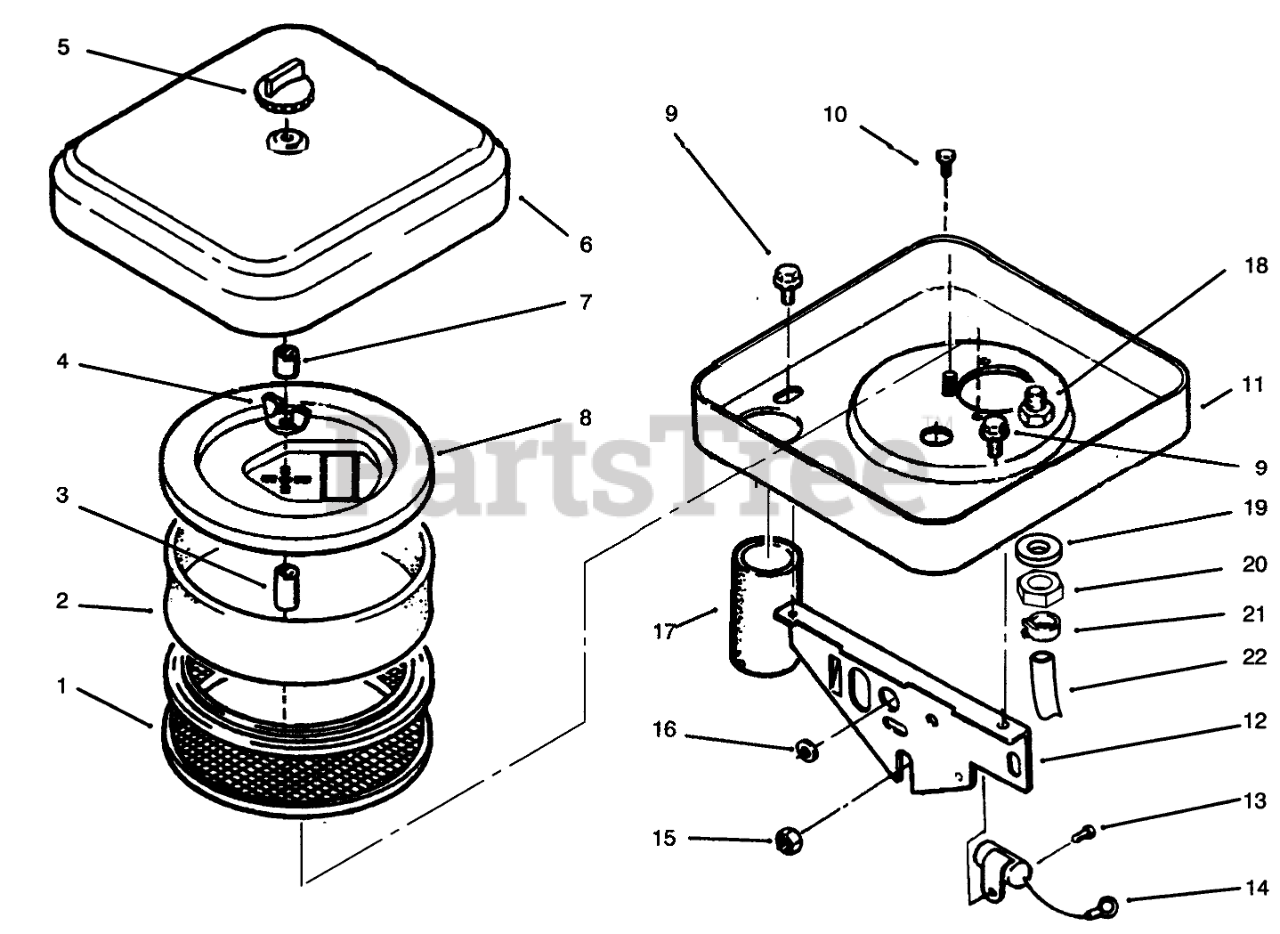

AIR CLEANER Parts Diagram

  • Title

1

Toro NN10774

AIR-CLEANER ELEMENT

$50.99

$

In Stock, only 2 left!

0

2

Toro NN10176

AIR CLEANER ELEMENT

$

$

Not available

3

Toro 79-6510

SPACER-1" LG

$

$

Not available

4

Toro 92-0913

1/4-20 WING NUT

$

$

Not available

5

Toro 82-1670

KNOB

$

$

Not available

6

Toro NN10446

CHROME-AIR CLEANER

$

$

Not available

Toro 94-1840

COVER - AIR CLEANER

Note: Not illustrated

$182.99

$

Usually ships in 3-6 days

0

7

Toro 79-6520

SPACER-RUBBER

$

$

Not available

8

Toro 82-0650

ELEMENT COVER KIT

$

$

Not available

9

Toro 82-1550

SCREW-TAPPING

$

$

Not available

10

Toro 92-0915

MACHINE SCREW

$

$

Not available

11

Toro 79-6330

AIR-CLEANER HOUSING

$

$

Not available

12

Toro 79-6340

SUPPORT-AIR CLEANER

$

$

Not available

13

Toro NN10390

SCREW #10-32 X 5/8

$

$

Not available

14

Toro 59-1180

CONDENSER

$42.99

$

In Stock, only 1 left!

0

15

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

16

Toro 71-6140

GROMMET

$

$

Not available

17

Toro NN10187

AIR INTAKE TUBE

$

$

Not available

18

Toro NN10239

Fitting-Barbed
(Superseded to 71-6480)

$

$

Not available

19

Toro NN10190

HOSE FITTING GASKET

$

$

Not available

20

Toro NN10132

TAPPET NUT

$

$

Not available

21

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

22

Toro NN10447

HOSE

$

$

Not available
