73501 (520-H) - Toro Garden Tractor (SN: 059002947 - 059999999) (1995) HYDROSTATIC TRANSMISSION Parts Diagram

Garden Tractor

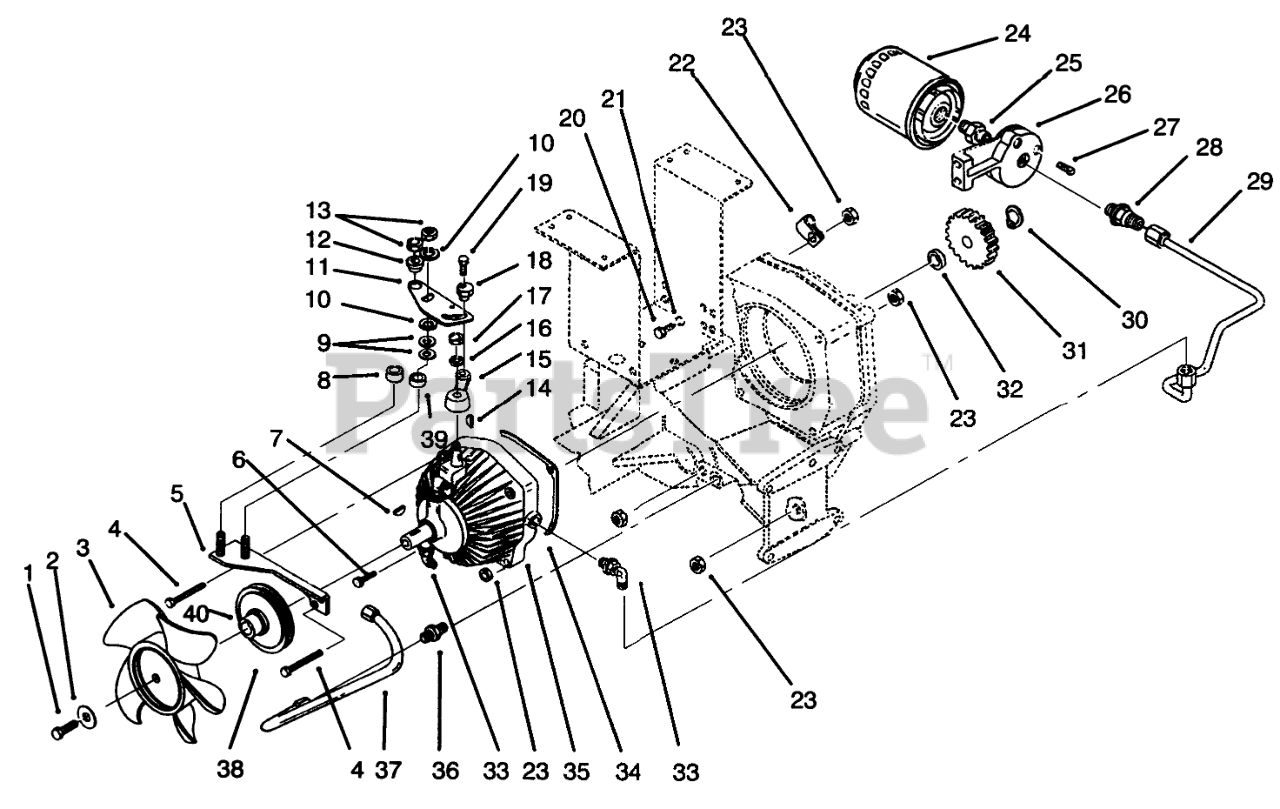

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title
1

Toro 9080026

SCREW-HEX HD CAP
(Superseded to 110-9381)

$1.99

$

In Stock, only 3 left!

0

2

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

3

Toro 108393

NYLON FAN-L-CW

$41.99

$

In Stock, only 3 left!

0

4

Toro 323-25

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

5

Toro 108329

ASSY-PLATE B

$

$

Not available

6

$

$

Currently unavailable

7

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

8

Toro 108326

SPACER-PIVOT

$23.99

$

Usually ships in 3-6 days

0

9

Toro 100365

WASHER-SPRING DISC

$

$

Not available

10

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

11

Toro 108333

CAM-SPEED CONTROL (NS)

$43.99

$

In Stock, only 1 left!

0

12

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

13

$6.49

$

In Stock, only 2 left!

0

14

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

15

Toro 108325

ARM-SPEED CONTROLB
(Superseded to 108325-03)

$77.99

$

Usually ships in 3-6 days

0

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

18

$

$

Not available

19

Toro 9080196

Screw-HH

$

$

Currently unavailable

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 79-5270

OIL FILTER ASM

$21.99

$

In Stock, only 4 left!

0

25

Toro 5991

FITTING

$

$

Not available

26

Toro 108323

BASE-FILTER

$245.99

$

Usually ships in 3-6 days

0

27

$18.99

$

Usually ships in 3-6 days

0

28

Toro 102628

Fitting-Hyd., Straight (Incl. "O" Ring)

$

$

Not available

Toro 973370

0-Ring
(Superseded to 237-42)

Note: Not illustrated

$3.49

$

In Stock, Qty 20+

0

29

Toro 79-5020

ASS'Y-TUBE FILTER

$

$

Not available

30

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 20+

0

31

Toro 109751

GEAR 20 TEETH DRIVE

$

$

Not available

32

Toro 108366

SPACER GEAR

$

$

Not available

33

Toro 108365

ELBOW
(Superseded to 103-1802)

$23.99

$

In Stock, only 2 left!

0

34

Toro 108319

GASKET

$10.99

$

In Stock, only 2 left!

0

35

Toro 108368

Pump & Motor
(Superseded to 92-9848)

$

$

Not available

Toro 92-9848

TRANSMISSION-PUMP

Note: Not illustrated

$

$

Not available

36

Toro 108364

FITTING-TUBE

$

$

Not available

37

Toro 111217

ASSY-TUBE SUCTION

$

$

Not available

38

Toro 108316

PULLEY

$

$

Not available

39

Toro 108327

SPACER-FRICTION

$2.99

$

Usually ships in 3-6 days

0

40

Toro 3242-2

SCREW-SQH

Note: Not illustrated

$1.99

$

In Stock, only 3 left!

0
