73501 (520-H) - Toro Garden Tractor (SN: 059002869 - 059002946) (1995) SEAT, FENDER AND FENDER SUPPORTS Parts Diagram

Garden Tractor

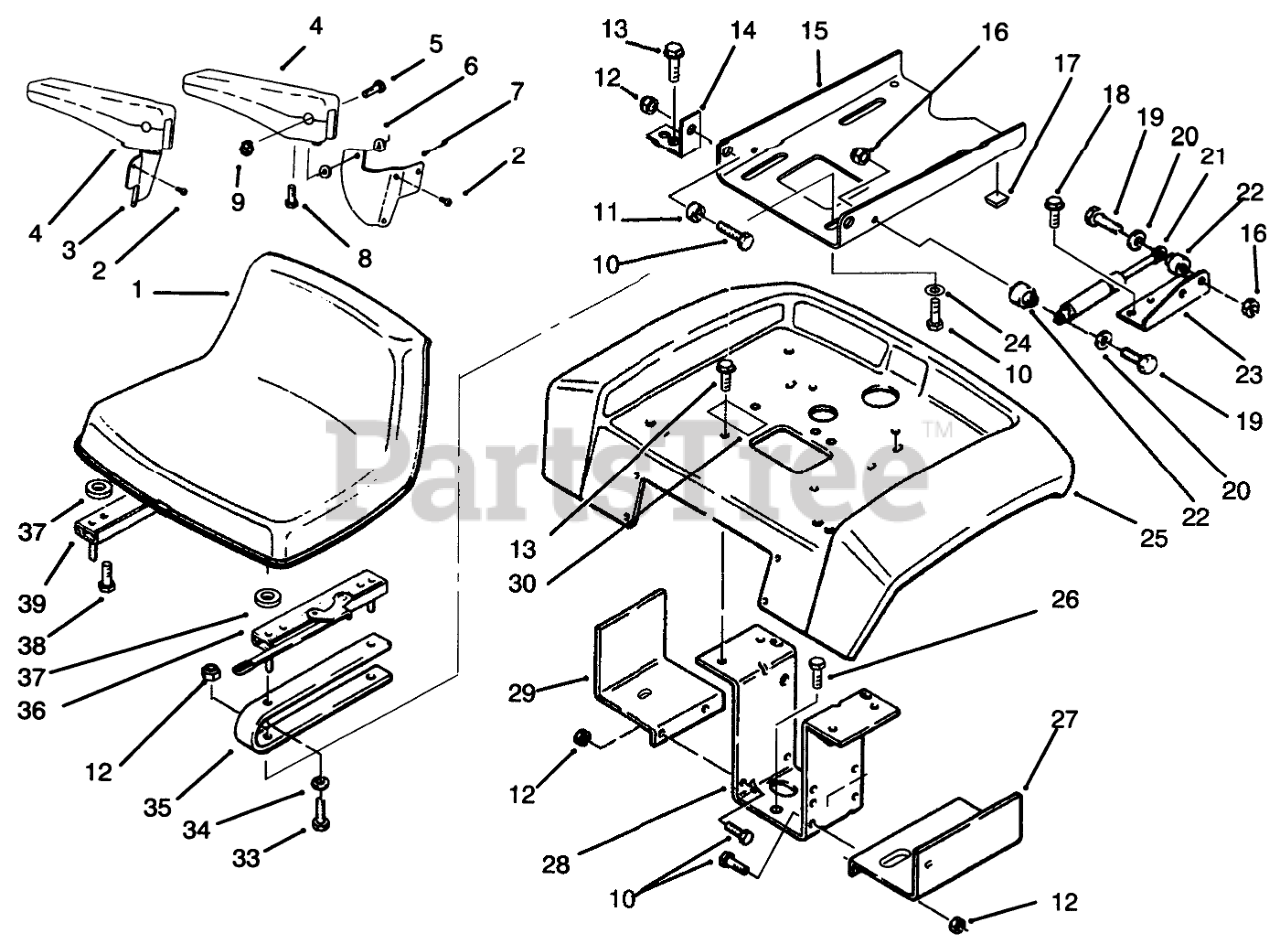

SEAT, FENDER AND FENDER SUPPORTS Parts Diagram

  • Title
1

Toro 88-3220

Seat
(Superseded to 98-1625)

$

$

Not available

2

Toro 92-0992

3/8-16 X 5/8 SCREW

$

$

Not available

3

Toro 92-0987

RH ARM BRACKET

$170.99

$

Usually ships in 3-6 days

0

4

Toro 92-0988

ARMREST

$

$

Not available

5

Toro 92-0989

3/8-16X1-1/2 SCREW

$

$

Not available

6

Toro 92-0993

NYLON SPACER

$

$

Not available

7

Toro 92-0986

LH ARM BRACKET

$

$

Not available

8

Toro 92-0990

3/8-16 X 3/4 SCREW

$

$

Not available

9

Toro 92-0991

3/8-16 ACORN LOCKNUT

$

$

Not available

10

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

14

Toro 105524

BRACKET-PIVOT

$

$

Not available

15

Toro 78-2990

Plate-SeatPivot
(Superseded to 78-2990-03)

$

$

Not available

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

18

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

19

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 114343

GAS SPRING

$133.99

$

In Stock, only 1 left!

0

22

Toro 114344

SPACER

$2.49

$

Usually ships in 3-6 days

0

23

Toro 114345

BRACKET-CYLINDER R

$

$

Not available

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 110960

Fender
(Superseded to 94-3722-01)

$

$

Not available

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$38.99

$

Usually ships in 3-6 days

0

28

Toro 79-4990

Bracket-Fender
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0

29

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$53.99

$

Usually ships in 3-6 days

0

30

Toro 116446

DECAL-DO NOT TOW

$7.49

$

In Stock, only 1 left!

0

33

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

35

Toro 114263

Seat Spring
(Superseded to 114263-03)

$195.99

$

In Stock, only 1 left!

0

36

Toro 114264

Adjuster-Seat
(Superseded to 93-0319)

$

$

Not available

37

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

38

$

$

Currently unavailable

39

Toro 114265

ADJUSTER-R.H. SEAT

$

$

Not available

Toro 88-3230

Kit-Armrest (Incl. Ref. #2-9)

$

$

Not available
