73501 (520-H) - Toro Garden Tractor (SN: 059002869 - 059002946) (1995) CARBURETOR ASSEMBLY Parts Diagram
Garden Tractor

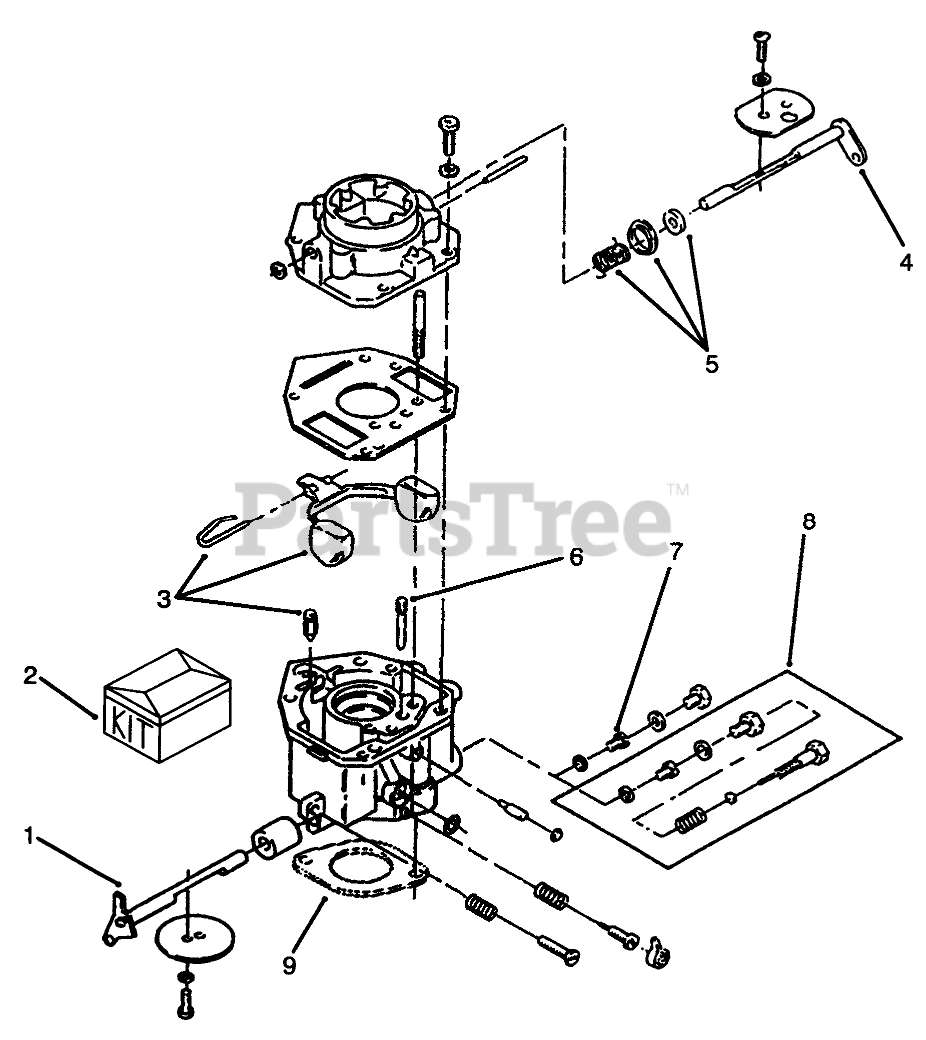

CARBURETOR ASSEMBLY Parts Diagram
Toro NN10811
Kit-Shaft, Throttle (Incl. Valve Setscrew, Air Filter, & Throttle Valve)
$
$
Not available
Toro 82-0780
Kit-Repair (Incl. Screw & Plug Package, Gasket Package, Float Valve, Idle Adj. Needle & Spring, Mounting Gaskets, & Idle Limit Cap)
$716.99
$
Usually ships in 3-6 days
Toro 62-2800
Kit-Float (Incl. Float, Pin & Valve) Before Serial No 5902947
$164.99
$
Usually ships in 3-6 days
Toro 72-3860
Kit-Shaft, Choke (Incl. Choke Valve, Valve Setscrew, & Air Filter)
$
$
Not available
Toro 72-3870
Kit-Lever, Choke (Incl. Choke Lever Ring, Choke Spring, & Choke Collar)
$
$
Not available
Toro NN10859
IDLE-JET
$
$
Not available
Toro 57-9050
POWER JET
$
$
Not available
Toro NN10858
FIXED-JET
$
$
Not available
Toro 82-0850
GASKET-CARBURETOR
$12.99
$
In Stock, only 1 left!
