73501 (520-H) - Toro Garden Tractor (SN: 059000412 - 059002868) (1995) WHEELS AND TIRES Parts Diagram

Garden Tractor

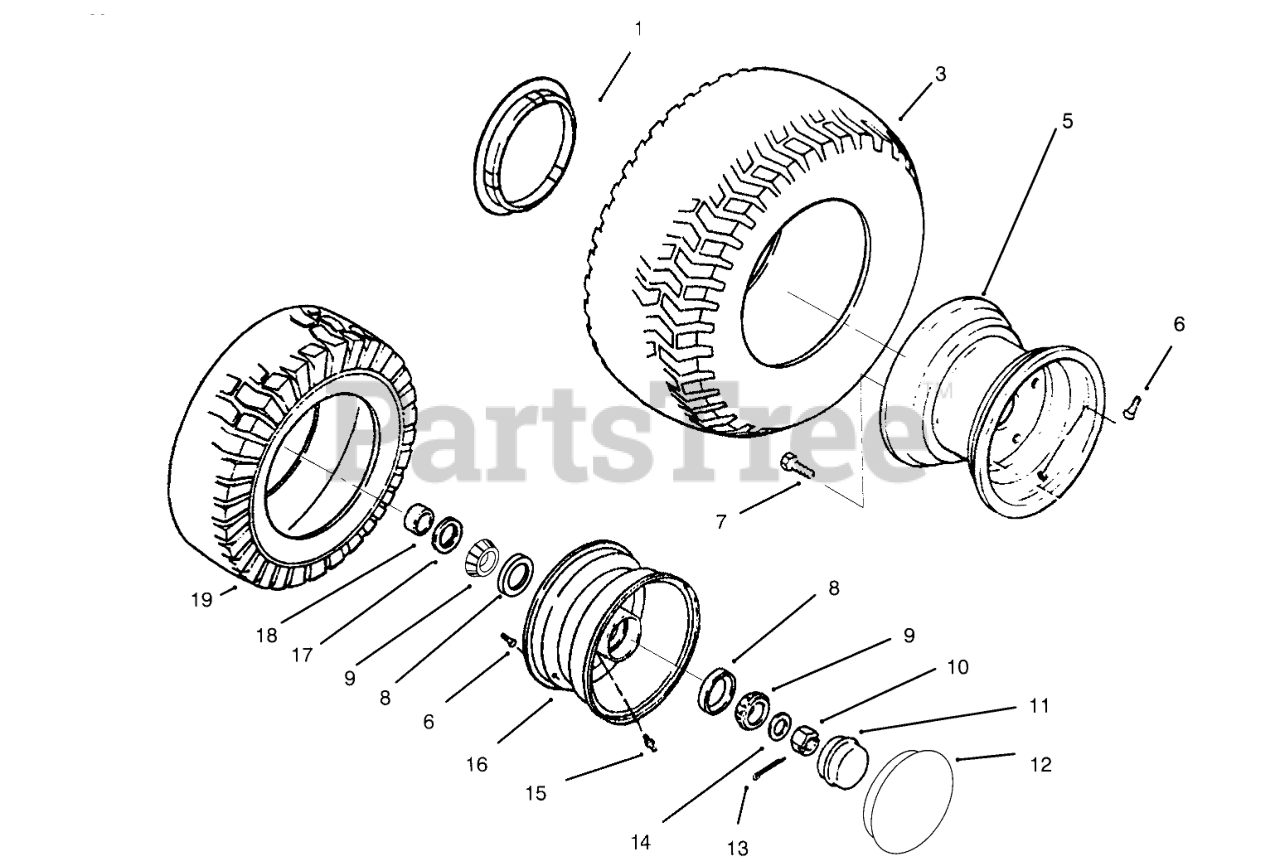

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 114428

12"-HUB CAP LOGO

$

$

Not available

3

Toro 116971

TIRE 23 X 10.50-12

$

$

Not available

5

Toro 110680

RIM ASM

$

$

Not available

6

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

7

Toro 83-2720

BOLT-LUG

$4.99

$

In Stock, only 4 left!

0

8

Toro 112821

Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 20+

0

9

Toro 112823

Bearing
(Superseded to 254-94)

$9.49

$

In Stock, Qty 16

0

10

Toro 32136-5

NUT-HEX, SLOTTED

$8.49

$

In Stock, only 1 left!

0

11

Toro 112825

DUST CAP

$

$

Not available

12

Toro 114427

8"-HUB CAP LOGO

$

$

Not available

13

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

14

Toro 9202254

WASHER

$3.99

$

In Stock, only 2 left!

0

15

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

16

Toro 117287

Wheel-Front (Includes Item 15 & Qty.2 of item 8)

$

$

Not available

17

Toro 112822

Seal
(Superseded to 93-9807)

$27.99

$

In Stock, only 3 left!

0

18

Toro 112824

SPACER

$

$

Not available

19

Toro 116967

Tire-Turf Tray, Front 12 X 7.5-8

$

$

Not available
