73501 (520-H) - Toro Garden Tractor (SN: 059000412 - 059002868) (1995) PTO CLUTCH & CONTROL Parts Diagram

Garden Tractor

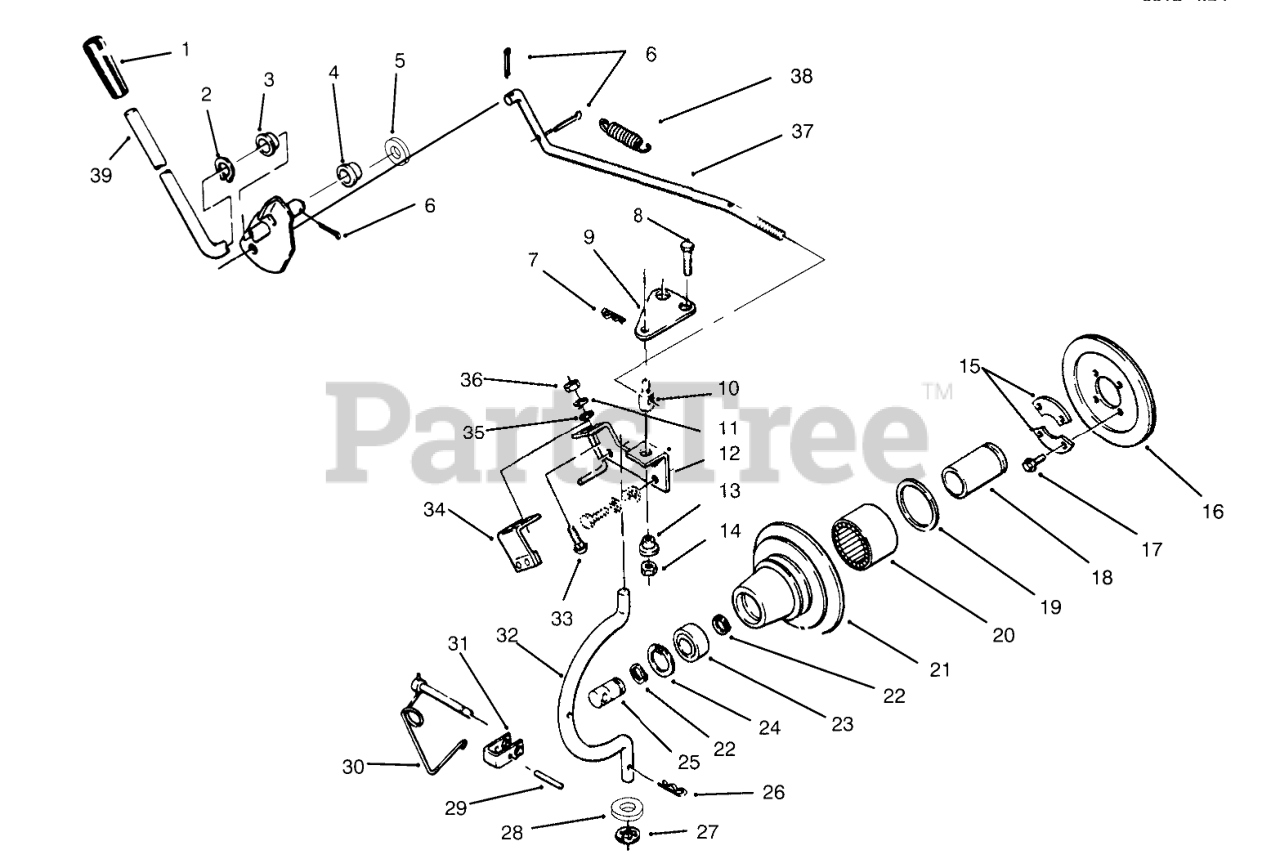

PTO CLUTCH & CONTROL Parts Diagram

  • Title
1

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

2

Toro 32151-11

RING-EXT GRIP

$11.99

$

In Stock, Qty 5

0

3

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, only 4 left!

0

4

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

5

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

6

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

7

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

8

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 110669

PLATE

$29.99

$

Usually ships in 3-6 days

0

10

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 113874

Bracket-Engine
(Superseded to 113874-03)

$

$

Not available

13

Toro 104859

SPACER-LIFT LINK

$51.99

$

Usually ships in 3-6 days

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

15

Toro 6659

RETAINER

$19.99

$

In Stock, only 2 left!

0

16

Toro 114881

Facing-Clutch
(Superseded to 94-6650)

$182.99

$

Usually ships in 3-6 days

0

17

Toro 9080026

SCREW-HEX HD CAP
(Superseded to 110-9381)

$1.99

$

In Stock, only 3 left!

0

18

Toro 6658

RACE-BEARING

$

$

Not available

19

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

20

Toro 6662

Seal
(Superseded to 106769)

$60.99

$

Usually ships in 3-6 days

0

21

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

22

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

23

Toro 109842

BEARING-BALL

$31.99

$

In Stock, only 1 left!

0

24

Toro 32120-62

RING-RETAINING

$4.99

$

In Stock, Qty 8

0

25

Toro 102872

SHAFT-PTO

$31.99

$

In Stock, only 1 left!

0

26

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

27

Toro 106695

RING-REINFORCED CIRC

$2.49

$

In Stock, only 4 left!

0

28

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

29

$1.99

$

In Stock, Qty 8

0

30

Toro 111314

LOCKING PIN ASM

$27.99

$

In Stock, only 1 left!

0

31

Toro 113107

CLEVIS

$27.99

$

In Stock, only 1 left!

0

32

Toro 113108

ROD-HOUSING

$133.99

$

Usually ships in 3-6 days

0

33

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

34

Toro 110665

ASM-Bracket
(Superseded to 94-6652)

$45.99

$

In Stock, only 2 left!

0

35

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

37

Toro 111052

ROD-PTO CLUTCH

$82.99

$

Usually ships in 3-6 days

0

38

Toro 103125

SPRING

$9.99

$

In Stock, only 3 left!

0

39

Toro 111234

ASSY PTO CLUTCH LEVE

$

$

Not available
