73501 (520-H) - Toro Garden Tractor (SN: 059000412 - 059002868) (1995) FUEL TANK AND FUEL PUMP Parts Diagram

Garden Tractor

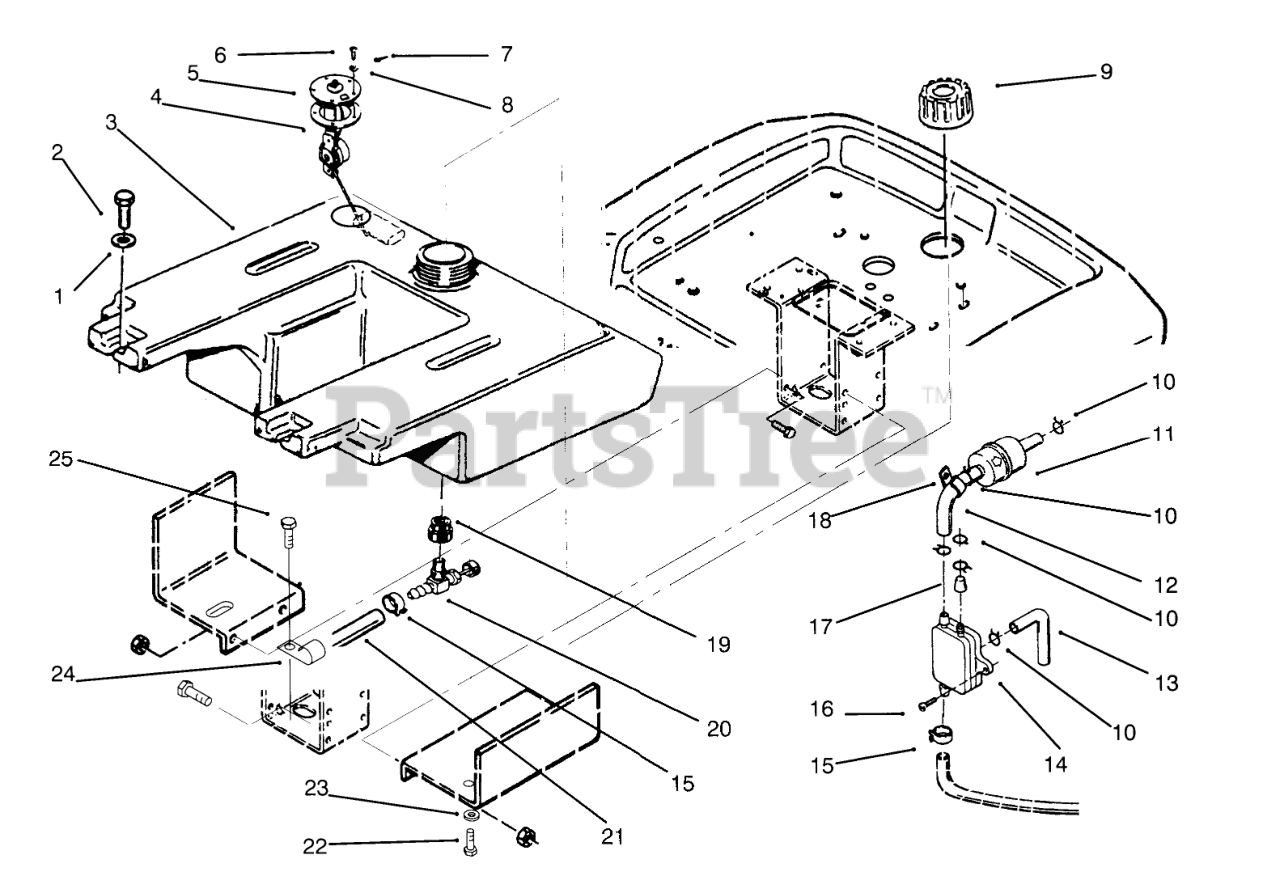

FUEL TANK AND FUEL PUMP Parts Diagram

  • Title

1

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

2

Toro 926794

Bolt

$

$

Currently unavailable

3

Toro 114012

Tank-Fuel (Incl. Ref.# 19 & 20)

$

$

Not available

4

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 2 left!

0

5

Toro 113358

SENDER-FUEL LEVEL

$

$

Not available

6

Toro 910807

Screw
(Superseded to 3250-31)

$0.99

$

Usually ships in 3-6 days

0

7

Toro 79-3180

TERMINAL-GROUND

$

$

Not available

8

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

9

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

10

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

11

Toro NN10506

Filter-Fuel
(Superseded to 71-5960)

$32.99

$

In Stock, Qty 7

0

12

Toro NN10790

Hose
(Superseded to 92-5868)

$

$

Not available

13

Toro NN10302

Hose
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

14

Toro NN10212

Fuel Pump
(Superseded to 57-9080)

$

$

Not available

15

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

16

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

17

Toro NN10211

Cap
(Superseded to 59-0370)

$

$

Not available

18

Toro 105490

CLAMP

$

$

Not available

19

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

20

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

21

Toro 110521

FUEL HOSE 75" OF 6554

$

$

Not available

22

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

25

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0
