73501 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000411) (1995) FRONT & MID HITCH ASSEMBLY Parts Diagram

Garden Tractor

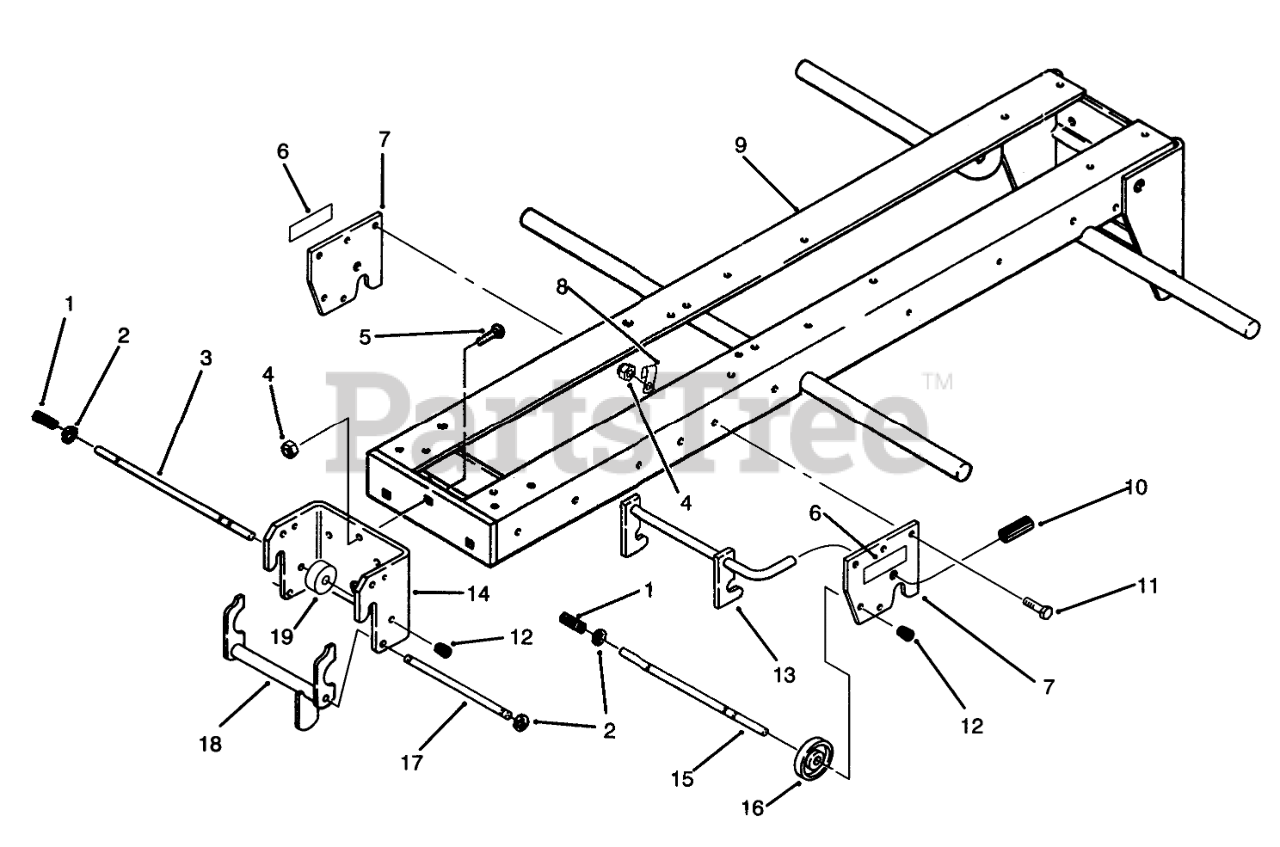

FRONT & MID HITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

2

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

3

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

6

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.49

$

In Stock, only 1 left!

0

7

Toro 102644

Hitch Plate
(Superseded to 102644-01)

$32.99

$

Usually ships in 3-6 days

0

8

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

9

Toro 78-2680

WELD FRAME R

$

$

Not available

10

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

11

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

12

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

13

Toro 117930

MID HITCH ASM

$95.99

$

In Stock, only 1 left!

0

14

Toro 101711

Front Hitch
(Superseded to 101711-01)

$115.99

$

Usually ships in 3-6 days

0

15

Toro 83-6520

ROD-LOCK

$45.99

$

Usually ships in 3-6 days

0

16

Toro 101017

LOCK

$31.99

$

Usually ships in 3-6 days

0

17

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

18

Toro 93-1613

LATCH

$

$

Not available

19

Toro 101707

LOCK

$

$

Not available
