73501 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) THROTTLE CHOKE AND FUEL CONTROLS Parts Diagram

Garden Tractor

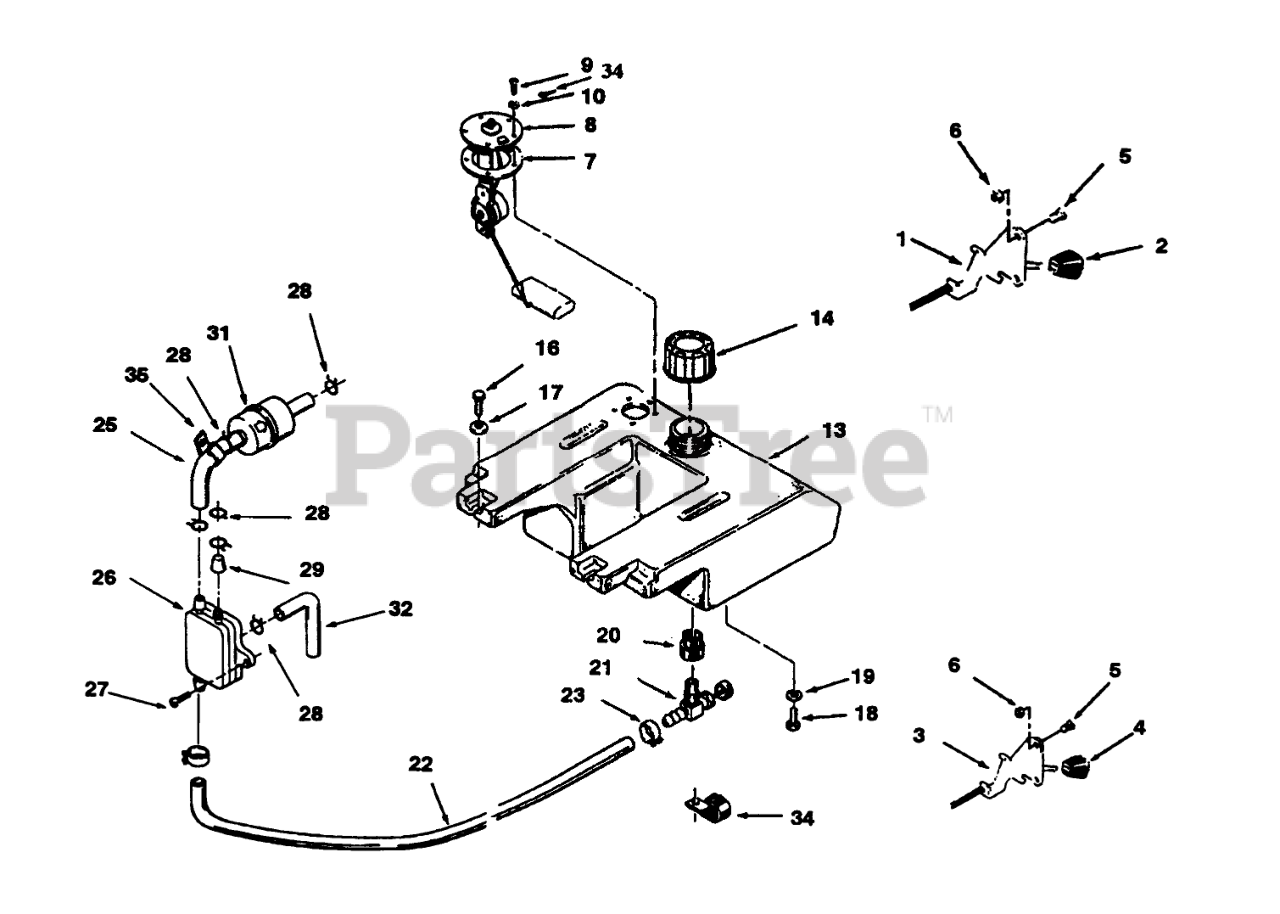

THROTTLE CHOKE AND FUEL CONTROLS Parts Diagram

  • Title
1

Toro 115392

CONTROL-THROTTLE

$112.99

$

In Stock, only 3 left!

0

2

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

3

Toro 114027

CONTROL-CHOKE

$

$

Not available

4

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

5

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

6

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

7

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 1 left!

0

8

Toro 113358

SENDER-FUEL LEVEL

$

$

Not available

9

Toro 910807

Screw
(Superseded to 3250-31)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

13

Toro 114012

Tank-Fuel (Includes Items 20 & 21)

$

$

Not available

14

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

16

$

$

Currently unavailable

17

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

21

Toro 104048

VALVE-FUEL

$36.99

$

In Stock, Qty 9

0

22

Toro 110521

FUEL HOSE 75" OF 6554

$

$

Not available

23

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

Toro 105490

CLAMP

$

$

Not available

24

Toro 950154

Clamp

$

$

Not available

25

Toro NN10790

Hose
(Superseded to 92-5868)

$

$

Not available

26

Toro NN10212

Fuel Pump
(Superseded to 57-9080)

$

$

Not available

27

Toro 59-1050

SCREW-TAPPING PAN HD

$

$

Not available

28

Toro 82-1080

CLAMP-HOSE

$7.49

$

In Stock, only 3 left!

0

29

Toro NN10211

Cap
(Superseded to 59-0370)

$

$

Not available

30

Toro NN10301

Clamp
(Superseded to 57-9550)

$

$

Not available

31

Toro NN10506

Filter-Fuel
(Superseded to 71-5960)

$32.99

$

In Stock, Qty 6

0

32

Toro NN10302

Hose
(Superseded to 71-6100)

$11.99

$

Usually ships in 3-6 days

0

34

Toro 79-3180

TERMINAL-GROUND

$

$

Not available

35

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

Toro 79-4100

CAP-RUBBER

$1.99

$

Usually ships in 3-6 days

0
