73501 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

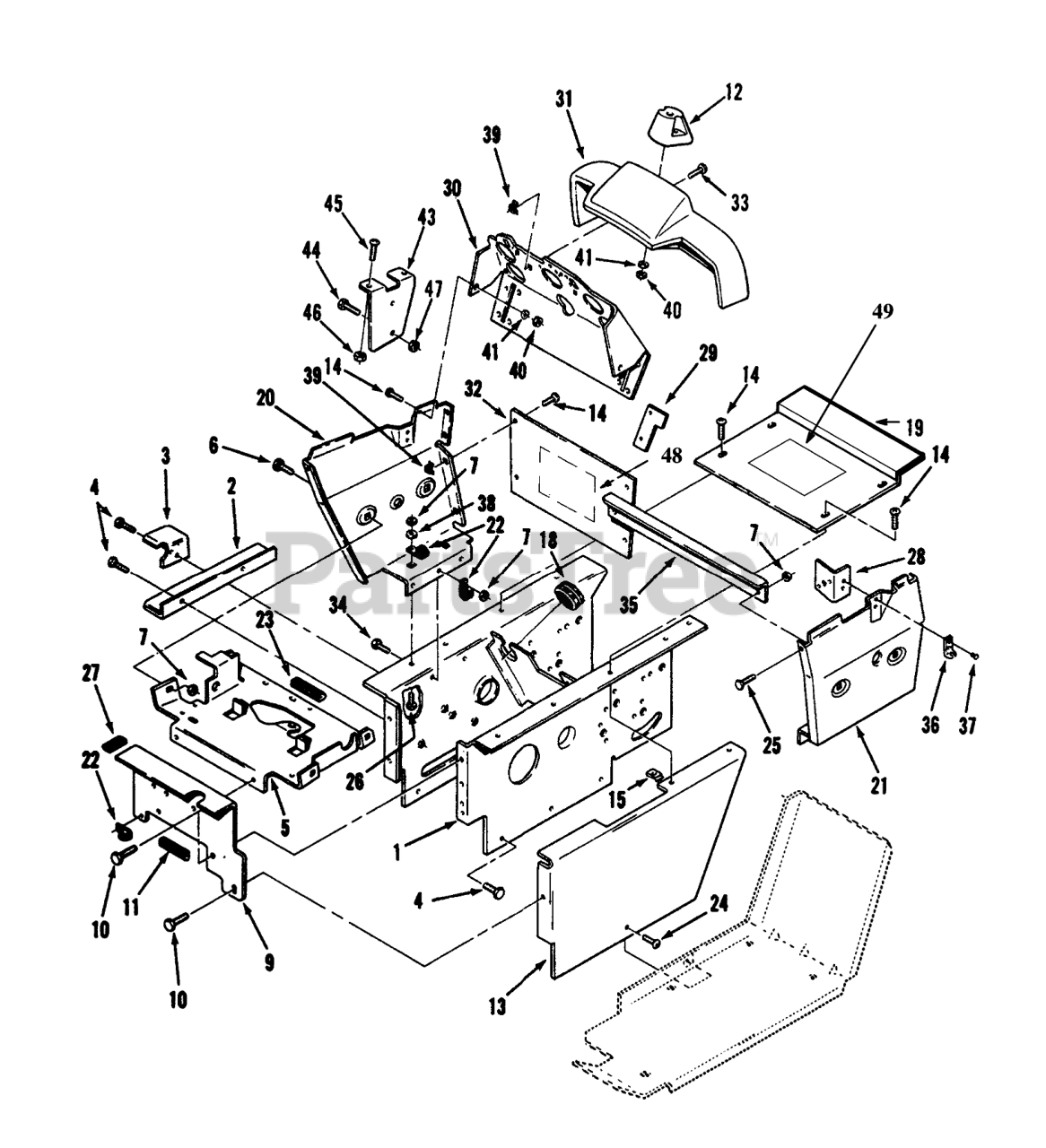

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 79-5120

Hoodstand
(Superseded to 79-5120-03)

$

$

Not available

2

Toro 114871

ANGLE-BELT GUARD B

$

$

Not available

3

Toro 106261

Belt Bracket
(Superseded to 88-2170-03)

$7.49

$

Usually ships in 3-6 days

0

4

Toro 926694

SCREW

$

$

Not available

5

Toro 116309

WLD-SUPPORTB

$

$

Not available

6

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

9

Toro 79-4020

Plate-Front
(Superseded to 79-4020-03)

$

$

Not available

10

Toro 926694

SCREW

$

$

Not available

11

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

12

Toro 118410

COVER-STEERING SHAFT

$

$

Not available

13

Toro 79-5130

Cover-Side LH
(Superseded to 79-5130-01)

$

$

Not available

14

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

18

Toro 104248

GROMMET

$11.99

$

Usually ships in 3-6 days

0

19

Toro 92-7293

Plate-Hoodstand, Top (Incl. Ref. #49)

$

$

Not available

20

Toro 113962

Panel-RH
(Superseded to 113962-03)

$96.99

$

In Stock, only 1 left!

0

21

Toro 79-4890

Panel-LH
(Superseded to 79-4890-03)

$

$

Not available

22

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

23

Toro 110142

EDGE TRIM 5" OF 102896

$

$

Not available

24

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

25

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

26

Toro 900036

CARRIAGE BOLT -4

$1.99

$

Usually ships in 3-6 days

0

27

Toro 102896

EDGE TRIM-BULK

$

$

Not available

28

Toro 114628

BRACKET-SWITCH SU

$

$

Not available

29

Toro 114641

STOP-CHOKE

$

$

Not available

30

Toro 117267

ASM-Panel
(Superseded to 117267-03)

$

$

Not available

31

Toro 121357

Kit-Console Cover (Contains #115620 5-Gauge Cover, #118410 Steering Cover, (4) 118780 Screw #6 Plastite, & (4) 920270 Washers)

$

$

Not available

32

Toro 92-7295

Plate-Rear Hoodstand (Incl. Ref. #48)

$

$

Not available

33

Toro 910839

Screw
(Superseded to 9108392)

$

$

Not available

34

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

35

Toro 113932

STIFFENER-PANEL B

$

$

Not available

36

Toro 117343

KEEPER-LATCH

$4.49

$

In Stock, only 2 left!

0

37

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

Toro 117433

RIVET-POP

$

$

Not available

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Toro 32115-5

NUT-RETAINED

$6.49

$

Usually ships in 3-6 days

0

40

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

41

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 117191

Bracket-Holder
(Superseded to 117191-03)

$

$

Not available

44

Toro 910794

BOLT

$

$

Not available

45

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

47

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

48

Toro 88-0030

DECAL - DANGER

$

$

Not available

49

Toro 79-0370

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0
