73501 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) FRAME Parts Diagram

Garden Tractor

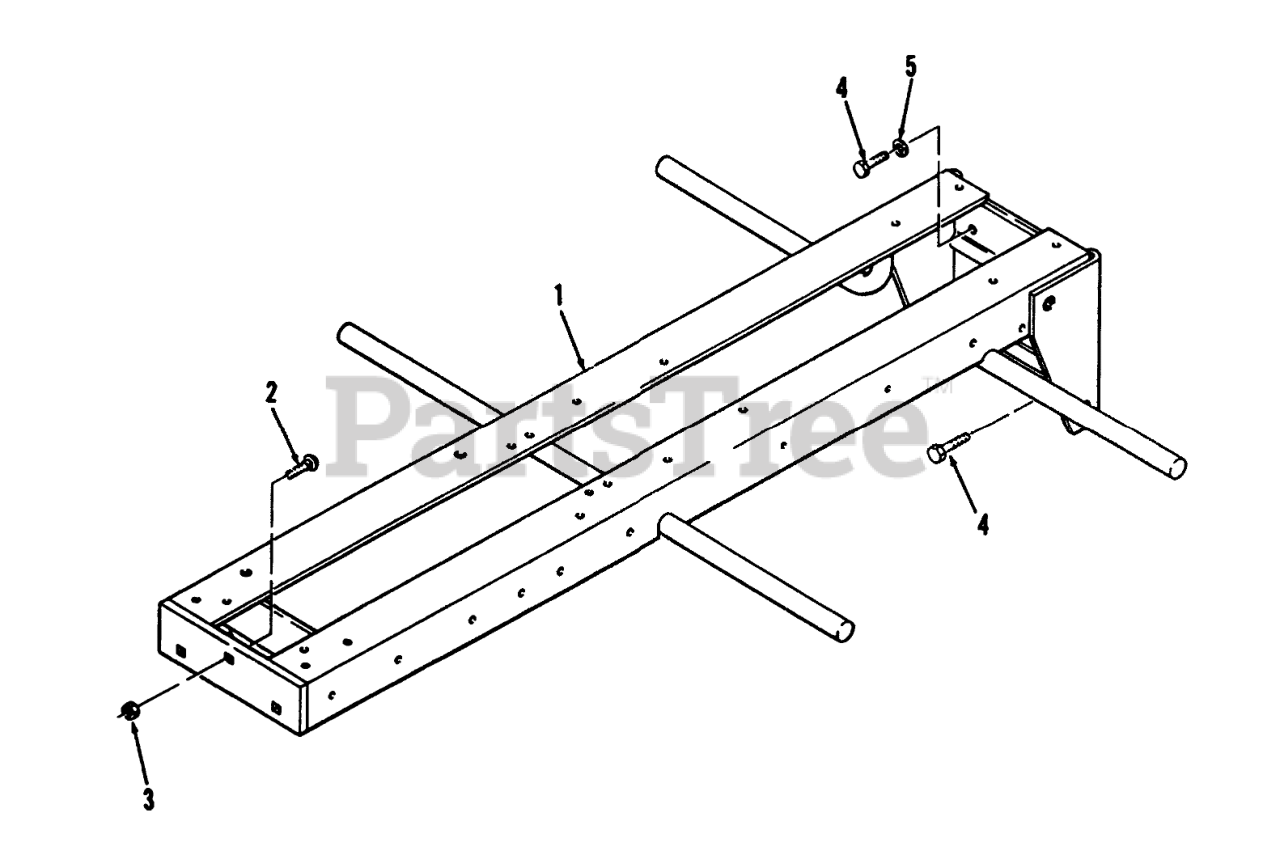

FRAME Parts Diagram

  • Title
1

Toro 78-1570

WLDMT-FRAME R

$

$

Not available

2

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 32353-21

Washer-Lock 3/8

$

$

Currently unavailable
