73501 (520-H) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) ENGINE AND EXHAUST Parts Diagram

Garden Tractor

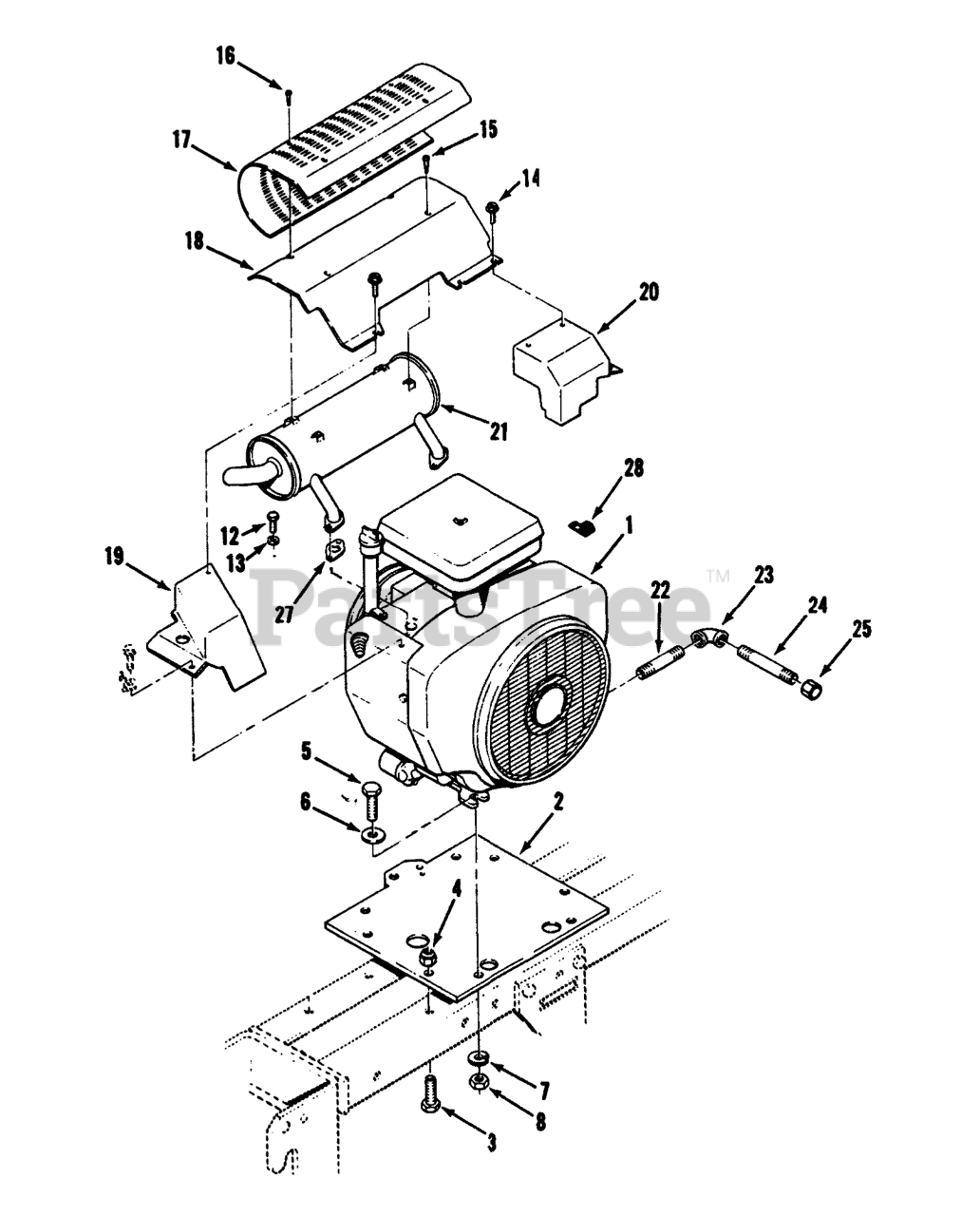

ENGINE AND EXHAUST Parts Diagram

  • Title

1

Toro 79-5220

Engine-20HP
(Superseded to 95-7691)

$

$

Not available

2

Toro 116609

PLATE-ENGINE B

$129.99

$

Usually ships in 3-6 days

0

3

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

8

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 913136

HEX WASHER HD SCREW

$

$

Not available

15

Toro 910331

Screw
(Superseded to 9103312)

$2.49

$

In Stock, Qty 6

0

16

Toro 114888

SCW 10-24 STAINLESS

$

$

Not available

17

Toro 115783

SHIELD

$

$

Not available

18

Toro 114217

Air Deflector
(Superseded to 94-1803)

$

$

Not available

19

Toro 114249

COVER EXHAUST LH
(Superseded to 114215-03)

$

$

Not available

20

Toro 114248

COVER EXHAUST RH
(Superseded to 114215-03)

$

$

Not available

21

Toro 116471

MUFFLER-EXHAUST

$1452.99

$

Usually ships in 3-6 days

0

22

Toro 289-45

NIPPLE-PIPE

$23.99

$

Usually ships in 3-6 days

0

23

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

In Stock, only 1 left!

0

24

Toro 114763

PIPE-NIPPLE 3/8 X 4"

$15.99

$

In Stock, only 1 left!

0

25

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

27

Toro 579210

Gasket-Exhaust

$

$

Currently unavailable

28

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0
