735 - BCS America Two-Wheeled Tractor Handlebar (SN: 74800 & Above) Parts Diagram

Two-Wheeled Tractor

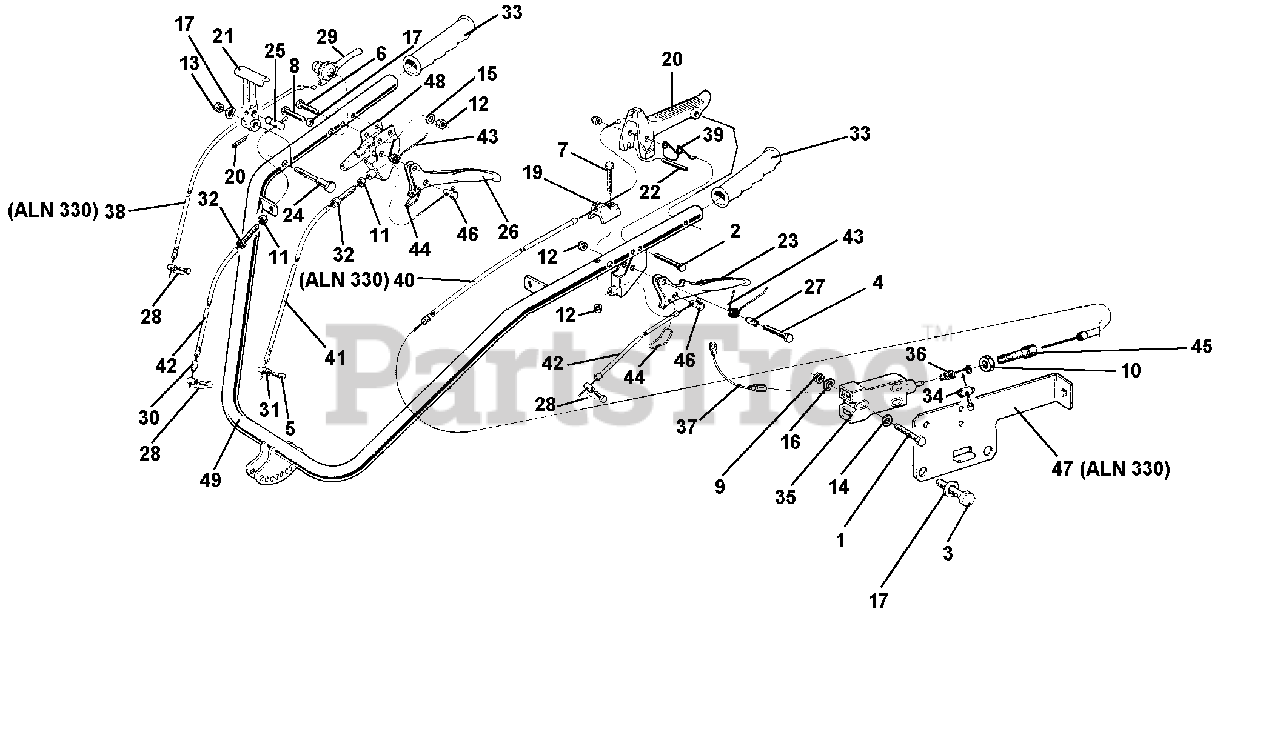

Handlebar (SN: 74800 & Above) Parts Diagram

  • Title

1

BCS America 311.11086

SCREW TE M4 X 25

$1.49

$

In Stock, Qty 8

0

2

BCS America 311.11097

SCREW TE M6 X 45

$1.49

$

In Stock, only 2 left!

0

3

BCS America 311.11150

SCREW TE M8 X 12

$

$

Currently unavailable

4

BCS America 311.12089

SCREW M6 X 25

$1.49

$

In Stock, only 3 left!

0

5

BCS America 31112090

SCREW TE M6 X 16

$0.99

$

In Stock, only 4 left!

0

6

BCS America 311.12091

SCREW M6 X 40

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 311.12092

SCREW M6 X 35

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 311.12154

SCREW TE M8 X 40

$1.99

$

In Stock, only 4 left!

0

9

BCS America 31211040

NUT M4

$0.99

$

In Stock, only 2 left!

0

10

BCS America 31211060

NUT M6

$0.99

$

In Stock, Qty 8

0

11

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

12

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

13

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

14

BCS America 314.11043

FLAT WASHER 4.3

$0.99

$

In Stock, Qty 8

0

15

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

16

BCS America 314.23043

LOCK WASHER B 4.3

$0.99

$

In Stock, Qty 6

0

17

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

18

BCS America 34211040

PIN, LOCKING 4 X 20

$1.49

$

Usually ships in 5-8 days

0

19

BCS America 552.48038

SHEATH STOP OF MOTOR STOP

$7.49

$

In Stock, only 1 left!

0

20

BCS America 552.48041

MOTOR STOP LEVER

$24.99

$

In Stock, only 3 left!

0

21

BCS America 552.48284

LEVER DIFFERENTIAL LOCKING

$13.99

$

In Stock, only 1 left!

0

22

BCS America 561.48037

LEVER STOP FOR MOTOR STOP

$3.49

$

Usually ships in 5-8 days

0

23

BCS America 56148040

CLUTCH LEVER

$32.99

$

Usually ships in 5-8 days

0

24

BCS America 561.48285

PIN

$20.99

$

In Stock, only 1 left!

0

25

BCS America 561.48286

DRILLED PIN

$22.99

$

In Stock, only 1 left!

0

26

BCS America 56148470

LEVER

$32.99

$

In Stock, only 1 left!

0

27

BCS America 561.50361

LEVER SPACER

$4.99

$

In Stock, only 1 left!

0

28

BCS America 580.02429

CLAMP, CABLE

$5.99

$

In Stock, only 2 left!

0

29

BCS America 580.02538

LEVER, ACCELERATOR

$34.99

$

In Stock, only 1 left!

0

30

BCS America 580.42167

END, SHEATH

$2.99

$

In Stock, only 2 left!

0

31

BCS America 58042200

PIN, CABLE CLAMP

$6.49

$

Usually ships in 5-8 days

0

32

BCS America 580.42202

SCREW, ADJUSTING M8

$6.99

$

In Stock, only 1 left!

0

33

BCS America 58048000

GRIP

$7.49

$

Usually ships in 5-8 days

0

34

BCS America 580.48002

CABLE CLAMP

$3.99

$

In Stock, only 1 left!

0

35

BCS America 580.48009

STOP SWITCH

$32.99

$

In Stock, only 1 left!

0

36

BCS America 58048010

SWITCH SPRING

$2.99

$

Usually ships in 5-8 days

0

37

BCS America 580.48011

SWITCH CABLES

$4.49

$

Usually ships in 5-8 days

0

38

BCS America 580.48012

WIRE, SHEATH 1850 GAS

$29.99

$

In Stock, only 2 left!

0

39

BCS America 580.48039

MOTOR STOP LEVER SPRING

$26.99

$

Usually ships in 5-8 days

0

40

BCS America 580.49507

SHEATH CABLE

$20.99

$

Usually ships in 5-8 days

0

41

BCS America 580.49669

SHEATH CABLE

$26.99

$

Usually ships in 5-8 days

0

42

BCS America 58049670

SHEATH CABLE

$30.99

$

In Stock, only 1 left!

0

43

BCS America 580.50345

LEVER SPRING

$3.49

$

In Stock, only 1 left!

0

44

BCS America 58051670

LEVER HOOK

$5.49

$

Usually ships in 5-8 days

0

45

BCS America 581.47704

ADJUSTING SCREW

$9.49

$

Usually ships in 5-8 days

0

46

BCS America 581.50313

BARREL

$11.99

$

Usually ships in 5-8 days

0

47

BCS America 590.48003

SUPPORT FOR ACME STOP SWITCH

$

$

Currently unavailable

48

BCS America 590.48469

COUPLING FOR DOUBLE LEVER

$54.24

$

Usually ships in 5-8 days

0

49

BCS America 590.48481

HANDLEBAR

$

$

Currently unavailable
