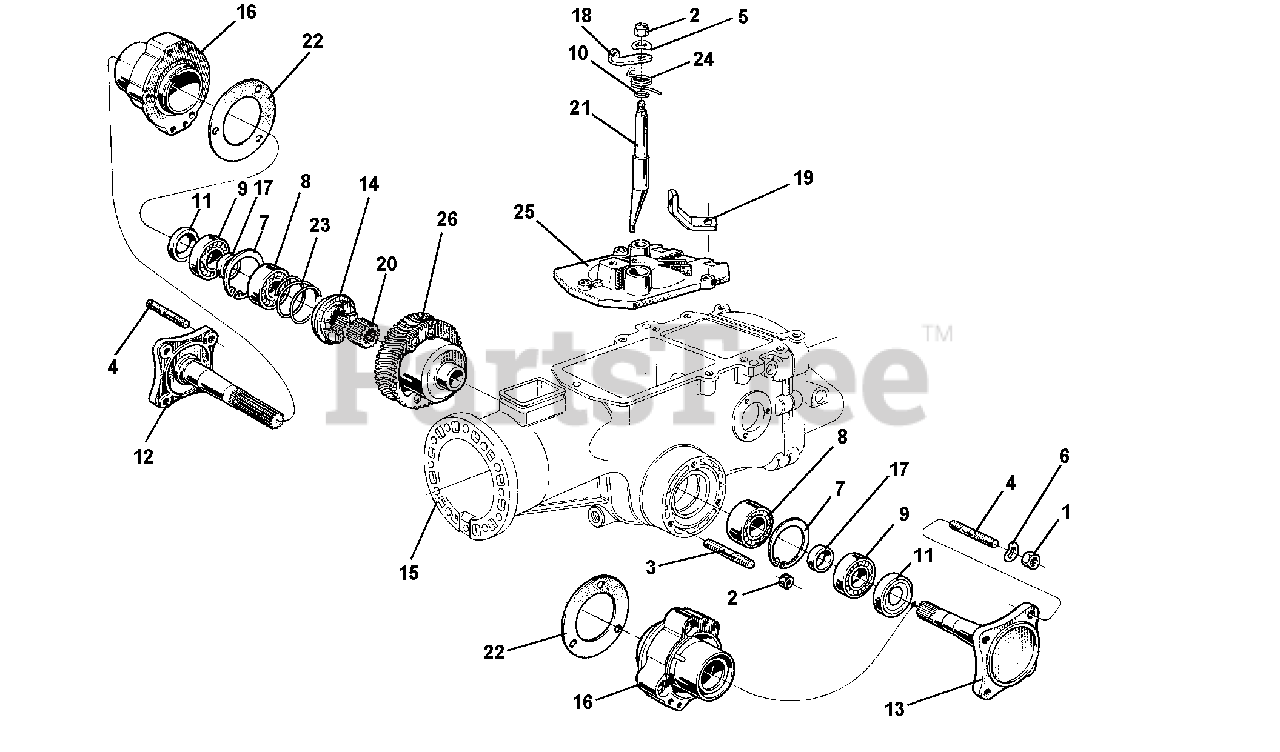

735 - BCS America Two-Wheeled Tractor Differential (SN: 40000 & Above) Parts Diagram

Two-Wheeled Tractor

Differential (SN: 40000 & Above) Parts Diagram

  • Title

1

BCS America 31211100

NUT M10

$1.49

$

In Stock, only 3 left!

0

2

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

3

BCS America 31312080

STUD M8 X 46 X 20 X 12

$1.99

$

In Stock, only 1 left!

0

4

BCS America 313.12102

STUD M10 X 40 X 22 X 14

$2.49

$

In Stock, only 4 left!

0

5

BCS America 314.11084

WASHER, FLAT 8.4

$0.99

$

In Stock, only 4 left!

0

6

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

7

BCS America 351.11047

CIRCLIP, INTERN. D 47

$1.99

$

In Stock, only 1 left!

0

8

BCS America 371.11202

BEARING 20 X 52 X 15 6304

$

$

Currently unavailable

9

BCS America 371.11253

BEARING 25 X 47 X 12 6005

$15.99

$

Usually ships in 5-8 days

0

10

BCS America 38111400

O-RING 2056 14.00 X 1.78

$0.99

$

Usually ships in 5-8 days

0

11

BCS America 382.13002

SEAL, OIL 30 X 40 X 7 STANDARD

$7.99

$

In Stock, only 1 left!

0

12

BCS America 524.43852

HALF AXLE RIGHT LONG

$311.99

$

Usually ships in 5-8 days

0

13

BCS America 524.43853

HALF AXLE LEFT SHORT

$293.99

$

Usually ships in 5-8 days

0

14

BCS America 524.48182

COUPLING

$125.99

$

Usually ships in 5-8 days

0

15

BCS America 531.48055

CASING 5 SPEEDS GEARBOX

$

$

Currently unavailable

16

BCS America 532.43851

HUB FOR HALF AXLE

$121.99

$

Usually ships in 5-8 days

0

17

BCS America 561.43865

RING FOR HALF AXLE

$38.99

$

Usually ships in 5-8 days

0

18

BCS America 56143880

LEVER RELEASE

$18.99

$

Usually ships in 5-8 days

0

19

BCS America 561.43883

CONTRAST DIFFERENTIAL SHEATH

$14.99

$

Usually ships in 5-8 days

0

20

BCS America 564.43857

SPACER FOR DIFFERENTIAL

$64.99

$

Usually ships in 5-8 days

0

21

BCS America 564.43871

ROD

$111.99

$

Usually ships in 5-8 days

0

22

BCS America 580.43855

JOINT GASKET

$6.49

$

In Stock, only 3 left!

0

23

BCS America 580.43874

SPRING

$3.99

$

Usually ships in 5-8 days

0

24

BCS America 580.43881

SPRING

$7.99

$

Usually ships in 5-8 days

0

25

BCS America 590.43876

COVER DIFFERENTIAL

$

$

Currently unavailable

26

BCS America 592.48175

DIFFERENTIAL DS Z 49

$1215.99

$

Usually ships in 5-8 days

0
