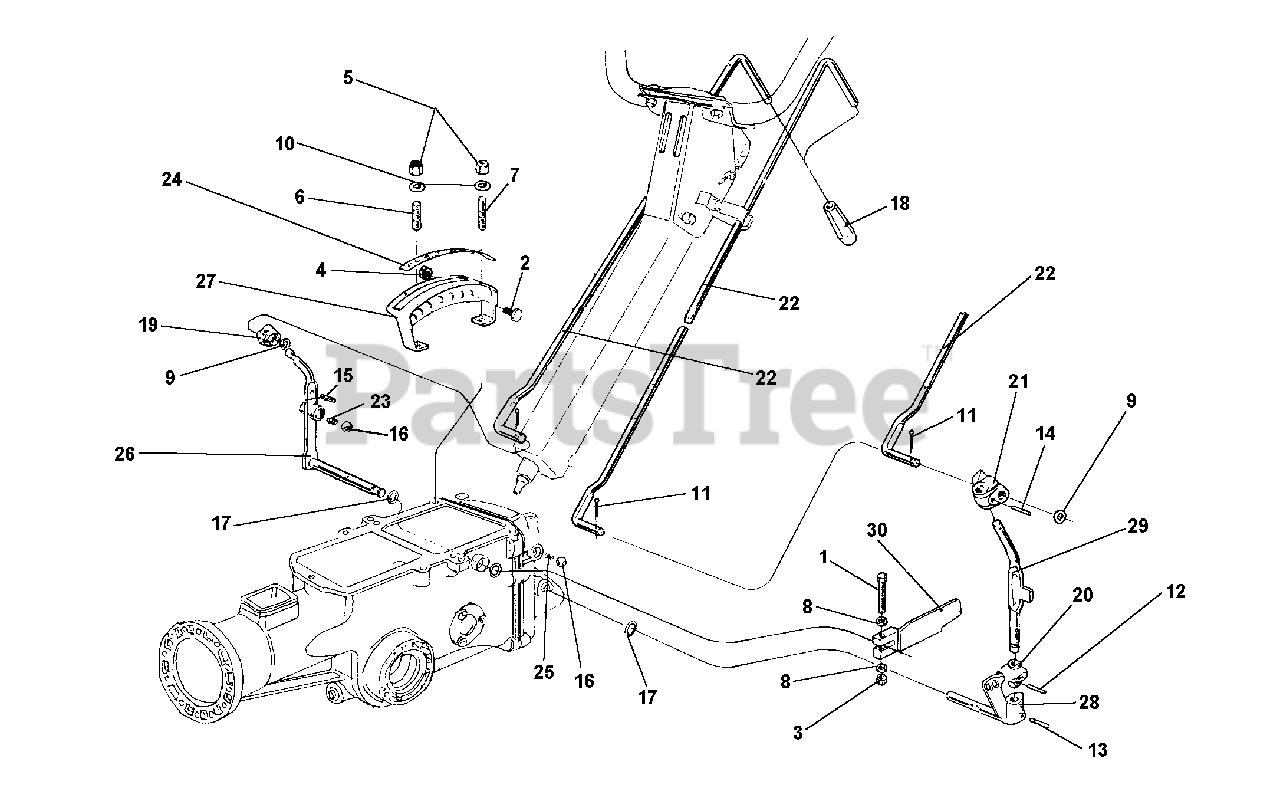

735 - BCS America Two-Wheeled Tractor Controls (SN: 95000 & Above) Parts Diagram

Two-Wheeled Tractor

Controls (SN: 95000 & Above) Parts Diagram

  • Title

1

BCS America 311.12091

SCREW M6 X 40

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12148

SCREW M8 X 14

$1.49

$

In Stock, Qty 10

0

3

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

4

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

5

BCS America 312.41085

NUT

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 313.12083

STUD M8 X 38 X 14 X 20

$2.99

$

In Stock, Qty 6

0

7

BCS America 313.12083

STUD M8 X 46 X 16 X 16

$2.99

$

In Stock, Qty 6

0

8

BCS America 314.11064

FLAT WASHER 6.4

$0.99

$

In Stock, Qty 10

0

9

BCS America 314.11104

WASHER P10.5 X 18

$0.99

$

In Stock, Qty 5

0

10

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 7

0

11

BCS America 341.10028

COTTER PIN

$0.99

$

In Stock, only 2 left!

0

12

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 342.13023

SPRING PIN

$1.49

$

Usually ships in 5-8 days

0

14

BCS America 342.13024

LOCKING PIN 4 X 24 SPIRAL

$1.49

$

Usually ships in 5-8 days

0

15

BCS America 342.13025

LOCKING PIN SPIRAL

$1.49

$

In Stock, only 4 left!

0

16

BCS America 379.11532

BALL 15/32 RIV RB-11.906

$1.49

$

In Stock, only 2 left!

0

17

BCS America 381.11191

O-RING 115 11.91 X 2.62

$0.99

$

In Stock, only 1 left!

0

18

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

19

BCS America 552.42528

JOINT, 715, 725, 735

$11.99

$

In Stock, only 2 left!

0

20

BCS America 552.48378

PTO STOP RING

$32.99

$

Usually ships in 5-8 days

0

21

BCS America 552.48379

PTO ARTICULATION

$8.99

$

Usually ships in 5-8 days

0

22

BCS America 56143360

ROD, CONTROL, POWER TILLER

$41.99

$

In Stock, only 1 left!

0

23

BCS America 580.43176

SPRING

$2.49

$

In Stock, only 1 left!

0

24

BCS America 580.43318

SPEED DECAL, 725, 735, 745

$

$

Currently unavailable

25

BCS America 580.48369

PTO SPRING

$45.99

$

Usually ships in 5-8 days

0

26

BCS America 590.48045

GEARBOX LEVER

$156.99

$

Usually ships in 5-8 days

0

27

BCS America 59048050

SPEED QUADRANT, 725, 735, 745

$217.99

$

Usually ships in 5-8 days

0

28

BCS America 590.48372

PTO CONTROL PIN, 715, 725, 735

$60.99

$

Usually ships in 5-8 days

0

29

BCS America 590.48375

PTO CONTROL LEVER

$39.70

$

Usually ships in 5-8 days

0

30

BCS America 590.48381

PTO LOCKOUT, 725, 735

$58.99

$

Usually ships in 5-8 days

0
