73471 (518 xi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Garden Tractor

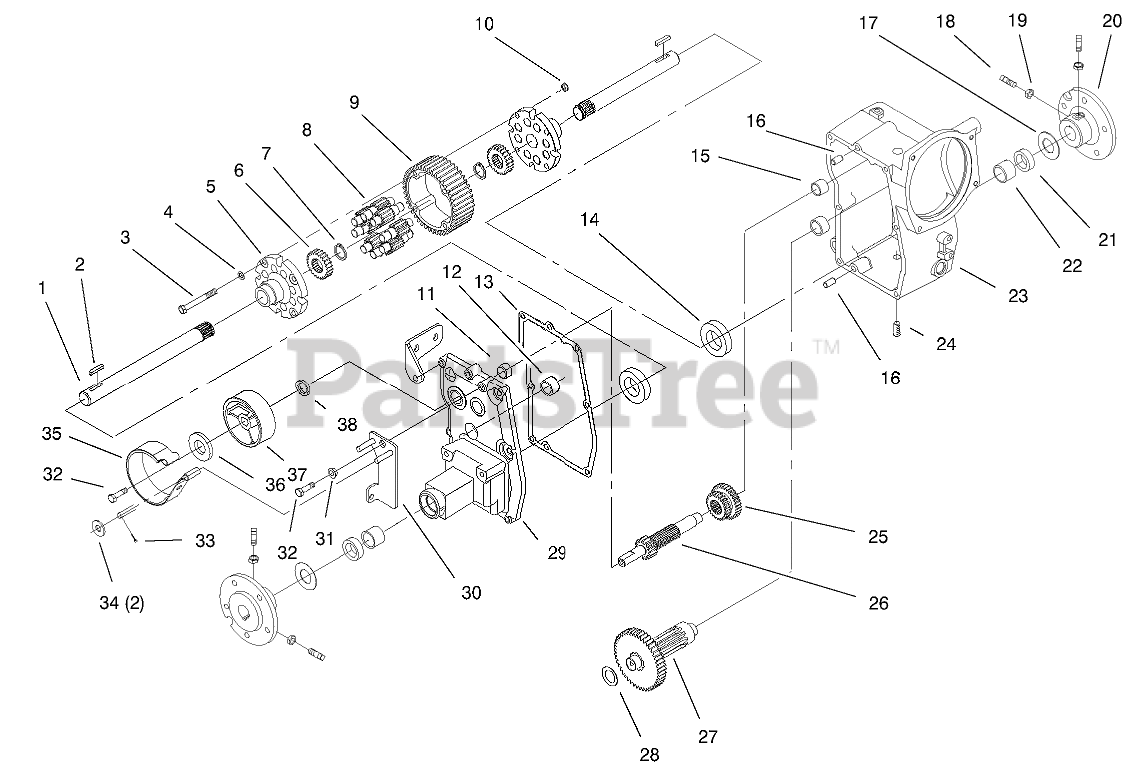

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 79-3340

AXLE-REAR

$

$

Not available

2

$11.99

$

Usually ships in 3-6 days

0

3

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, only 2 left!

0

4

Toro 107374

WASHER

$0.99

$

In Stock, Qty 6

0

5

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

6

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

7

Toro 105876

RING-SNAP

$5.99

$

In Stock, only 2 left!

0

8

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

9

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

10

$6.49

$

In Stock, only 2 left!

0

11

Toro 1540

BEARING-NEEDLE

$40.99

$

Usually ships in 3-6 days

0

12

Toro 94-2021

BEARING-NEEDLE

$

$

Not available

13

Toro 99-5334

GASKET-CASE

$37.99

$

Usually ships in 3-6 days

0

14

Toro 111199

BEARING-BALL

$125.99

$

In Stock, only 3 left!

0

15

Toro 1529

BEARING-NEEDLE

$50.99

$

Usually ships in 3-6 days

0

16

Toro 108363

PIN-LOCATING

$

$

Not available

17

Toro 106826

WASHER-THRUST

$14.99

$

In Stock, only 1 left!

0

18

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

19

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

20

Toro 105763-03

HUB-WHEEL

$191.99

$

In Stock, only 1 left!

0

21

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

22

Toro 9416

BEARING

$81.99

$

Usually ships in 3-6 days

0

23

Toro 94-2001-03

CASE-LH

$

$

Not available

24

Toro 99-8551

PLUG-PIPE

$5.49

$

Usually ships in 3-6 days

0

25

Toro 94-2008

GEAR-SLIDING

$

$

Not available

26

Toro 94-2007

SHAFT-BRAKE

$

$

Not available

27

Toro 94-2006

GEAR ASM

$933.99

$

Usually ships in 3-6 days

0

28

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

29

Toro 94-2002-03

CASE-RH

$

$

Not available

30

Toro 94-2019-03

Arm-PIVOT, Brake

$

$

Not available

31

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

32

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

33

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

35

Toro 94-2419

BAND-BRAKE

$122.99

$

Usually ships in 3-6 days

0

36

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

37

Toro 94-2009

DRUM-BRAKE

$

$

Not available

38

Toro 253-44

SEAL-OIL

$29.99

$

In Stock, only 1 left!

0
