73470 (518 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) MANUAL STEERING AND TILT ASSEMBLY Parts Diagram

Garden Tractor

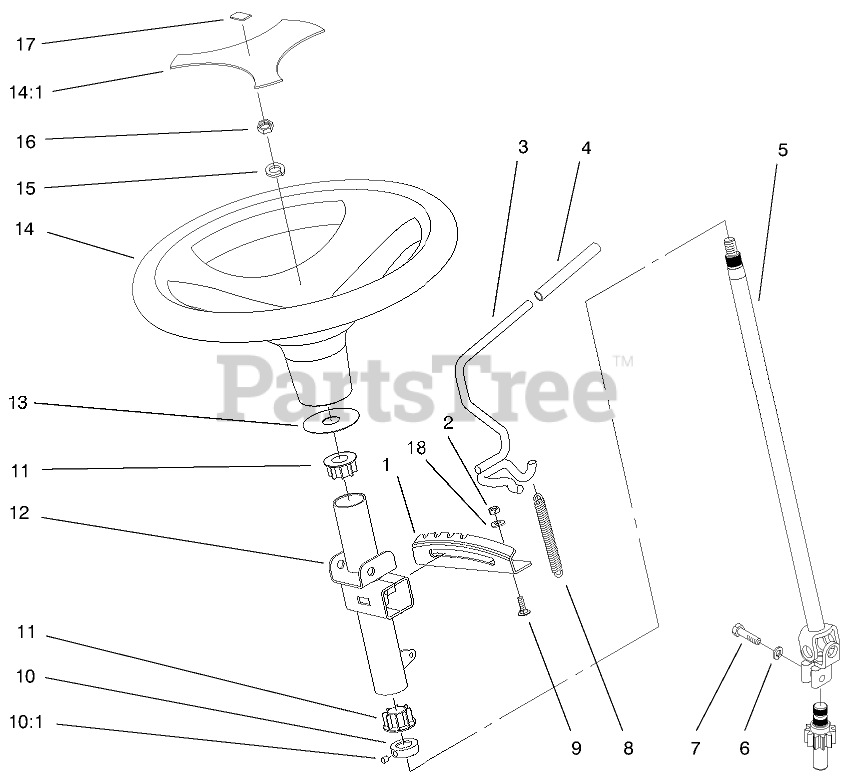

MANUAL STEERING AND TILT ASSEMBLY Parts Diagram

  • Title

1

Toro 94-2382

BRACKET-DETENT

$21.99

$

Usually ships in 3-6 days

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 95-3964

LEVER-TILT

$

$

Not available

4

Toro 92-6798

CAP-ROD, TILT

$4.99

$

In Stock, only 2 left!

0

5

Toro 94-2047

SHAFT - STEERING

$

$

Not available

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

8

Toro 95-3805

SPRING

$14.99

$

In Stock, Qty 8

0

9

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

10

Toro 111383

COLLAR

$6.99

$

In Stock, only 1 left!

0

10:1

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

11

Toro 93-1146

BUSHING-STEERING, UPPER

$11.99

$

In Stock, only 1 left!

0

12

Toro 94-2450-03

Column-Manual
(Superseded to 94-2450)

$

$

Not available

13

Toro 94-2025

WASHER-PLASTIC

$2.49

$

Usually ships in 3-6 days

0

14

Toro 98-1471

Steering Wheel ASM (Only On: 73470)

$148.99

$

Usually ships in 3-6 days

0

14

Toro 98-1474

Steering Wheel ASM (Only On: 73540, 73541)

$

$

Not available

14:1

Toro 98-7211

Cover ASM (Incl. Ref. #17)

$44.99

$

Usually ships in 3-6 days

0

15

Toro 48-8070

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

16

Toro 3277-1

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
