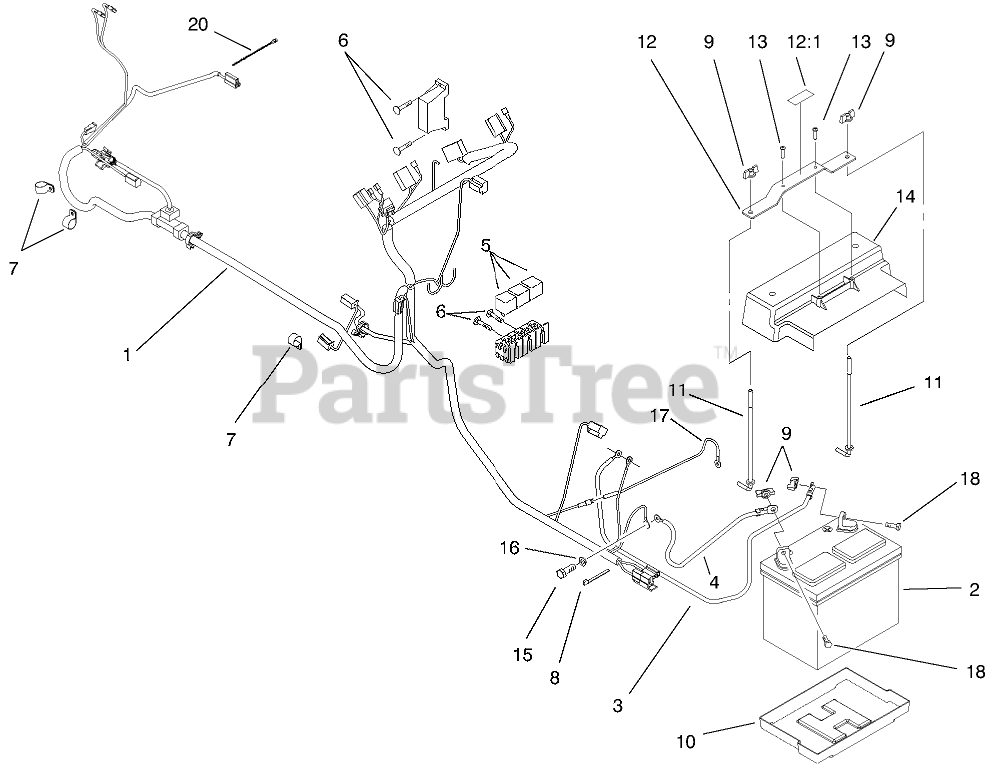

73470 (518 xi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) ELECTRICAL ASSEMBLY (MODELS 73540 & 73541 ONLY) Parts Diagram

Garden Tractor

ELECTRICAL ASSEMBLY (MODELS 73540 & 73541 ONLY) Parts Diagram

  • Title

1

Toro 94-7604

Harness-Main (Only On: 73540, 73541)

$

$

Not available

2

Toro 94-1867

Battery (Only On: 73540, 73541)
(Superseded to 104-2492)

$

$

Not available

3

Toro 95-7854

Cable-Battery Red (Only On: 73540, 73541)

$40.99

$

Usually ships in 3-6 days

0

4

Toro 95-7873

Cable-Battery Black (Only On: 73540, 73541)

$

$

Not available

5

Toro 98-7249

Relay (Only On: 73540, 73541)

$22.99

$

In Stock, Qty 6

0

6

Toro 12-5450

Screw-Thread Forming (Only On: 73540, 73541)

$9.99

$

In Stock, only 2 left!

0

7

Toro 98-2358

Clamp-R (Only On: 73540, 73541)

$

$

Not available

8

Toro 614249

Tie Strap (Only On: 73540, 73541)

$1.49

$

In Stock, Qty 6

0

9

Toro 32103-22

Nut-Wing (Only On: 73540, 73541)

$2.99

$

In Stock, Qty 17

0

10

Toro 106948

Tray-Battery (Only On: 73540, 73541)

$11.99

$

In Stock, only 1 left!

0

11

Toro 95-4042

Hold Down-Battery (Only On: 73540, 73541)

$

$

Not available

12

Toro 98-5056

Strap ASM (Only On: 73540, 73541)

$

$

Not available

12:1

Toro 93-1265

Decal-Hot (Only On: 73540, 73541)

$8.49

$

Usually ships in 3-6 days

0

13

Toro 94-4496

Screw (Only On: 73540, 73541)

$1.49

$

In Stock, Qty 20+

0

14

Toro 95-4044

Shield-Battery (Only On: 73540)

$

$

Not available

14

Toro 95-4092

Shield-Battery (Only On: 73541)

$37.99

$

Usually ships in 3-6 days

0

15

Toro 33104-020

Screw-HHF (Only On: 73540, 73541)

$3.49

$

In Stock, only 3 left!

0

16

Toro 3253-4

Washer-Lock (Only On: 73540, 73541)

$0.99

$

In Stock, Qty 20+

0

17

Toro 98-1492

Wire (Only On: 73540, 73541)

$

$

Not available

18

Toro 321-4

Screw-HH (Only On: 73540, 73541)

$1.49

$

In Stock, Qty 20+

0

20

Toro 98-5072

Tie-Cable (Only On: 73540, 73541)

$

$

Not available
