73450 (315-8) - Toro Garden Tractor (SN: 270000001 - 270999999) (2007) FUEL TANK ASSEMBLY Parts Diagram

Garden Tractor

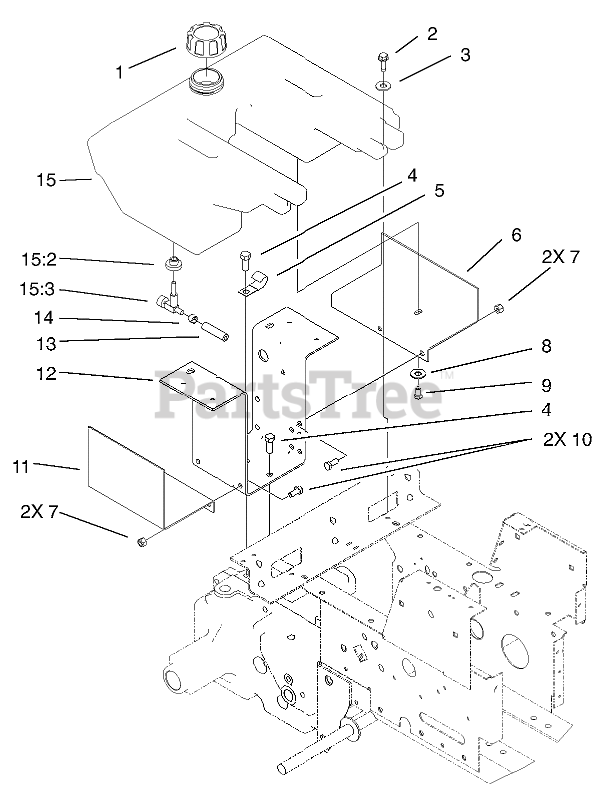

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

2

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

3

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

4

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

5

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

6

Toro 94-6693-03

BRACKET-SUPPORT

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 94-6692-03

BRACKET-SUPPORT

$53.99

$

Usually ships in 3-6 days

0

12

Toro 79-4990-03

SUPPORT-FENDER

$126.99

$

Usually ships in 3-6 days

0

13

Toro 92-9514

HOSE-FUEL

$

$

Not available

14

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

15

Toro 106234

TANK-FUEL

$456.99

$

Usually ships in 3-6 days

0

15:2

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

15:3

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0
