73450 (315-8) - Toro Garden Tractor (SN: 250000001 - 250999999) (2005) FENDER, SEAT AND TAIL LIGHT / REFLECTOR ASSEMBLY Parts Diagram

Garden Tractor

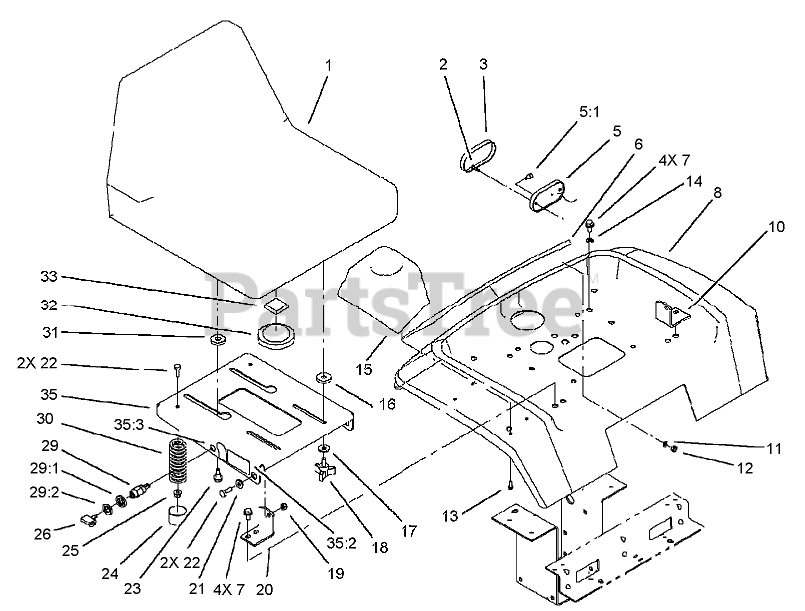

FENDER, SEAT AND TAIL LIGHT / REFLECTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 104-2463

SEAT
(Superseded to 119-8887)

$599.99

$

Usually ships in 3-6 days

0

2

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

3

Toro 112564

LENS-TAIL LIGHT

$9.99

$

In Stock, Qty 5

0

5

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

5:1

Toro 109045

LIGHT BULB

$

$

Not available

6

Toro 106-5846

DECAL-FENDER, REAR

$32.99

$

Usually ships in 3-6 days

0

7

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

8

$

$

Not available

10

Toro 79-0970-03

BRACKET-PIVOT, LH

$

$

Not available

11

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, Qty 10

0

13

Toro 32144-20

SCREW-HHFTF

$2.99

$

In Stock, only 4 left!

0

14

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

15

Toro 104-0838

HOLDER-CUP

$

$

Not available

16

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

17

Toro 94-2869

WASHER

$1.99

$

In Stock, Qty 5

0

18

$20.99

$

In Stock, Qty 5

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 79-0950-03

BRACKET-PIVOT, RH

$

$

Not available

21

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

22

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 92-6986

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

24

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 13

0

25

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

26

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 20+

0

29

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 7

0

29:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

29:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

30

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

31

Toro 92-6750

SPACER-NYLON

$16.99

$

Usually ships in 3-6 days

0

32

Toro 100-3524

SWITCH-SEAT

$62.99

$

In Stock, Qty 11

0

33

Toro 104-2488

FOAM-SWITCH, SEAT

$7.99

$

Usually ships in 3-6 days

0

35

Toro 104-5027

SUPPORT SEAT ASM

$

$

Not available

35:2

Toro 99-2985

DECAL-DANGER

$

$

Not available

35:3

Toro 99-5339

DECAL

$

$

Not available
