73450 (315-8) - Toro Garden Tractor (SN: 250000001 - 250999999) (2005) BLOWER HOUSING ASSEMBLY KOHLER CH15S-44533 Parts Diagram

Garden Tractor

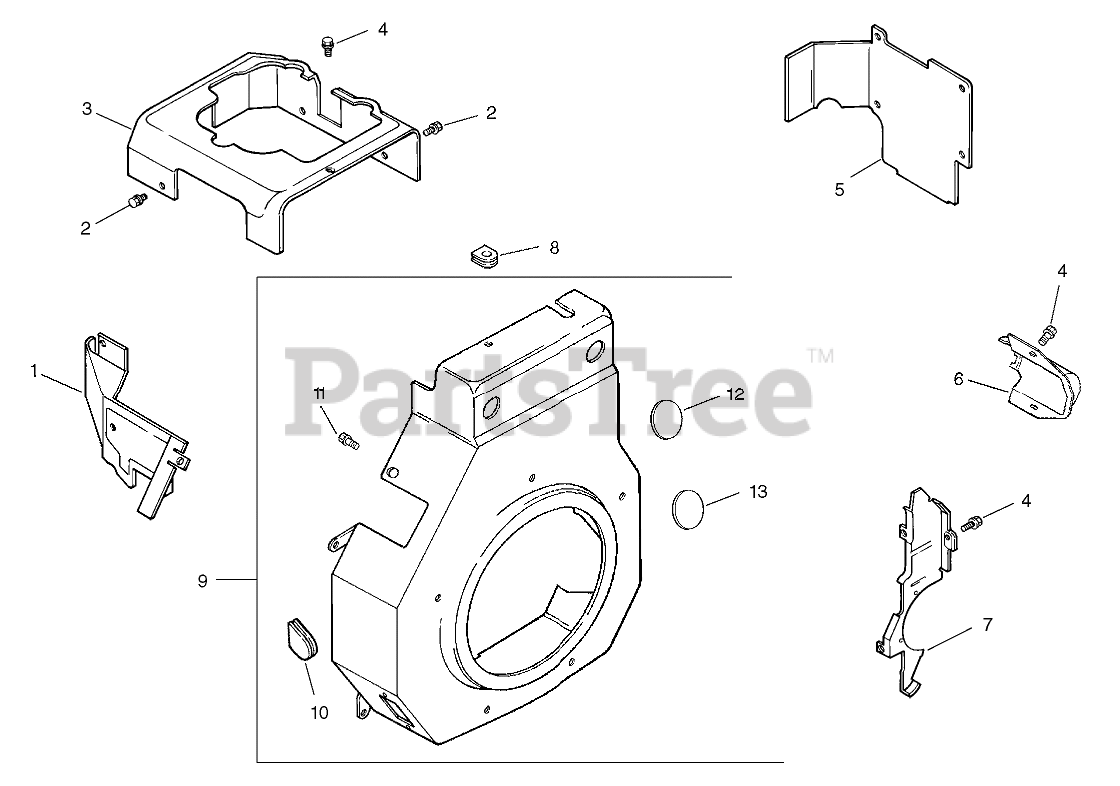

BLOWER HOUSING ASSEMBLY KOHLER CH15S-44533 Parts Diagram

  • Title
1

Kohler 12 063 10-S

Baffle-Side, Intake

Note: Obtain parts from www.kohlerplus.com

$47.99

$

Usually ships in 2-5 days

0

2

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

3

Kohler 12 063 08-S

Baffle-Head, Cylinder

Note: Obtain parts from www.kohlerplus.com

$48.99

$

Usually ships in 2-5 days

0

4

Kohler M-550010-S

Screw-HF (M5x0.8x10)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, only 1 left!

0

5

Kohler 12 063 19-S

Baffle-Cylinder

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

Kohler 12 096 39-S

Cover-Starter

Note: Obtain parts from www.kohlerplus.com

$24.99

$

Usually ships in 2-5 days

0

7

Kohler 12 146 07-S

Plate-Housing, Blower

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

8

Kohler 12 313 03-S

Grommet-Spark Plug

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler 12 027 72-S

Blower Housing Kit (Includes 10-13)

Note: Obtain parts from www.kohlerplus.com

$231.99

$

Usually ships in 2-5 days

0

10

Kohler 12 313 05-S

Grommet

Note: Obtain parts from www.kohlerplus.com

$21.99

$

Usually ships in 2-5 days

0

11

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

12

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

Usually ships in 2-5 days

0

13

Kohler 25 139 17-S

Plug-Button (1/2)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 146 21-S

Decal-15 HP
(Superseded to 12 113 112-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

Kohler 12 146 21-S

Decal-15 HP
(Superseded to 12 113 112-S)

Note: Not illustrated

$

$

Not available
