73450 (315-8) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) HOODSTAND AND CONSOLE ASSEMBLY Parts Diagram

Garden Tractor

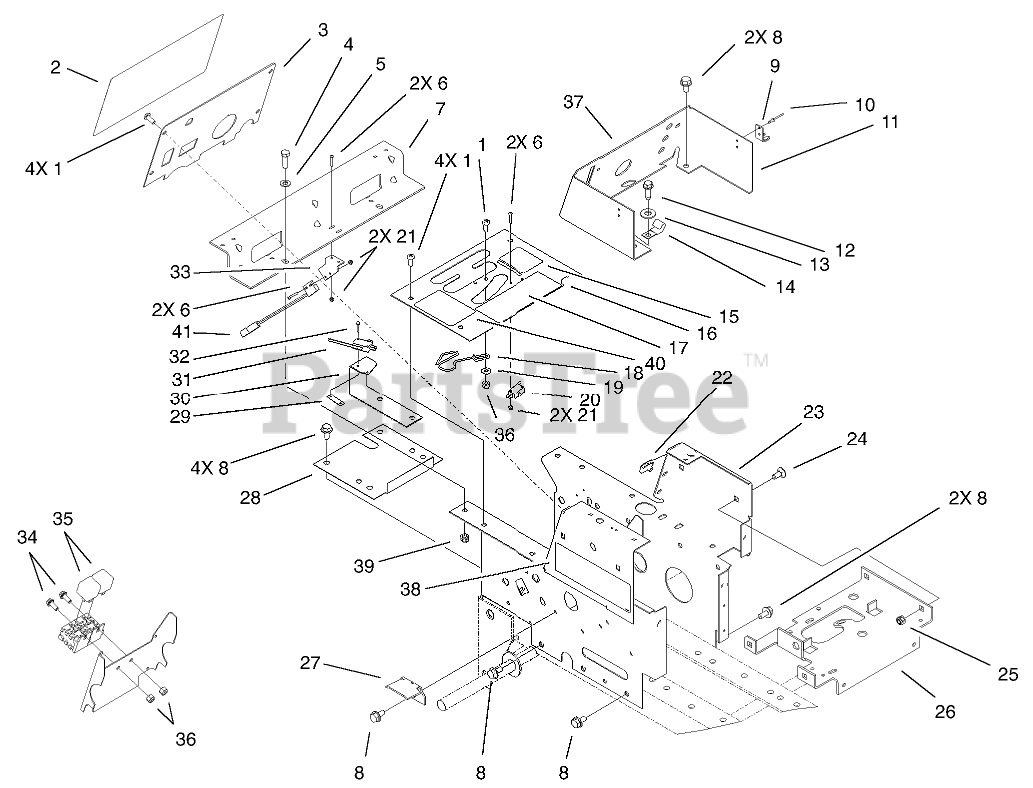

HOODSTAND AND CONSOLE ASSEMBLY Parts Diagram

  • Title
1

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

2

Toro 104-4324

DECAL-DASH, LOWER

$

$

Not available

3

Toro 104-2470-03

PLATE-HOODSTAND

$

$

Not available

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 9109484

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

7

Toro 95-7665-03

BRACKET-FENDER

$65.99

$

In Stock, only 1 left!

0

8

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

9

Toro 117343

KEEPER-LATCH

$4.99

$

In Stock, only 2 left!

0

10

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

11

Toro 95-7670-03

CONSOLE

$111.99

$

Usually ships in 3-6 days

0

12

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

13

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

15

Toro 111510

DECAL-PARKING, BRAKE

$8.99

$

Usually ships in 3-6 days

0

16

Toro 99-8026-03

PLATE-SHIFT

$49.99

$

Usually ships in 3-6 days

0

17

Toro 92-8946

DECAL-DANGER

$8.49

$

Usually ships in 3-6 days

0

18

Toro 99-8028

SPRING-SHIFT CONTROL

$

$

Not available

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

21

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

22

$2.99

$

In Stock, Qty 20+

0

23

Toro 95-7676-03

HOODSTAND ASM

$

$

Not available

24

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 78-3010-03

SUPPORT-BATTERY

$

$

Not available

27

Toro 88-2170-03

BRACKET-BELT SUPPORT

$

$

Not available

28

Toro 106250-03

COVER-DUST

$

$

Not available

29

Toro 3290-354

NUT-SPEED

$10.99

$

Usually ships in 3-6 days

0

30

Toro 99-8049-03

BRACKET-SWITCH, REVERSE

$

$

Not available

31

Toro 88-9931

SWITCH-MICRO

$45.99

$

In Stock, only 2 left!

0

32

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

33

Toro 95-7666

BRACKET-SWITCH, REED

$

$

Not available

34

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

35

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

37

Toro 99-5341

DECAL-CONSOLE

$38.99

$

Usually ships in 3-6 days

0

38

Toro 105-1481

DECAL-MODEL 315-8
(Superseded to 106-5844)

$

$

Not available

39

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

40

Toro 111534

DECAL-SHIFT PATTERN

$9.49

$

Usually ships in 3-6 days

0

41

Toro 95-7669

SWITCH-REED, MAGNETIC

$

$

Not available
