73450 (315-8) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) FUEL SYSTEM ASSEMBLY KOHLER MODEL CH15S-44533 Parts Diagram

Garden Tractor

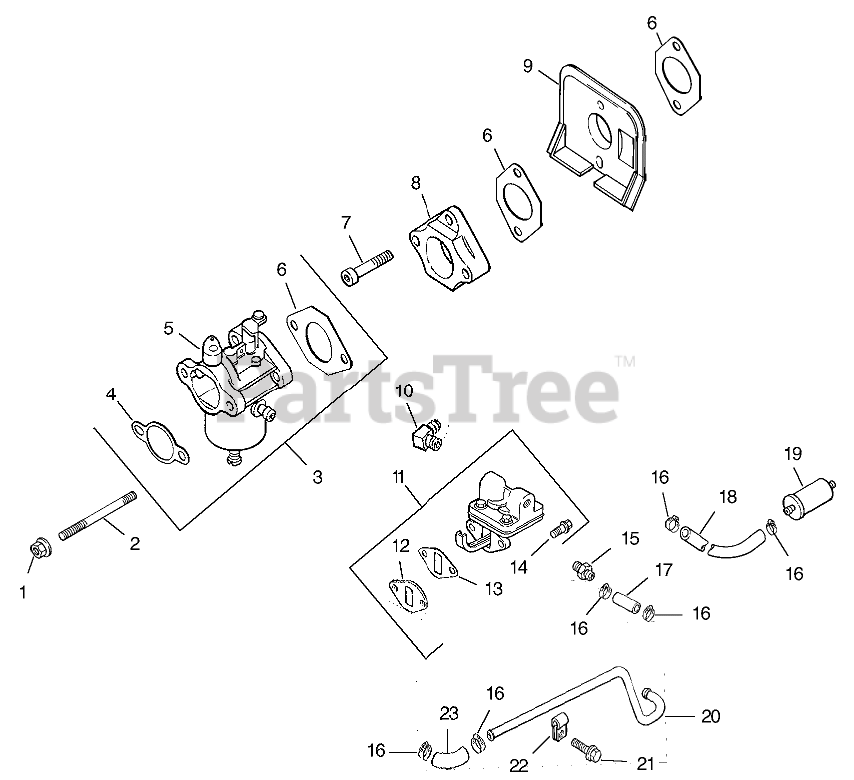

FUEL SYSTEM ASSEMBLY KOHLER MODEL CH15S-44533 Parts Diagram

  • Title

1

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

$4.49

$

In Stock, Qty 11

0

2

Kohler M-629116-S

Stud (M6x1.0x116)

$3.49

$

In Stock, only 2 left!

0

3

Kohler 12 853 75-S

Kit, carburetor w/gaskets (Includes 4-6 qty 1])

$

$

Not available

4

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

$2.49

$

In Stock, Qty 8

0

5

Kohler 12 053 75

Carburetor ASM

$

$

Not available

6

Kohler 12 041 01-S

Gasket-Carburetor

$2.49

$

In Stock, Qty 16

0

7

Kohler M-644035-S

Screw-Hex Socket Cap, M6x1.0x35

$2.99

$

Usually ships in 2-5 days

0

8

Kohler 12 029 04-S

Adapter-Carburetor

$

$

Not available

9

Kohler 12 265 04-S

Deflector-Heat
(Superseded to 12 265 08-S)

$9.49

$

In Stock, only 2 left!

0

10

Kohler 25 155 02-S

Connector-Hose, 90 Deg

$14.99

$

In Stock, only 1 left!

0

11

Kohler 12 559 01-S

Pump assembly, fuel (Includes 12-14)
(Superseded to 12 559 02-S)

$48.99

$

In Stock, only 2 left!

0

12

Kohler 12 112 05-S

Spacer-Pump, Fuel

$7.49

$

In Stock, only 2 left!

0

13

Kohler 25 041 09-S

Gasket-Pump, Fuel
(Superseded to 25 041 10-S)

$3.49

$

In Stock, only 1 left!

0

14

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

15

Kohler 25 326 03-S

Connector-Hose, Straight

$3.99

$

In Stock, only 1 left!

0

16

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

17

Kohler 12 353 01-S

Line-Fuel (1-1/4in)

$

$

Not available

18

Kohler 25 353 02-S

Line-Fuel (3in)

$

$

Not available

19

Kohler 25 050 02-S

Filter-Fuel
(Superseded to 25 050 07-S)

$10.99

$

In Stock, Qty 9

0

20

Kohler 12 353 11-S

Line-Fuel, Metal

$

$

Not available

21

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

$4.49

$

In Stock, only 3 left!

0

22

Kohler X-728-1-S

Clip

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 12 353 07-S

Line-Fuel, 90 Deg. Elbow
(Superseded to 25 111 36-S)

$7.49

$

In Stock, only 1 left!

0

Kohler 12 757 27-S

Kit, carburetor overhaul w/gaskets (Includes carburetor gasket, air filter base gasket, throttle adjust screw, gasket, float assembly, float pin, float valve, chamber set plug, float chamber gasket, welch plug, & throttle adjust screw spring)

Note: Not illustrated

$93.99

$

In Stock, only 3 left!

0

Kohler 12 757 29-S

Kit, choke repair (Includes carburetor gasket, air filter base gasket, valve set screw, E-clip, choke valve, choke return spring, choke lever cap, & choke shaft)

Note: Not illustrated

$

$

Not available

Kohler 12 757 31-S

Kit, gasket replacement (Includes carburetor gasket, air filter base gasket, gasket, & float chamber gasket)

Note: Not illustrated

$28.99

$

Usually ships in 2-5 days

0
