73450 (315-8) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) ENGINE CONTROL ASSEMBLY KOHLER MODEL CH15S-44533 Parts Diagram

Garden Tractor

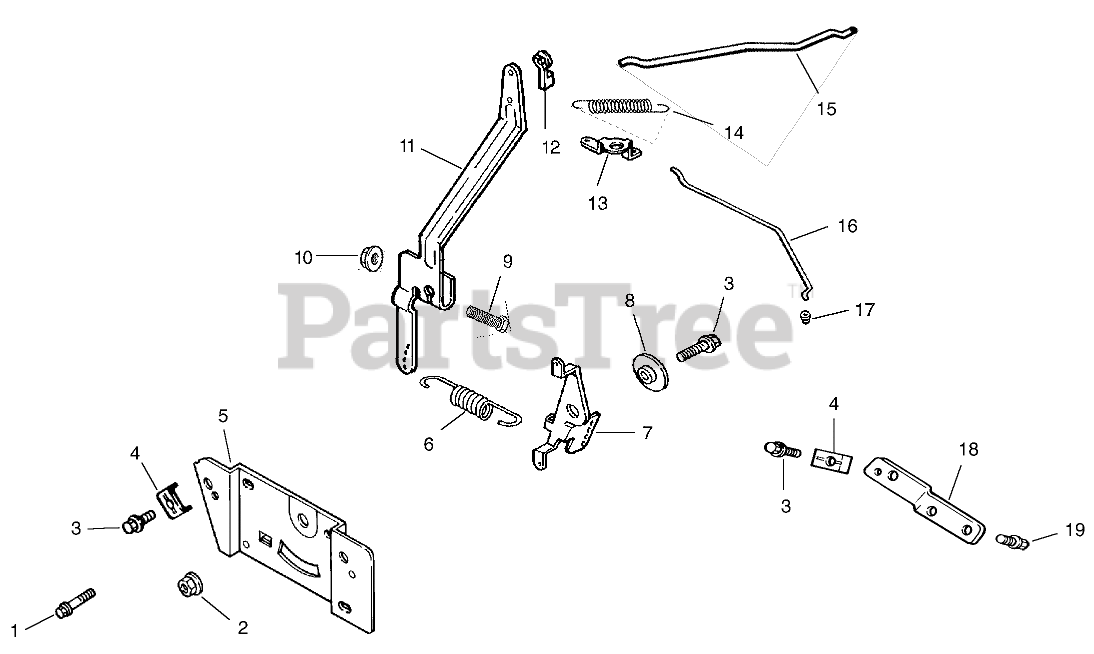

ENGINE CONTROL ASSEMBLY KOHLER MODEL CH15S-44533 Parts Diagram

  • Title

1

Kohler M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)
(Superseded to 25 086 403-S)

$2.49

$

In Stock, only 2 left!

0

2

Kohler M-541050-S

Nut-HF (M5x0.8)

$2.99

$

In Stock, Qty 10

0

3

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Kohler 12 237 01-S

CLAMP-CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

5

Kohler 12 146 05-S

Plate-Control

$

$

Not available

6

Kohler 12 089 17-S

Spring-Governor

$8.49

$

In Stock, Qty 8

0

7

Kohler 12 090 13-S

Lever-Throttle, Inner

$28.99

$

Usually ships in 2-5 days

0

8

Kohler 12 112 07-S

Spacer-Control ASM

$7.99

$

Usually ships in 2-5 days

0

9

Kohler M-642025-S

Screw-Hex Flange, M6x1.0x25

$2.49

$

In Stock, only 1 left!

0

10

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

$4.49

$

In Stock, Qty 8

0

11

Kohler 12 090 19-S

Lever-Governor
(Superseded to 12 090 40-S)

$48.99

$

Usually ships in 2-5 days

0

12

Kohler 25 158 11-S

BUSHING-RETAINING, LINKAGE

$5.99

$

In Stock, only 2 left!

0

13

Kohler 12 090 14-S

Lever-Choke, Upper

$13.99

$

In Stock, only 1 left!

0

14

Kohler 230117-S

Spring-Linkage

$13.99

$

In Stock, only 1 left!

0

15

Kohler 12 079 04-S

Linkage-Throttle

$21.99

$

In Stock, only 1 left!

0

16

Kohler 12 079 08-S

Linkage-Choke, Upper

$12.99

$

In Stock, only 1 left!

0

17

Kohler 25 158 08-S

BUSHING-LINKAGE, THROTTLE

$5.99

$

In Stock, Qty 18

0

18

Kohler 12 126 15-S

Bracket-Choke, Mount

$10.99

$

Usually ships in 2-5 days

0

19

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

$4.49

$

In Stock, only 3 left!

0
